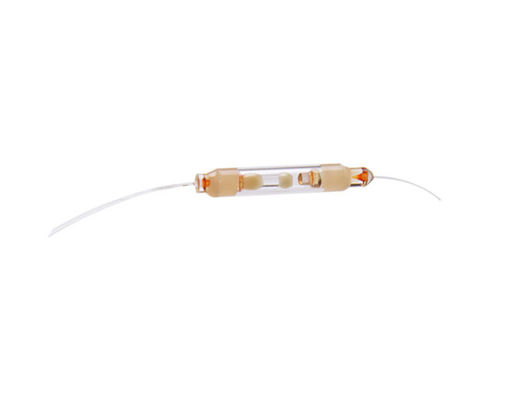

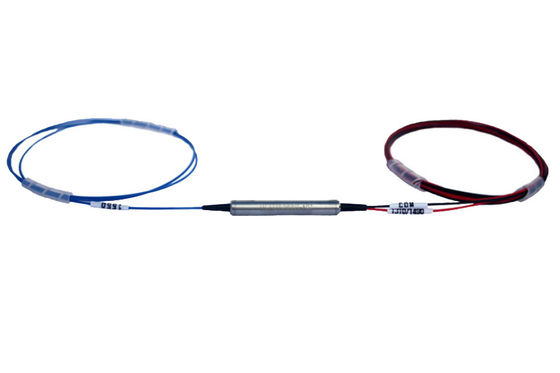

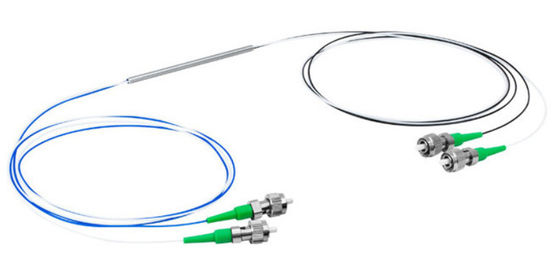

1550nm Pass/980nm Reflect Fiber Optic WDM with Low Insertion Loss and High Channel Isolation

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

wdm in optical fiber

wall mount fiber termination box

Product Description

1550nm Pass / 980nm Reflect Fiber Optic WDM

FWDM Optic Fiber Splitter

The 1550nm Pass/980nm Reflect FWDM (Filter Wavelength Division Multiplexer) utilizes advanced thin-film filter technology to combine or separate light at different wavelengths. This device offers exceptional performance with very low insertion loss, minimal polarization dependence, high isolation, and excellent environmental stability. With high power handling capability achieved through specialized pigtail processing and premium AR coating, this component is ideal for demanding optical applications.

Key Features

Broad Operating Band
High Channel Isolation
Low Insertion Loss
High Reliability and Stability

Primary Applications

EDFA (Erbium-Doped Fiber Amplifiers)
FTTH (Fiber to the Home)
CATV Systems
WDM Networks
Access Networks
Metro WDM Systems
Long Haul WDM Systems
Enterprise Networks
Raman Amplifiers
Fiber Optical Instruments

Technical Specifications

Parameter	Unit	Value
Channel spacing	GHz	200
Wavelength range		C- or L-band ITU channels 186.6 to 196.1 THz
Passband	GHz	≥+/- 33
Transmission passband ripple	dB	≤0.3
Transmission insertion loss	dB	≤1.0
Reflection passband ripple	dB	≤0.2
Reflection insertion loss	dB	≤0.4
Transmission isolation (adj channel)	dB	≥30
Transmission isolation (non-adj channel)	dB	≥50
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.2
Polarization mode dispersion	ps	≤0.2
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≥500
Tensile Load	N	≥5
Operating temperature range		-5 to 70°C
Storage temperature range		-40 to +85°C
Fiber type		SMF-28e
Package dimension	mm	5.5 x 34mm

Note: All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.

Dimensions Drawing

Spectral Plot

Ordering Information

Product	Channel Frequency	Tube	Fiber length	Connector
200G DWDM Filter	ITU Grid in C-band	1=250um fiber 2=900um fiber 3=Others	1=0.5+/-0.1m 2=1.0+/-0.1m 3=others	0=No connector 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC

Frequently Asked Questions

Are you the real factory?

Yes, we are the manufacturer with 16 years of industry experience.

What is your fiber brand?

We use YOFC FiberHome fiber brands.

What are your main products?

Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor and indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and various optical patch cords (SC, LC, FC, ST, MTP, MPO).

What is your product quality guarantee period?

20 years guarantee for fiber optic cable products.

Do you have certificates for raw materials?

We maintain long-term relationships with qualified ISO9001 ROHS certified raw material suppliers.

What is your delivery time?

Within 48 hours for standard fiber optic products.

What is your minimum order quantity (MOQ)?

MOQ for Fiber Optic Cable Patch Panel is 10 sets. No MOQ required for fiber optic patch cords as we maintain stock for standard types.

Do you have distributors in other countries?

We currently sell directly to customers and offer factory pricing.

What payment methods do you accept?

For large orders: T/T (bank transfer). For small orders: T/T and PayPal are acceptable.

What are your shipping and delivery options?

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air, or by courier services - all options available.
