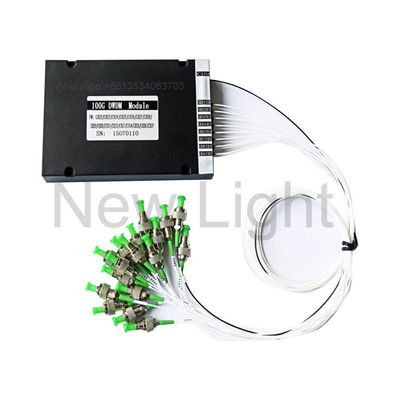

8 Channel 1470-1610nm WDM Module with Corning SMF-28 Ultra Fiber for High Performance Mux Demux Applications

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

wdm in optical fiber

wall mount fiber termination box

Product Description

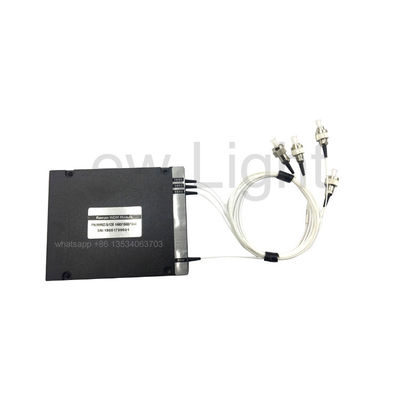

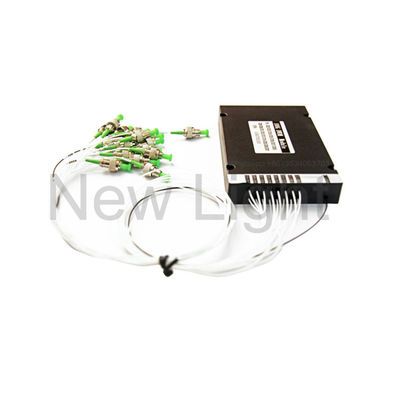

4/8/16/18 Channel WDM CWDM DWDM Mux Demux Module, FWDM Splitter Device

Description

Dense wavelength division multiplexer (DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, operating within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength with low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability.

Key Features

Low Insertion Loss
High Channel Isolation
Optical path epoxy free
Excellent thermal stability and reliability
Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

Applications

DWDM Network
Add/Drop System
CATV Fiberoptic System
Metro/Access Network
Fiber Optical Amplifier
Access networks
Metro WDM systems
Long haul WDM systems
Enterprise networks

Technical Specifications

Item	Unit	Parameters
Channel spacing	GHz	200
Wavelength range		C- or L-band ITU channels 186.6 to 196.1 THz
Passband	GHz	≥+/- 33
Transmission passband ripple	dB	≤0.3
Transmission insertion loss	dB	≤1.0
Reflection passband ripple	dB	≤0.2
Reflection insertion loss	dB	≤0.4
Transmission isolation (adj channel)	dB	≥30
Transmission isolation (non-adj channel)	dB	≥50
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.2
Polarization mode dispersion	ps	≤0.2
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≥500
Tensile Load	N	≥5
Operating temperature range		-5 to 70
Storage temperature range		-40 to +85 0C
Fiber type		SMF-28e
Package dimension	mm	5.5 x 34mm

Note: All specifications are based on devices without connectors, and guaranteed over wavelength, polarization and temperature.

Dimensions Drawing (mm)

Spectral Plot (dB)

Ordering Information

Product	Channel Frequency	Tube	Fiber length	Connector
200G DWDM Filter	ITU Grid In C-band	1=250um fiber 2=900um fiber 3=Others	1=0.5+/-0.1m 2=1.0+/-0.1m 3=others	0=No connector 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC

Frequently Asked Questions

1. Are you the real factory?

Yes, we are the real factory with 16 years history.

2. What is your fiber brand?

Fiber brands including YOFC FiberHome.

3. What is your main products?

Fiber optic patch panel, fiber MPO&MTP cassette, MPO&MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH Drop cables ADSS, indoor armored patch cords fiber cable, optical patch cords SC LC FC ST MTP MPO optical patch cords.

4. Product quality guarantee period?

20 years Guarantee for fiber optic cable.

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers.

6. What is your delivery time?

Within 48 hours for normal kinds of fiber optic products.

7. MOQ: what is your minimum quantity?

MOQ for Fiber Optic Cable Patch Panel 10 set. There is no MOQ required for fiber optic patch cords, as there's stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now we sell our products to customers directly and factory price could be offered.

9. Payment

For large orders: T/T. For small orders: T/T and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL) by air or by courier services, any of which is optional.
