Fiber Optic Patch Panel

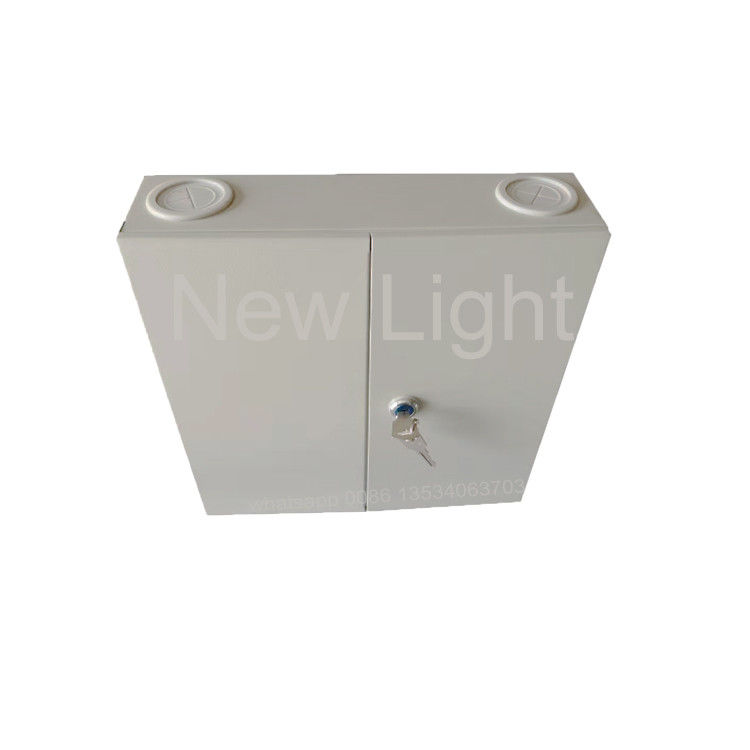

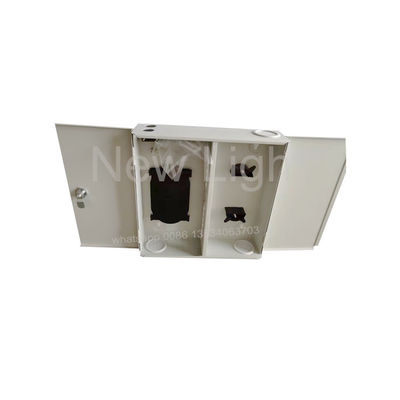

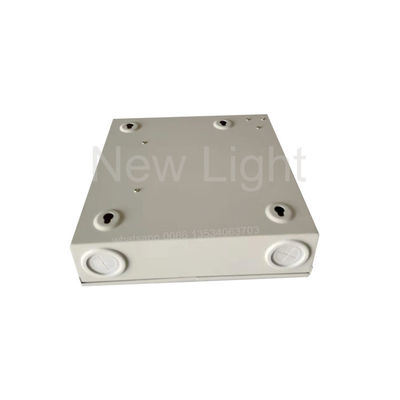

48 Port Waterproof Wall Mount Fiber Optic Distribution Box and Patch Panel for Outdoor and Indoor Use

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

48 Port Waterproof Wall Mount Fiber Optic Distribution Box and Patch Panel for Outdoor and Indoor Use

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

48 PORT SC LC ST FC Fiber Optic Distribution Frame / Waterproof Fiber Optic Distribution Box

48 PORT SC LC ST FC wall mount waterproof Fiber Optic Distribution Box designed for optical access network terminals, providing reliable optical distribution and fusion capabilities.

Product Overview

Capacity: 12-72 ports
Material: Stainless steel or cold rolled plate with electrostatic plastic-spray surface
Packing: PP bags + carton or customized packaging

Key Features

Metal construction with attractive design and convenient operation
Anti-ageing and corrosion-resistant SMC compound materials
IP65-level waterproof rating per GB4208 standard for outdoor use
Combines optical fusion, storage, and distribution functions
Fusion trays can be turned over or pulled out for external operation
Easy capacity expansion and maintenance with angled adapter installation
Low transmission loss suitable for common and ribbon fiber cables
Cold-roll steel box with splicing, distribution units and panel
Various panel plates to fit different adapter interfaces (FC, SC, ST, LC)
Special design organizes excess fiber cords and pigtails efficiently
No-interval design for easy management and operation

Environmental Specifications

Working temperature: -25°C to 55°C
Relative humidity: ≤85% (30°C)
Air pressure: 70-106KPa
Standard working wavelength: 850, 1,310, 1,550nm
Connector loss: ≤0.5dB
Back wave loss: PC≥40dB, UPC≥50dB, APC≥60dB
Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc
Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC

Product Specifications

Model	Fiber Quantity	Dimensions	Weight
ODF-24B	24	30308.5cm	5kg

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders.

Can you quote FOB price?

We typically ship via air courier. EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment and 100% testing before delivery.

What's your lead time?

We have three factories in China with quick turnaround times. Standard products are often in stock.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for some products with freight prepaid by customer.

How can I order?

What's your payment term?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
