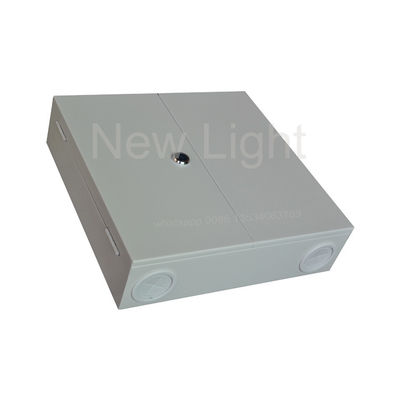

24 Cores Wall Mounted Fiber Optic Distribution Box with Cold-Roll Steel for Indoor Outdoor Use

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

Metal Wall Mounted 24 Cores Cabinet Indoor Outdoor Fiber Optic Distribution Box

This Metal Fiber Optic Distribution Box is specifically engineered for FTTH (Fiber to the Home) and FTTB (Fiber to the Building) applications in both indoor and outdoor environments. Designed for fiber optic splicing and distribution, it provides reliable protection for fiber optic splices against environmental factors.

The distribution box features an indoor/outdoor design suitable for wall-mounting and hole-mounting installations, making it ideal for telecommunication equipment rooms and network equipment rooms.

Key Features

Constructed with cold-roll steel box housing for superior durability

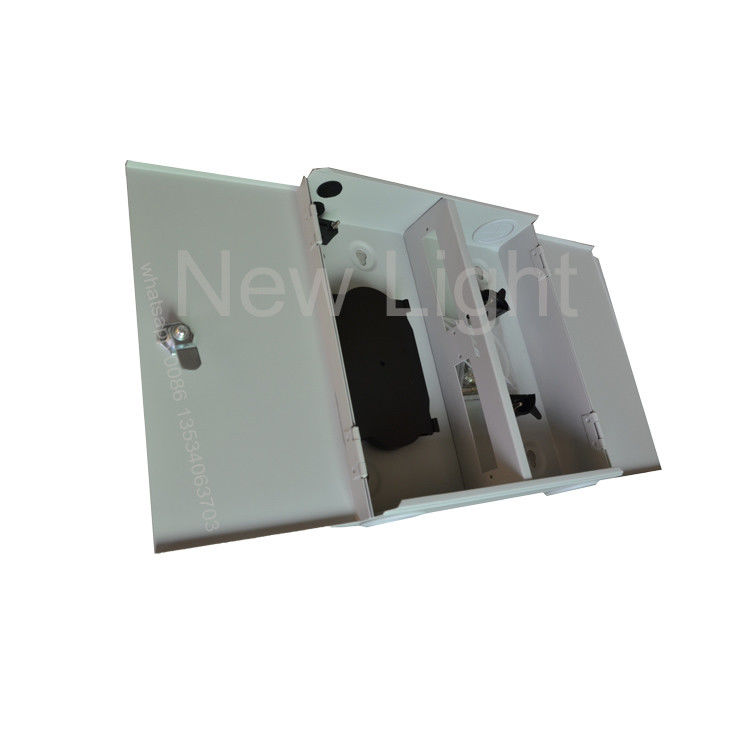

Integrated splicing unit, distribution unit, and adapter panel
Multiple panel plates to accommodate various adapter interfaces
Compatible with FC, SC, ST, and LC adapters
Suitable for both single fiber and ribbon & bundle fiber cables
Specialized design ensures organized management of excess fiber cords and pigtails
Book-style tray design for easy installation and maintenance
Curved diameter meets international standards
Electro-static spray painting for enhanced appearance and protection

Technical Specifications

Working temperature: -25°C to 55°C
Relative humidity: ≤85% at 30°C
Air pressure: 70-106 KPa
Standard working wavelengths: 850, 1,310, 1,550 nm
Connector loss: ≤0.5 dB
Back wave loss: PC≥40dB, UPC≥50dB, APC≥60dB
Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc
Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC

Product Model Specifications

Model	Fiber Quantity	Dimensions	Weight (kg)
ODF-24B	24	30308.5cm	5

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What is the price?

Pricing varies based on quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

While we can provide FOB quotes, most shipments are typically sent via air courier (DHL, TNT, UPS, FEDEX). For large quantities, we can arrange sea freight. EXW or CFR pricing is often more suitable.

How is your quality control?

Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What is your lead time?

We operate three factories in China. For fiber optic patch cords, we can process 5,000 pieces within 2-3 working days. Regular products are typically in stock.

What is your warranty policy?

Patch cords carry a 2-year warranty against non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

What is your packaging?

We use international export packaging and can customize with your logo upon request.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request a sample?

Free samples are available for adapters, attenuators, patch cords, and pigtails with freight prepaid by the customer. For high-value products, sample charges apply but are refundable with orders.

How do I place an order?

Contact us with product specifications and quantity
We provide pricing and lead time
Upon acceptance, we issue a Proforma Invoice
Production begins after payment receipt
We confirm shipping details and provide tracking
We prioritize long-term partnership satisfaction

What are your payment terms?

We accept T/T, Western Union, Paypal, and MoneyGram. For large orders, 50% deposit with balance due before delivery.

For detailed specifications, custom requirements, or volume pricing, please contact our sales team for personalized assistance.
