48 Port Fiber Optic Distribution Box with Cold-Roll Steel Construction for Wall-Mount Applications

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

Fiber Optic 48 Port Distribution Box

Professional fiber optic terminal box designed for FTTH access systems, providing reliable connection and protection for fiber cables in telecommunications, CATV, data communications, and local area networks.

Product Overview

This fiber optic distribution box is specifically engineered for connecting and protecting fiber cables in FTTH (Fiber To The Home) applications. Suitable for installation in communications rooms and various network environments, it supports wall or desktop mounting with IP65 protection rating.

Key Features

Industry standard user interface constructed from high-impact plastic
Accommodates 1x8 PLC splitter (miniature)
Anti-UV protection with IP65 rating for outdoor durability
Supports up to 8 FTTH drops
Wall and pole mountable design
2 inlet ports and 8 outlet ports configuration
Cold-roll steel box construction with splicing and distribution units
Compatible with FC, SC, ST, LC adapters
Suitable for single fiber, ribbon, and bundle fiber cables
Organized fiber cord and pigtail management system

Technical Specifications

Environmental Conditions

Working temperature: -25°C to 55°C
Relative humidity: ≤85% at 30°C
Air pressure: 70-106 KPa
Standard working wavelengths: 850, 1,310, 1,550 nm
Connector loss: ≤0.5 dB
Back wave loss: PC≥40dB, UPC≥50dB, APC≥60dB
Resistance to voltage: ≥3kV DC / 1min (no puncture or arc)
Insulation resistance: ≥20,000 MΩ / 500V DC

Product Models

Model	Fiber Quantity	Dimensions	Weight (kg)
ODF-24B	24	30308.5 cm	5

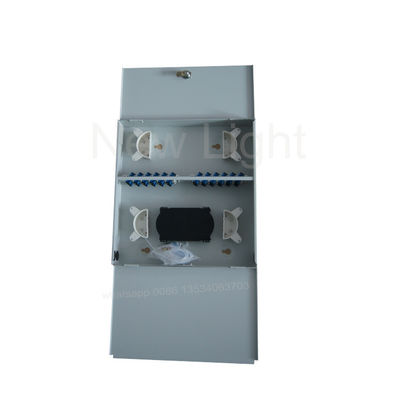

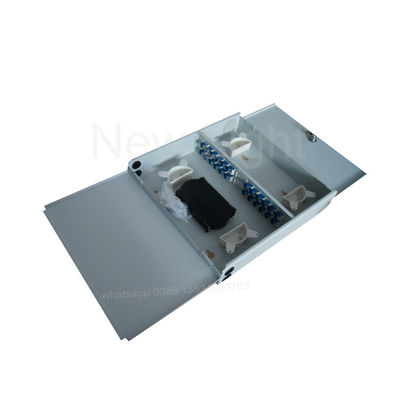

Product Image

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the price?

Pricing varies by quantity. We provide competitive pricing for bulk orders.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size, but can provide FOB quotes for large sea shipments.

How is your quality control?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China with stock availability. Standard patch cord orders: 2-3 working days for 5,000 pieces.

What is your warranty policy?

2-year warranty for patch cords covering non-artificial damage. Repair services available for artificial damage with customer-paid freight.

What is your packaging?

International export packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adapters, attenuators, patch cords, and pigtails with customer-paid freight. Sample charges apply for high-value products.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice. Production begins after payment confirmation.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
