1U Rack Mounted 48 Port LC Fiber Optic Patch Panel for OM3/OM4 Multimode Fiber Management

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

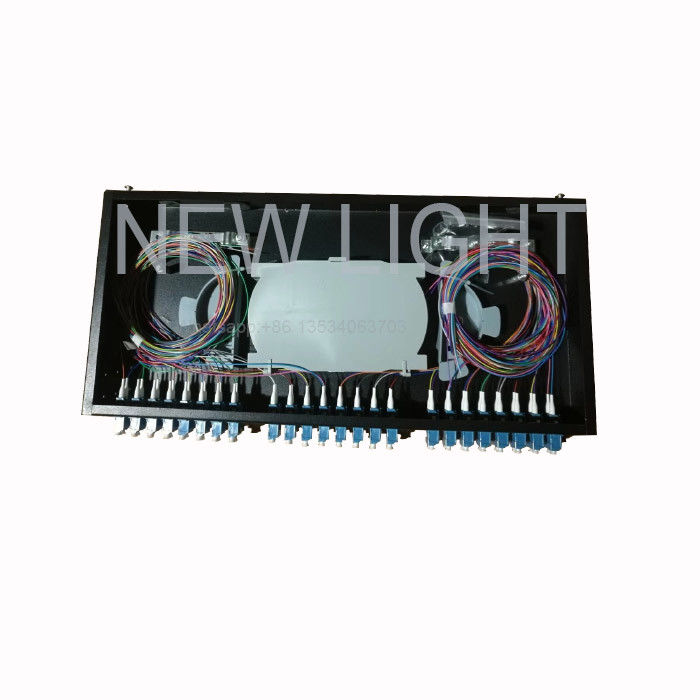

Rack Mounted 48 Port LC Fiber Patch Panel 1U 48 Fiber OM3 / OM4 Multimode

This 1U rack-mounted 48-port LC fiber patch panel provides an efficient solution for organizing and managing high-density fiber optic connections in data centers and server rooms. Designed for OM3/OM4 multimode fiber applications, it ensures optimal cable management and future scalability.

Product Overview

A patch panel is essential for maintaining organized cabling infrastructure when connecting multiple devices to networking hardware. This mounted hardware assembly features multiple ports to manage incoming and outgoing fiber cables, facilitating easier moves, additions, and changes to your cabling system while planning for future growth.

Key Features

Constructed from cold-roll steel with electrostatic painting
ABS plastic tray interior with 12-24 cores per tray

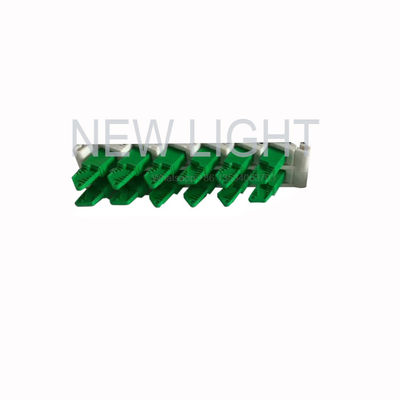

Multiple adapter plate options: FC, SC, LC, ST
Compatible with single fiber, bundle & ribbon fiber cables
19-inch sliding-out design for easy operation
4 fiber cable entry ports at rear side
Available in 12, 24, 48, and 96 core configurations
White or black color options
Compact, lightweight design with reasonable structure
Front marking for easy identification and operation

Applications

Local Area Networks
CATV Networks
FTTx Systems
Wide Area Networks
Test Instruments

Technical Specifications

Parameter	Specification
Material	Steel and ABS plastic
Appearance	Black finish
Working Temperature	-40℃ to +60℃
Design Standards	TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1
Curvature Radius	≥40mm
Extra Loss in Splice Tray	None
Lateral Pressure Resistance	500N
Resistance	750N

Product Configuration

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5kg

Ordering & Shipping Information

Trade Terms: FOB, CIF, CFR
Payment Methods: T/T, Western Union, PayPal
Minimum Order: 1 piece
Shipping Port: Shenzhen
Lead Time: Within 5 working days after payment
Shipping Methods: Express, Air
Packaging: Carton/wooden package

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity?

MOQ is 1 piece, though larger quantities receive more competitive pricing.

What's the price?

Pricing varies by quantity. Contact us with your requirements for our best pricing.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

We maintain three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces, with regular products in stock.

What's your warranty?

Patch cords include 2-year warranty for non-artificial damage since delivery.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Samples are available for adapters, attenuators, patch cords, and pigtails (freight paid by customer).
