Industrial 3U 144 Fiber 9/125 Single Mode Fiber Optic Patch Panel for High-Density Breakout Cabling

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

Industrial Breakout Fiber Optic Patch Panel 3U 144 Fiber 9/125 Single Mode

This 3U 144 fiber 9/125 single mode industrial fiber optic patch panel is specifically designed for high-density 40G-10G and 100G-25G breakout cabling. As an agile and scalable solution, it mitigates cable clustering, improves airflow, and delivers an aesthetically appealing installation for data center environments.

Product Features

Construction & Design

Cold-roll steel construction with electrostatic painting
ABS plastic tray interior, accommodating 12-24 cores per tray
Standard 19-inch sliding-out design for easy operation
Lightweight with reasonable structure for space efficiency
Available in white or black finish

Connectivity & Compatibility

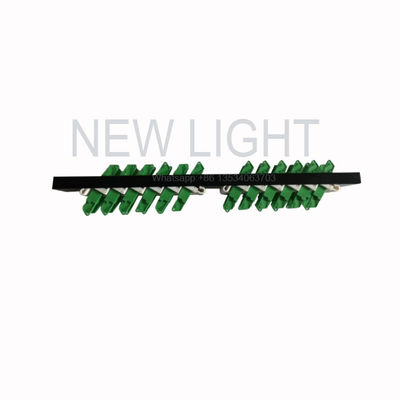

Multiple adapter plate options: FC, SC, LC, ST interfaces
Simplex and duplex FC, LC, SC, ST adapters available
Capacity options: 12, 24, 36, 48, 72, 96, 144 cores
4 fiber cable entry ports at rear side
Suitable for single fiber, bundle & ribbon fiber cables

Operational Benefits

Front marking on plates for easy identification and operation
Reasonable cable management design for organized routing
Compatible with 19" and 23" standard distribution frames
Compact design for space-saving installations
Easy management and operation with slide-out drawer

Applications

Local Area Network (LAN)
CATV Network
FTTx System
Wide Area Network (WAN)
Test Instruments

Technical Specifications

Physical Properties

Parameter	Specification
Material	Steel and ABS plastic
Finish	Black appearance
Working Temperature	-40℃ to +60℃
Curvature Radius	≥40mm
Lateral Pressure Resistance	500N
Resistance	750N

Design Standards

TIA/EIA568.C
ISO/IEC 11801
EN50173
IEC60304
IEC61754
EN-297-1

Product Dimensions

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5kg

Packing & Delivery Information

Trade Terms

Trade Terms: FOB, CIF, CFR, etc.
Price Terms: T/T, Western Union, Paypal
Payment Terms: T/T in advance
Minimum Order Quantity: 1 piece
Port: Shenzhen
Lead Time: Within 5 working days after receiving payment
Shipment Methods: Express, Air
Samples: Available (not free)
Packaging: Carton/wooden package

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your minimum order quantity?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit orders incur higher costs.

Q: How is your product quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production and quality control equipment, with all products undergoing 100% testing before delivery.

Q: What's your lead time?

A: We operate three factories in China specializing in fiber optic products. For fiber optic patch cords, we can process 5,000 pieces within 2-3 working days, with regular products available from stock.

Q: What is your warranty policy?

A: Patch cords come with a 2-year warranty from delivery date covering non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

Q: Do you offer OEM/ODM services?

A: Yes, as a manufacturer we accept OEM/ODM orders and can sign confidentiality agreements.

Manufacturing Excellence

With three specialized factories in China and comprehensive quality control processes, we deliver reliable fiber optic solutions with competitive pricing and fast turnaround times for both standard and custom requirements.
