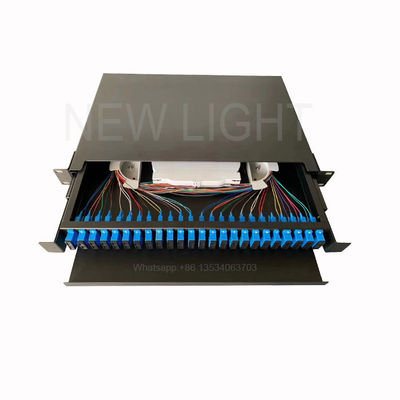

1U 2U 3U 4U LGX Fiber Optic Patch Panel with 12 Fiber Capacity Rack Mountable and Slide-out Tray for Easy Access

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

LGX Fiber Panels & High Density Patch Panels

1U, 2U, 3U, and 4U LGX fiber panels and high density patch panel solutions designed for efficient fiber management in data centers and network installations.

Product Overview

These preloaded fiber panels feature LC duplex adapters and simple splice management kits with adjustable working trays that can be set to 10 or 45 degrees for optimal maintenance access when installed in fiber optic rack cabinets.

Available in 1U configurations supporting 12, 24, or 48 fiber single mode or multimode connections with SC/LC adapters. The drawer-type design facilitates easy fiber installation and storage, compatible with both single mode and multimode fiber cabling systems.

Key Features

LGX compatible design for universal integration
Rack mountable 19-inch standard configuration
Accommodates 12 LGX adapter panels for 12, 24, or 36 duplex LC port configurations
Cold-roll steel construction with electrostatic painting
ABS plastic trays supporting 12-24 cores per tray

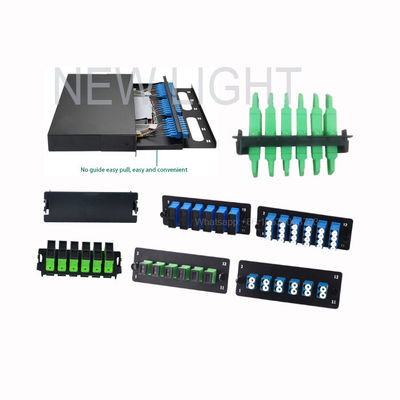

Multiple adapter plate options: FC, SC, LC, ST
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables

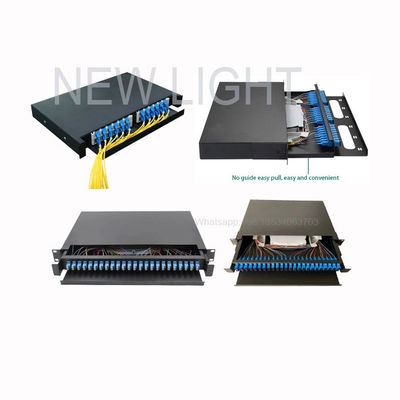

Slide-out tray design for easy access and operation
4 fiber cable entry ports at rear side
Simplex and duplex FC, LC, SC, ST adapters available
Capacity options: 12, 24, 48, 96 cores
White or black color options
Improved design ensures fiber optic cable bend radius ≥40mm
Powder coated finish with smoked Lexan front cover
Front and rear hinged doors for complete access

Applications

Local Area Networks
CATV Networks
FTTx Systems
Wide Area Networks
Test Instruments

Technical Specifications

Working Temperature: -40℃ to +60℃

Design Standards: TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1

Curvature Radius: ≥40mm

Extra Loss in Splice Tray: None

Lateral Pressure Resistance: 500N

Resistance: 750N

Product Specifications

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5

Ordering & Shipping Information

Trade Terms: FOB, CIF, CFR, etc.

Price Terms: T/T, Western Union, PayPal

Payment Terms: T/T in advance

Minimum Order Quantity: 1 piece

Port: Shenzhen

Lead Time: Within 5 working days after receiving payment

Shipment Methods: Express, Air

Sample Availability: Yes (not free)

Packaging: Carton/wooden package

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity?

MOQ is 1 piece, though we recommend larger quantities for better pricing as single unit orders incur higher costs.

How is pricing determined?

Pricing varies by quantity. We provide our best pricing upon receiving your quantity requirements, with competitive rates for larger orders.

Can you quote FOB prices?

Yes, though most shipments are via air courier due to product size. We recommend providing specifications and quantity for comprehensive freight and product pricing. EXW or CFR pricing is often more practical.

How is your product quality?

We manufacture to IEC and European standards in near dust-free environments using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your production lead time?

With three specialized factories in China, we maintain stock of regular products and can fulfill urgent orders. Patch cord production: 2-3 working days for 5,000 pieces.

What warranty do you provide?

Patch cords include 2-year warranty covering non-artificial damage. Artificial damage repairs are free, though customer covers shipping costs.

What packaging do you use?

International export packaging in carton or wooden cases. Custom logo printing available.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adapters, attenuators, patch cords, and pigtails (customer pays shipping). Higher-value products require sample charges refundable with order placement.

How do I place an order?

1. Contact us with product specifications, quantity, and shipping address

2. Receive our quotation with lead time

3. Review and accept proforma invoice

4. We begin production after payment receipt

5. Confirm shipping details and receive tracking information

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. Larger orders: 50% deposit, 50% balance before shipment.
