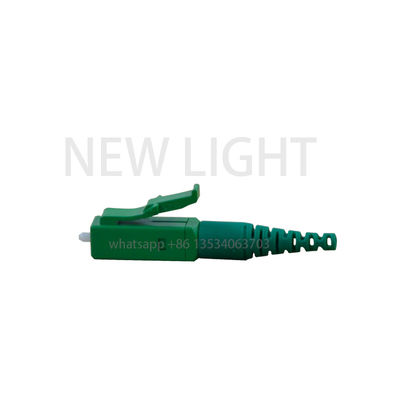

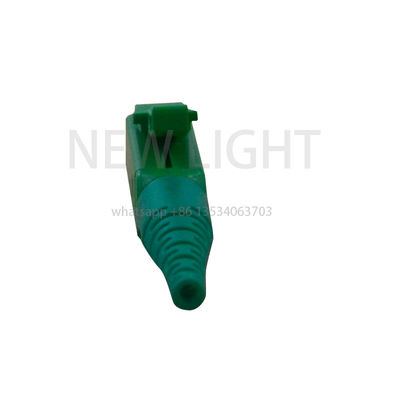

Low Insertion Loss 3.0mm Fiber Optic Pigtail Connector with Ceramic Ferrule for Single Mode Applications

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

fiber optic cable connectors

,

fiber optic fast connector

Product Description
SC / FC / LC / ST Fiber Optic Pigtail Connector
Single Mode Optical Fiber Connector for reliable field installation and restoration work
Product Overview
Field-mountable single mode fiber optic connectors designed for joining optical fiber jumper cables. These connectors eliminate the need to stock various jumper cord sizes and are ideal for field restoration applications.
Connector Assembly Types
Available in two configurations: single-jointed connector assemblies with one fiber connection point, and multiple-jointed assemblies with closely spaced connections for different fiber types.
Key Design Features
  • Low insertion loss for optimal signal transmission
  • High return loss with minimal reflection
  • Easy installation and user-friendly operation
  • Cost-effective solution
  • High reliability and durability
  • Low environmental sensitivity
Low Insertion Loss 3.0mm Fiber Optic Pigtail Connector with Ceramic Ferrule for Single Mode Applications 0
Technical Specifications
  • Low insertion loss and back reflection loss
  • Pre-domed ferrule end surface
  • Precision anti-rotation key
  • Nickel plated brass body construction

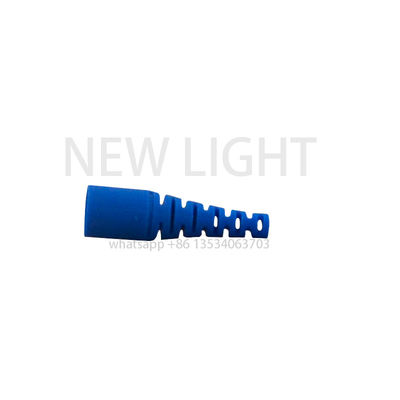

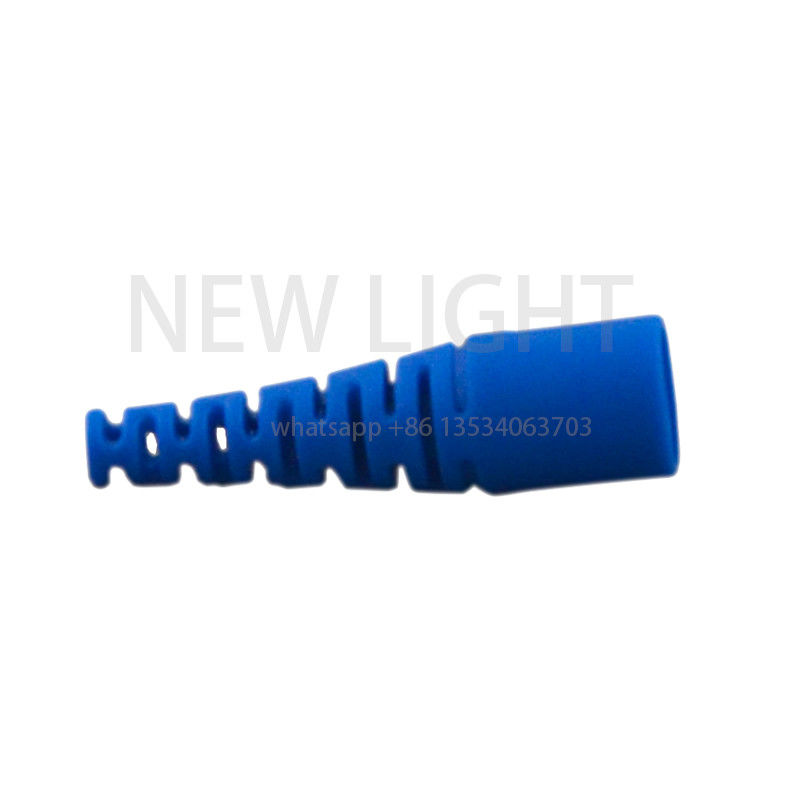

  • Telcordia style boots
  • Free-floating ceramic ferrule
Product Parameters
Parameter Specification
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 3.0 mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wave Length 1310/1550
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Available Connector Types
Low Insertion Loss 3.0mm Fiber Optic Pigtail Connector with Ceramic Ferrule for Single Mode Applications 1
Connector Type LC / SC / FC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9 / 2.0 / 3.0 mm
How to Order
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Customized to your requirements
  8. For MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
