Product Details:
|
| Material: | Metal | Mode Type: | Single Mode / Multi Mode |
|---|---|---|---|
| Connector Type: | 3.0mm | Insertion Loss: | <0.3dB |
| Certificate: | CE , ISO , RoHS | Return Loss: | PC≥40 UPC≥50 APC≥60 DB |
| Highlight: | fiber optic cable connectors,fiber optic fast connector |
||

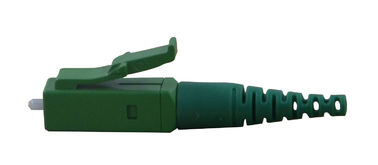

single mode SC / FC / LC / ST / E2000 quick connect fiber optic connectors
Glass fiber optic connector performance is affected both by the connector and by the glass fiber. Concentricity tolerances affect the fiber, fiber core, and connector body. The core optical index of refraction is also subject to variations. Stress in the polished fiber can cause excess return loss. The fiber can slide along its length in the connector. The shape of the connector tip may be incorrectly profiled during polishing. The connector manufacturer has little control over these factors, so in-service performance may well be below the manufacturer's specification.
Testing fiber optic connector assemblies falls into two general categories: factory testing and field testing.
Attributes
Features of good connector design:
Low insertion loss
High return loss (low amounts of reflection at the interface)
Ease of installation
Low cost
Reliability
Low environmental sensitivity
Ease of use
| connector type | single mode / multimode |
| color | blue / Green |
| cable | 0.9/2.0/3.0 |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Parameter
| products name | OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord |
| mode type | single mode / multi mode |
| cable diameter | 3.0 mm |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥60 dB |
| wave length | 1310/1550 |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
more connector for reference
| Connector type | LC / SC / FC / FC / E2000 / MPO /MTRJ /SMA |
| Mode type | single mode or multimode |
| Cable type | 0.9 / 2.0 / 3.0 mm |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
