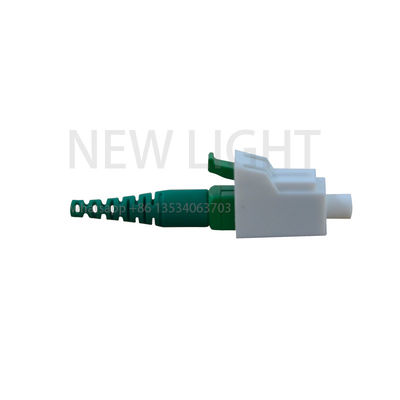

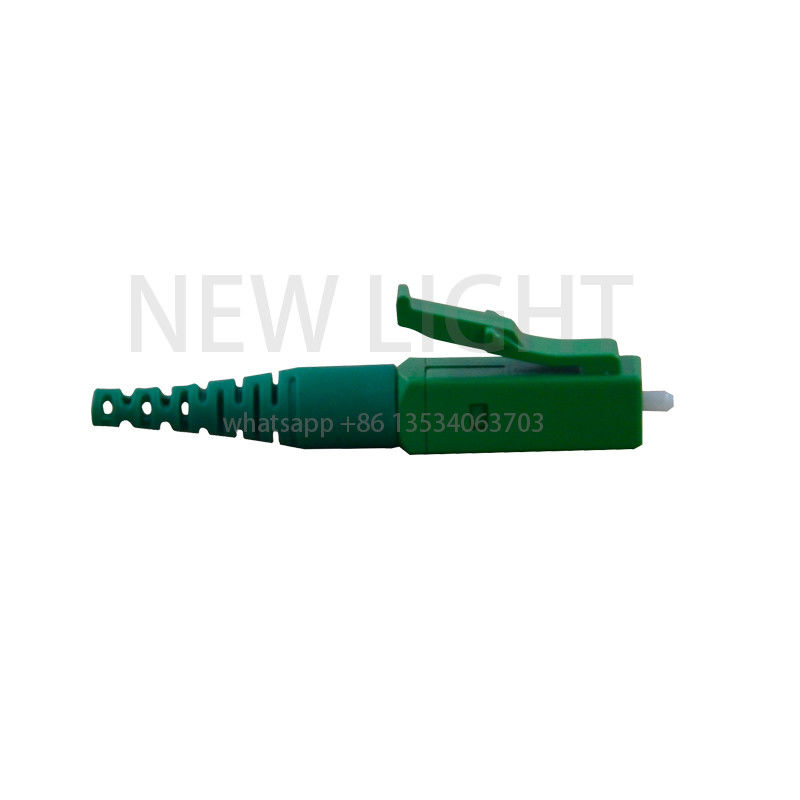

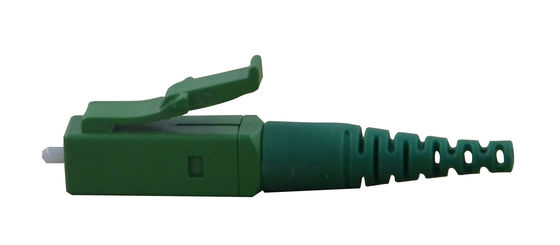

Single Mode Quick Connect Fiber Optic Connector with Low Insertion Loss and High Return Loss

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

fiber optic cable connectors

,

fiber optic fast connector

Product Description
SC / FC / LC / ST / E2000 Quick Connect Fiber Optic Connectors - Single Mode
High-performance single mode SC, FC, LC, ST, and E2000 quick connect fiber optic connectors designed for reliable optical connectivity in demanding industrial and telecommunications applications.
Performance Considerations
Fiber optic connector performance is influenced by both the connector design and glass fiber characteristics. Key factors include concentricity tolerances affecting the fiber, fiber core, and connector body; variations in core optical index of refraction; stress-induced return loss from polishing; fiber movement within the connector; and connector tip profiling accuracy during polishing. Since manufacturers have limited control over these variables, actual in-service performance may differ from specifications.
Fiber optic connector testing is categorized into factory testing and field testing to ensure optimal performance.
Key Design Features
  • Low insertion loss
  • High return loss (minimal reflection at interface)
  • Easy installation
  • Cost-effective
  • High reliability
  • Low environmental sensitivity
  • User-friendly operation
Connector Type Single Mode / Multimode
Color Blue / Green
Cable 0.9/2.0/3.0 mm
Single Mode Quick Connect Fiber Optic Connector with Low Insertion Loss and High Return Loss 0
Technical Features
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key
  • Nickel plated brass body
  • Telcordia style boots
  • Free-floating ceramic ferrule
Product Specifications
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 3.0 mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310/1550 nm
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Single Mode Quick Connect Fiber Optic Connector with Low Insertion Loss and High Return Loss 1
Additional Connector Options
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9 / 2.0 / 3.0 mm
How to Order
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Customized to your requirements
  8. MPO/MTP connector specifications: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
