SC Duplex Fiber Optic Loopback with Plastic Material Stable Insertion Loss and SC to SC Connector for Multimode Fiber Testing

Brand Name:	New Light
Model Number:	SC
MOQ:	1
Price:	0.5~10
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE / ISO / RoHS

Products Name:

SC Duplex Fiber Loopback Plug Multimode Fiber Plasti Material Stable Insertion Loss

Material:

Plastic Material

Connector Type:

SC To SC

Mode Type:

850/1300nm

Repeatability:

>500 Times

Insertion Loss:

Less Than 0.3 DB

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Delivery Time:

2-10 Working Days After Receive Payment

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Certificate:

CE , ISO , RoHS

Supply Ability:

100,000 pcs per month

Highlight:

multimode fiber loopback

multimode fiber optic cable

Product Description

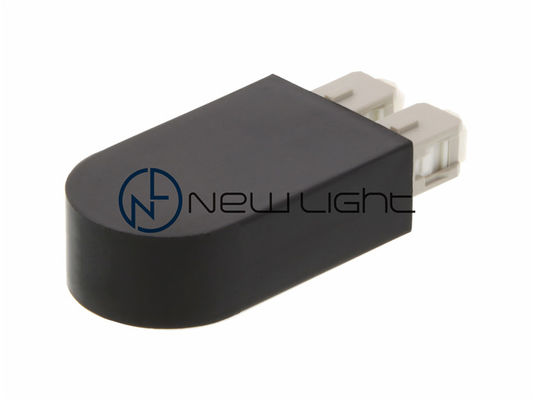

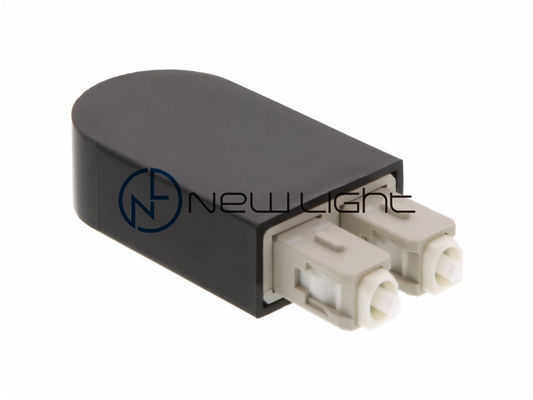

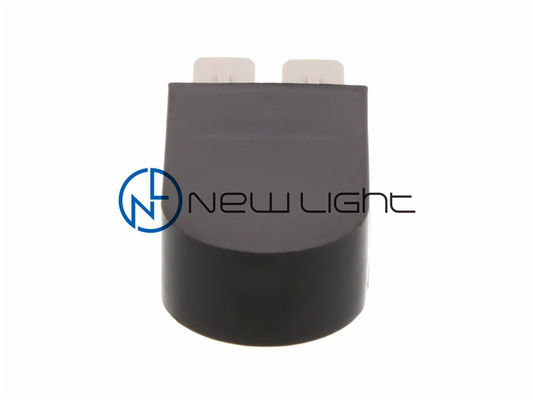

SC Duplex Fiber Loopback Plug - Multimode Fiber

This SC connector type loopback features a square connector with duplex fiber configuration. The housing is constructed from environmentally friendly plastic material, providing cost-effective delivery while maintaining stable insertion loss performance.

Primary Applications

Loopbacks are essential testing tools that supply a looped signal to verify both transmit and receive functions within fiber-optic applications, significantly accelerating optical network testing procedures.

Technical Specifications

Parameter	Singlemode	Multimode	OM3 10G
Connector Type	LC, SC, MT-RJ, MU, ESCON, FDDI, E2000
Cable Type	Simplex Cable
Jacket Color	Yellow	OR/GY/PP/BL	Aqua
Insertion Loss	≤0.1dB	≤0.2dB
Return Loss	≥50dB (UPC)
Exchangeability	≤0.2dB	≤0.2dB	≤0.2dB
Repeatability (500 matings)	≤0.1dB	≤0.1dB	≤0.1dB
Tensile Strength	≥5kg
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +70°C

Key Features

Custom manufactured to specifications
Ideal for testing and diagnosing fiber-optic network equipment
Compliant with IEC, TIA/EIA, NTT and JIS standards
Custom loop length and cable diameter available upon request

Application Areas

Equipment interconnection, premise networks, patch panel applications, communications connections, and device pig-tailing.

Related Products

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units due to higher costs. Larger quantities receive more competitive pricing.

What's the price?

Pricing varies by quantity. We provide our best pricing based on your order volume, with significant discounts for larger quantities.

Can you quote FOB price?

We primarily ship via air carriers (DHL, TNT, UPS, FEDEX) due to product size. We recommend EXW or CFR pricing and can provide freight estimates with product quotes.

How is your quality?

We follow IEC European standards with near dust-free workshop conditions. All products undergo 100% testing before delivery using imported production and quality control equipment.

What's your lead time?

With three factories in China, we can process 5,000 patch cords in 2-3 working days. Regular products are stocked for immediate shipment.

What's your warranty?

Patch cords include a 2-year warranty covering non-artificial damage. We provide free repair for artificial damage, though customers cover shipping costs.

What's your packing?

We use international export packaging and can customize with your logo upon request.

Can you do OEM/ODM?

Yes, we support OEM/ODM manufacturing and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping). Higher-value products require sample charges refundable with orders.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What's your payment term?

We accept T/T, Western Union, PayPal, and MoneyGram. Large orders may use 50% deposit with balance due before delivery.
