High-performance fiber optic loopback designed for CATV 40Gibt OM3-300 applications with aqua cable, providing reliable data transmission network testing and diagnostics.

Applications

Long-distance and local optical transmission networks
Data transmission networks
Image transmission networks
CATV systems
Optical test instruments
Photoelectric automatic control systems

Product Features

Utilizes ceramic pins and high-quality fiber optic cables
Advanced grinding technology ensures precise technical parameters
Low insertion loss and high return loss
Excellent interchangeability and repeated insertion/removal performance
Ideal for testing and diagnosing fiber-optic network equipment
Compliant with IEC, TIA/EIA, NTT and JIS specifications
Custom loop length and cable diameter available upon request
RoHS compliant environmental requirements

Technical Specifications

Parameter	Singlemode	Multimode	OM3 10G
Connector Type	LC, SC, MT-RJ, MU, ESCON, FDDI, E2000
Cable Type	Simplex Cable
Jacket Color	Yellow	OR/GY/PP/BL	Aqua
Insertion Loss	≤0.1dB	≤0.2dB
Return Loss	≥50dB (UPC)
Exchangeability	≤0.2dB	≤0.2dB	≤0.2dB
Repeatability (500 matings)	≤0.1dB	≤0.1dB	≤0.1dB
Tensile Strength	≥5kg
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +70°C

Network Applications

Equipment interconnection
Premise networks
Patch panel applications
Communications connections
Device pig-tailing

multimode fiber optic cable

multimode fiber loopback

fiber loopback cable

Products Details

Home > Products >

Fiber Optic Loopback

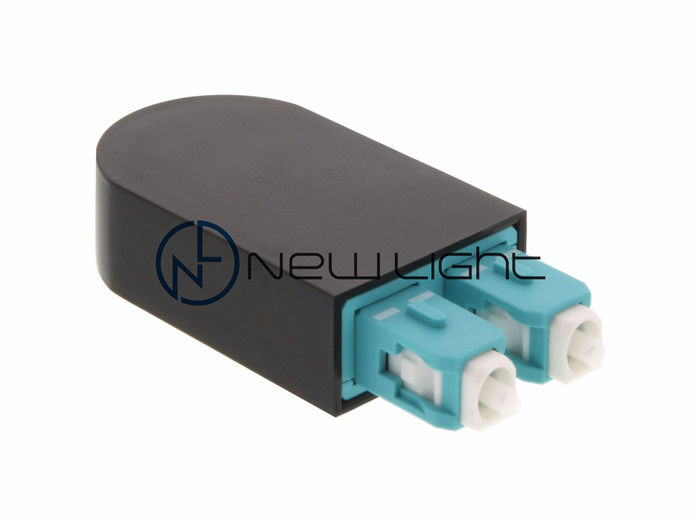

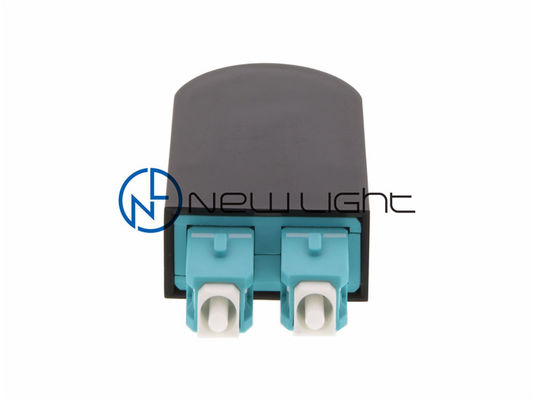

40Gibt OM3-300 Aqua Cable Fiber Optic Loopback for High-Speed Data Transmission Networks

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

40Gibt OM3-300 Aqua Cable Fiber Optic Loopback for High-Speed Data Transmission Networks

Brand Name:	New Light
Model Number:	SC
MOQ:	1
Price:	0.5~10
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Brand Name:

New Light

Certification:

CE / ISO / RoHS

Model Number:

Products Name:

CATV 40Gibt OM3-300 Aqua Cable Fiber Optic Loopback Data Transmission Network

Connector Type:

SC /LC/MPO

Interchangeability:

0.18dB

Application:

Device Pig-tailing,Communications Connections,Equipment Interconnection

Fiber Type:

OM3-300

Repeatability:

>500 Times

Insertion Loss:

≤0.3 DB

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Certificate:

CE , ISO , RoHS

Minimum Order Quantity:

Price:

0.5~10

Packaging Details:

standard export package

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,paypal

Supply Ability:

100,000 pcs per month

Highlight:
