MTRJ Male Multimode Optical Fiber Patch Cord with Customized Length for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	MTRJ
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

MTRJ Male Orange Cable Multimode Fiber Optic Patch Cord Customized Length

Connector:

MTRJ-MTRJ

Fiber Type:

Duplex

Length:

Customized

Insertion Loss:

≤0.3dB

Wavelength:

850nm / 1300nm

Jacket Material:

Quality Control:

100% Test Before Shipping

Return Loss:

≥40dB

Polish:

Real Factory:

Product Name:

MTRJ Male Orange Cable Multimode Fiber Optic Patch Cord Customized Length

Connector:

MTRJ-MTRJ

Fiber Type:

Duplex

Length:

Customized

Insertion Loss:

≤0.3dB

Wavelength:

850nm / 1300nm

Jacket Material:

Quality Control:

100% Test Before Shipping

Return Loss:

≥40dB

Polish:

Real Factory:

Supply Ability:

1000000

Highlight:

Male multimode fiber optic patch cord

Orange armored fiber optic patch cord

Product Description

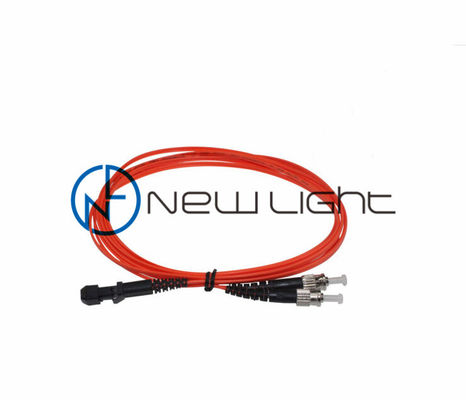

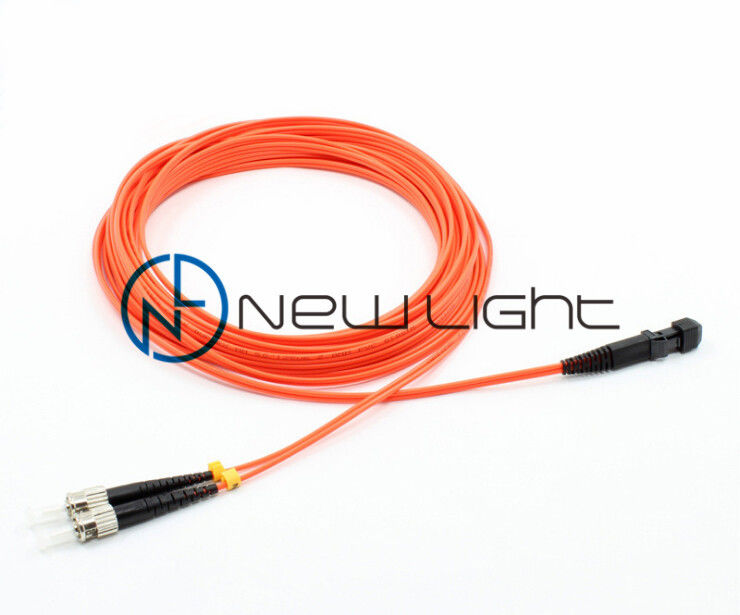

MTRJ Male Orange Multimode Optical Fiber Patch Cord

This MTRJ male orange multimode fiber optic patch cord features a square fiber connector design with integrated transceiver capabilities, engineered for high-speed data transmission applications.

Product Overview

The MTRJ connector is a specialized square fiber optic connector that combines one transceiver and one dual-fiber transceiver in a compact design. Unlike standard connectors, MTRJ features a unique cable diameter and is exclusively available in duplex configuration.

Key Applications

FTTA and FTTH Applications
3G, 4G, and 5G Base Stations
Horizontal and Vertical Cabling Systems
BBU, RRU, RRH, and LTE Infrastructure

Technical Specifications

Parameter	Specification
Mode Type	Multi-mode
Cable Count	Duplex
Core Type	OM2
Cable Color	Orange
Insertion Loss	≤ 0.3dB
Return Loss	UPC ≥50 dB, APC ≥60dB
Wavelength	850/1300nm
Core Size	50/125μm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 Years
Delivery Time	5-15 Working Days

Connector Types

Custom Ordering Information

Connector Type: SC, FC, LC, ST, MPO, MTP, MU, MTRJ, E2000, SMA
Mode Type: Single mode (UPC and APC) / Multi-mode (PC)
Cable Diameter: 0.9mm, 2.0mm, 3.0mm (custom diameters available)
Coating Material: PVC or LSZH
Fiber Count: Simplex, duplex, 4, 6, 8, 12, 24, 48, 96 cores
Cable Type: G652D, G657A1, G657A2, G655, OM1, OM2, OM3-150, OM3-300, OM4, OM5
Patch Cord Length: Customized to your requirements

For MPO/MTP connectors, please specify connection method (A/B/C type), gender (male/female), and fiber count (4/8/12/16/24/32 fiber).

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China with extensive production capabilities.

What's your MOQ?

Minimum order quantity can be 1 piece, though larger quantities receive more competitive pricing.

What's the price?

Pricing varies by quantity. Please provide your specific requirements for a detailed quotation.

How is your quality?

We adhere to IEC and European standards with imported production equipment and implement 100% testing before delivery.

What's your lead time?

Standard lead time is 5-15 working days, with expedited options available for urgent orders.

Can you do OEM/ODM?

Yes, we support OEM and ODM services and can sign confidentiality agreements.

Packaging Reference
