Duplex MU Connector 1.25mm Mini G657A1 LSZH Jacket Optical Fiber Patch Cord

Brand Name:	New Light
Model Number:	MU
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Duplex MU Connector Fiber Optic Patch Cord Supplier 1.25mm Mini G657A1 Patch Cord

Connector:

MU-MU

Fiber Type:

Duplex

Length:

Insertion Loss:

≤0.3dB

Wavelength:

1310/1550nm

Jacket Material:

LSZH

Quality Control:

100% Test Before Shipping

Return Loss:

≥55dB

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Product Name:

Duplex MU Connector Fiber Optic Patch Cord Supplier 1.25mm Mini G657A1 Patch Cord

Connector:

MU-MU

Fiber Type:

Duplex

Length:

Insertion Loss:

≤0.3dB

Wavelength:

1310/1550nm

Jacket Material:

LSZH

Quality Control:

100% Test Before Shipping

Return Loss:

≥55dB

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Supply Ability:

1000000

Highlight:

1.25mm fiber optic patch cable

G657A1 patch cord fiber optic

Product Description

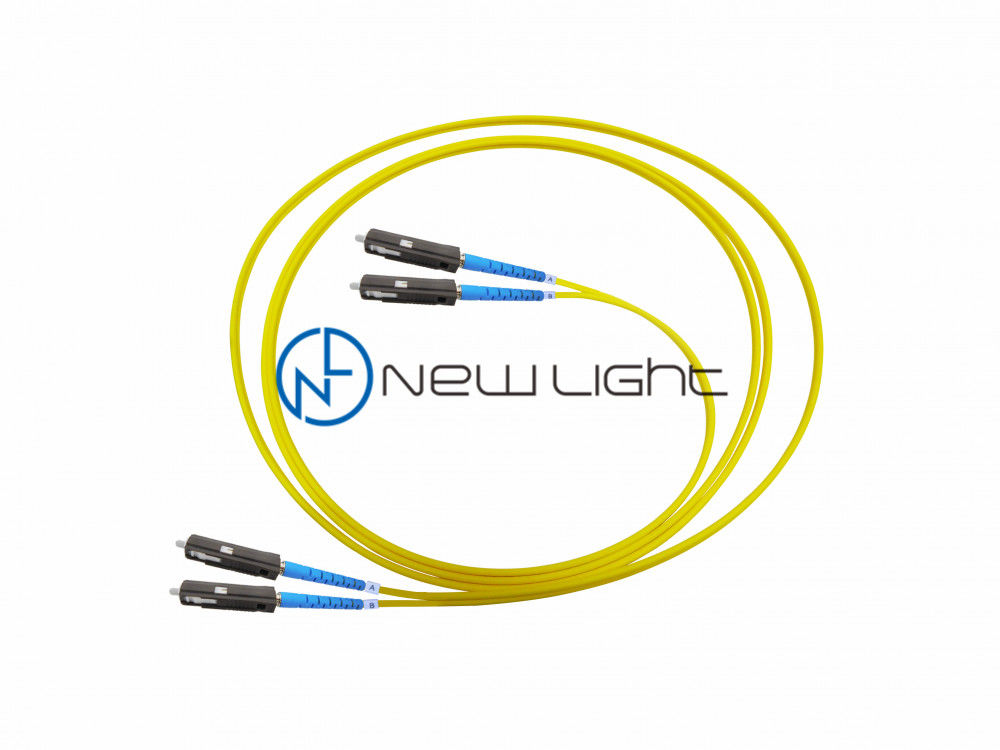

Duplex MU Connector 1.25mm Mini G657A1 Optical Fiber Patch Cord

With the rapid advancement of optical fiber networks towards greater bandwidth and capacity, coupled with the widespread adoption of DWDM technology, the demand for MU-type connectors continues to grow significantly. The MU connector, developed by NTT, features a 1.25mm diameter sleeve and self-retaining mechanism, offering the advantage of high-density installation capabilities.

Product Overview

The MU (miniature unit coupling) connector represents the world's smallest single-core optical fiber connector, building upon the widely used SC connector design. Our duplex MU connector patch cords are engineered for superior performance in modern fiber optic applications.

Typical Applications

FTTA and FTTH Applications
3G, 4G, and 5G Base Stations
Horizontal and Vertical Cabling Systems
BBU, RRU, RRH, and LTE Infrastructure

Technical Specifications

Parameter	Specification
Product Name	3M MU Fiber Optic Connector Single-Core Type Fiber Cable
Mode Type	Single-mode
Cable Count	Simplex
Core Type	G657A1
Cable Color	Yellow
Patch Cord Length	3M (Customizable)
Insertion Loss	≤ 0.3dB
Return Loss	UPC ≥ 50 dB
Wavelength	1310/1550nm
Core Type	9/125μm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 Years After Delivery
Delivery Time	5-15 Working Days

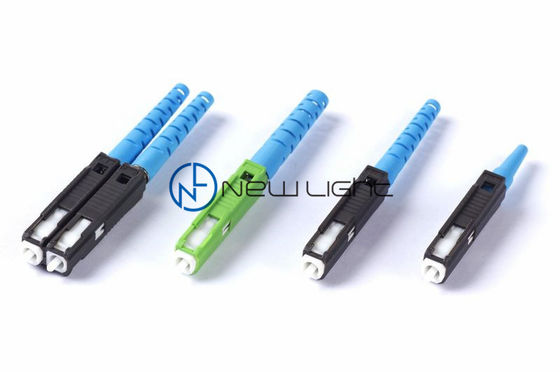

Connector Types Available

Ordering Information

When ordering, please specify the following parameters:

Connector Type: SC, FC, LC, ST, MPO, MTP, MU, MTRJ, E2000, SMA
Mode Type: Single-mode (UPC/APC) or Multi-mode (PC)
Cable Diameter: 0.9mm, 2.0mm, 3.0mm (Customizable)
Coating Material: PVC or LSZH
Fiber Count: Simplex, Duplex, 4, 6, 8, 12, 24, 48, 96 cores
Cable Type: G652D, G657A1, G657A2, G655, OM1, OM2, OM3-150, OM3-300, OM4, OM5
Patch Cord Length: Custom length as required
For MPO/MTP: Specify method (A/B/C type), gender (male/female), and fiber count

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your MOQ?

MOQ can be 1 piece, though we recommend larger quantities for better pricing.

What about pricing?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

How is your quality assurance?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

Standard lead time is 5-15 working days. We maintain stock for regular products and can handle urgent orders.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Packaging Example
