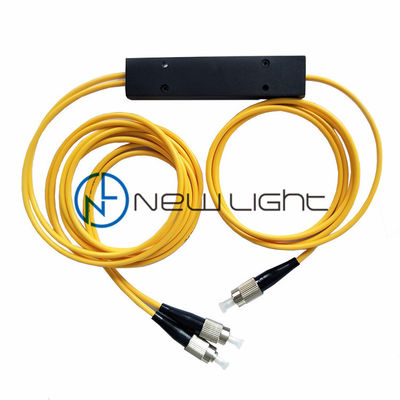

2.0mm Cable FC Fiber Optic DWDM Add Drop Multiplexer with 1470nm Wavelength for High-Speed Networks

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

2.0mm Cable FC Fiber Optic DWDM Add Drop Multiplexer Single Mode Fiber 1470nm Wavelength

Mode Type:

9/125um

Cable Diameter:

2.0mm

Insertion Loss:

≤ 2.5 DB

Connector Type:

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Application:

CATV Links,WDM Network,PON Networks

Supply Ability:

1000000

Highlight:

2.0mm fiber optic wdm

1470nm fiber optic multiplexer

Product Description

2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer

Product Overview

This 2.0mm Cable FC Fiber Optic DWDM Add-Drop Multiplexer operates on single-mode fiber at 1470nm wavelength, providing advanced wavelength division multiplexing capabilities for high-performance optical networks.

Wavelength Division Multiplexing Technology

Wavelength-division multiplexing (WDM) technology multiplexes multiple optical carrier signals onto a single optical fiber using different wavelengths of laser light. Communication system designs vary, and the spacing between wavelengths differs accordingly.

WDM systems are categorized as CWDM (Coarse Wavelength Division Multiplexing) with 20nm channel spacing, or DWDM (Dense Wavelength Division Multiplexing) with 0.2nm to 1.2nm channel spacing. At the transmitting end, multiple optical carrier signals are combined through a multiplexer and transmitted via the same optical fiber. At the receiving end, a demultiplexer separates the wavelengths for further processing and signal restoration.

Applications

CWDM Systems
PON Networks
CATV Links
WDM Networks

Key Features

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Mounted in 1U Racks or ABS box optional
Wide Operating Wavelength: From 1260nm to 1620nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability

Technical Parameters

Parameters	1x2	1x4	1x8	1x16
Center Wavelength (nm)	ITU, ITU+1
Passband (nm)	ITU±6.5
Operating Wavelength (nm)	1460~1620 or 1260~1620
Channel Space (nm)	20
Fiber Type	SMF-28e or customer specified
IL (dB) (P/A Grade)	0.7/1.0	1.4/1.7	2.0/2.5	2.5/3.0
Isolation (dB) - Adjacent Channel	30
Isolation (dB) - Non-Adjacent Channel	50
Ripple (dB)	0.3	0.4	0.5	0.5
PDL (dB)	0.2
PMD (ps)	0.1
RL (dB)	45
Directivity (dB)	50
Maximum Optical Power (mw)	500
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Compact BOX Package (mm)	1008010	14011518
LGX Package	1U, 2U
19" Rack mount Package	1U

1*N CWDM Mux/Demux Module Configuration

Parameter	Options
Channels Number	4=4 Channels, 8=8 Channels, 16=16 Channels
Application Type	M=Mux, D=DeMux
Central Wavelength	41=1410nm, 43=1430nm, 45=1450nm, 47=1470nm, 49=1490nm, 51=1510nm, 53=1530nm, 55=1550nm, 57=1570nm, 59=1590nm
Fiber Diameter	1=250um, 2=900um, 3=2.0mm, 4=3.0mm, XX=Other
Fiber Length	05=0.5m, 10=1.0m, 15=1.5m, 20=2.0m, XX=Other
Connector	0=None, 1=FC/APC, 2=FC/PC, 3=SC/APC, 4=SC/PC, 5=ST, 6=LC, X=Other

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend ordering larger quantities for better pricing as single-unit orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

While we can provide FOB pricing, most shipments are delivered by air (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is typically more suitable. For large shipments, we can arrange sea freight options.

How is your quality?

We manufacture according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are available from stock, and we accommodate urgent orders.

What's your warranty?

Patch cords carry a 2-year warranty for non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

What's your packing?

We use international export packaging and can print customer logos upon request.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by the customer. For high-value products, sample charges apply but are refundable with orders.

How can I order?

Send inquiries with product specifications and quantities. We'll provide pricing and lead times, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What's your payment term?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, 50% deposit with balance paid before delivery.
