SC UPC Connector Armored Fiber Optic Patch Cord with 2.0mm Diameter for FTTH FTTB FTTX Networks

Brand Name:	New Light
Model Number:	SC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

SC UPC Blue Color Armored Fiber Optical Duplex Patch Cord 2.0 Diameter

Connector:

SC UPC

Fiber Type:

Duplex

Length:

5meter

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

Real Factory:

Application:

FTTH FTTB FTTX Network

Product Name:

SC UPC Blue Color Armored Fiber Optical Duplex Patch Cord 2.0 Diameter

Connector:

SC UPC

Fiber Type:

Duplex

Length:

5meter

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

Real Factory:

Application:

FTTH FTTB FTTX Network

Supply Ability:

1000000

Highlight:

SC UPC duplex patch cord

2.0 patch cord sc lc duplex

Product Description

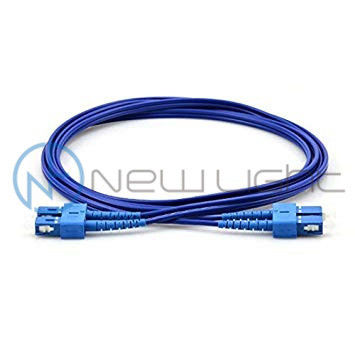

SC UPC Blue Color Armored Fiber Optical 2.0 Duplex Patch Cord

This armored fiber optic patch cord features SC UPC connectors in blue color with a 2.0mm diameter. The cable incorporates metal armor within the outer jacket for superior protection against environmental hazards and rodent damage.

Product Features

Enhanced durability compared to standard indoor fiber optic cables
Available in simplex, duplex, 4-core, 6-core, 8-core configurations
Multiple color options including blue, grey, and yellow
Custom color available with MOQ over 1000 meters
Various connector types: FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4

Typical Applications

FTTA and FTTH Applications
3G, 4G, 5G Base Stations
Horizontal and Vertical Cabling
BBU, RRU, RRH, LTE Systems

Technical Specifications

Parameter	Specification
Mode Type	Single-mode
Cable Count	Duplex
Core Type	G652D
Cable Color	Blue
Insertion Loss	≤ 0.3dB
Return Loss	UPC≥50 dB, APC≥60dB
Wavelength	1310/1550nm
Core Type	9/125um
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	5-15 working days

Connector Types

Product Gallery

Ordering Information

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single mode (UPC and APC) / Multi mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customizable to your requirements
MPO/MTP Options: Specify method (A/B/C type), gender (male/female), and fiber count

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We primarily ship via air couriers. EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces. We maintain stock for regular products and handle urgent orders.

What's your warranty?

2-year warranty for non-artificial damage. Free repair for artificial damage with customer covering freight.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for patch cords, adaptors, and attenuators with freight prepaid by customer.

Packaging

Ordering Process: Contact us with product specifications and quantity → Receive quotation → Confirm order → Payment → Production → Delivery with tracking

Payment Terms: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
