LC-LC 2mm Armoured FTTH Patch Cord with G657A1 Core for Indoor Fiber Optic Connectivity

Brand Name:	New Light
Model Number:	SC/ LC/ ST/ FC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured Cable

Connector:

LC -LC

Fiber Type:

Simplex

Core Type:

G657A1

Cable Color:

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Out Jacket Material:

Length:

10 Meters

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC Polishing

Real Factory:

Product Name:

LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured Cable

Connector:

LC -LC

Fiber Type:

Simplex

Core Type:

G657A1

Cable Color:

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Out Jacket Material:

Length:

10 Meters

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC Polishing

Real Factory:

Supply Ability:

1000000

Highlight:

2mm fiber optic patch cable

FTTH fiber optic cable patch cord

Product Description

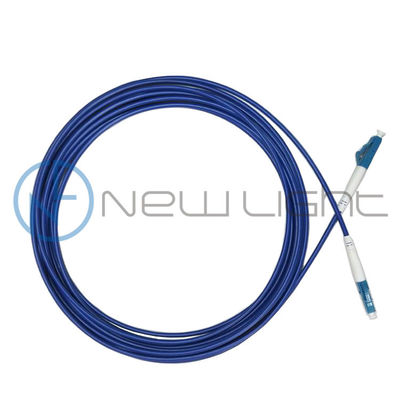

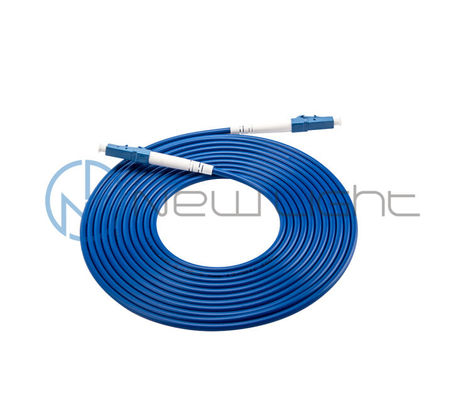

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

This armored fiber optic patch cord features LC connectors on both ends with a 2mm steel armored cable, designed specifically for FTTH (Fiber To The Home) indoor applications. The steel armor provides superior protection and durability compared to standard indoor fiber optic cables.

Product Specifications

Parameter	Specification
Product Name	LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured Cable
Mode Type	Single-mode
Cable Count	Simplex
Core Type	G657A2
Cable Color	Blue
Insertion Loss	≤ 0.3dB
Return Loss	UPC ≥50 dB, APC ≥60dB
Wavelength	1310/1550nm
Core Size	9/125μm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	3-7 working days (depending on quantity)

Fiber Type Options

Single mode armored cables are available in G652D, G657A1, and G657A2 types with varying bending radius capabilities. The anti-bending performance increases from G652D to G657A2, making G657A2 ideal for applications requiring tight cable routing in small spaces.

Available Configurations

Fiber Count: Simplex, duplex, 4-core, 6-core, 8-core, and custom configurations
Connector Types: FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4
Cable Colors: Blue, grey, yellow, and custom colors (MOQ: 1000 meters)
Cable Length: Customizable according to requirements

Typical Applications

FTTA and FTTH Applications
3G, 4G, 5G Base Stations
Horizontal and Vertical Cabling
BBU, RRU, RRH, LTE Systems

Connector Types

Popular Fiber Optic Products

How to Order

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single mode (UPC and APC) / Multi mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4-core / 6-core / 8-core / 12-core / 24-core / 48-core / 96-core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customizable to your requirements
For MPO/MTP connectors: Specify method (A/B/C type), gender (male/female), and fiber count

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for larger orders.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces. We maintain stock for regular products and can handle urgent orders.

What's your warranty?

2 years warranty for patch cords, covering non-artificial damage.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight).

Product Packaging
