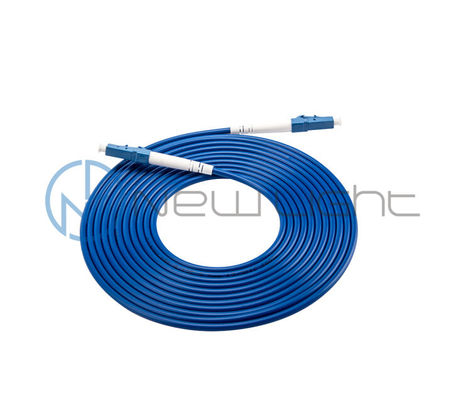

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord
LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord
LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

Large Image :  LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC/ LC/ ST/ FC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 12000 pcs /day

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord

Description
Product Name: LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured Cable Connector: LC -LC
Fiber Type: Simplex Core Type: G657A1
Cable Color: Blue Application: FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Out Jacket Material: LSZH Length: 10 Meters
Insertion Loss: ≤0.3dB Wavelength: 1310nm / 1550nm
Quality Control: 100% Test Before Shipping Return Loss: ≥50dB
Polish: UPC Polishing Real Factory: Yes
Highlight:

2mm fiber optic patch cable

,

FTTH fiber optic cable patch cord

Optical Fiber Patch Cord Product Name:



LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured cable



Optical Fiber Patch Cord Description :



Single mode type Armored cables has indoor and outdoor type. Also single mode fiber cables has G652D,G657A1, and G657A2 according to  your requriements and project application . They are different on anti-bending, means the bending radis is different.



The anti-bending level as showing:  G652D < G6527A <G657A2. if you need the cable be wired into small dimeter for cable distribution, then you need to choose the G657A2 type cable.



The price of each fiber, out jacket material, fiber count and length also is different. And the bending radius will be smaller and smaller from left cable to right one.



Armored cable is very popular in the market due to the application.



This type of cable is more long-lasting than the normal indoor fiber optic cable.



The armore fiber optic cable has simplex, duplex, 4 core, 6 core, 8 core, etc, lots of fiber count according to your requests.



The color of the armored cable has blue, grey, yellow, and other color. It also can be customized according to your requirements, but the MOQ should be over 1000 meters if you need to customize the cable color.



Simplex will have two connectors totally, duplex will have four connectors, each side will have two connectors. Regarding the connector structure, It has FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4, and so on.



The fiber count also can be simplex patch cord, duplex patch cord, 4 core patch cord, 6 core patch cord, 8 core patch cord, 12 core patch cord, 24 core patch cord, 48 core patch cord, 96 core patch cord, and so on.



Optical Fiber Patch Cord  Typical Usages


FTTA,FTTH Application
3G, 4G, 5G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE



Optical Fiber Patch Cord Technical Parameter



products name  LC LC 2mm Indoor FTTH Metal Steel Fiber Optic Patch Panel Patch Cord Armoured cable
mode type single-mode
cable count  simplex
core type G657A2
cable color  blue
patch cord length  ( can be customized according to your request )
insertion loss ≤ 0.3dB
return loss UPC≥50 dB  APC≥60dB
wavelength 1310/1550nm
core type 9/125um
ferrule material Ceramic
operating temperature -40~ +85℃
cable print standard print ( can be customized)
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 3-7 working days ( according to your quantity )



Optical Fiber Patch Cord Connector type:

LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord 0







Fiber Optic products Hot sale type:





LC LC 2mm Metal Steel Armoured Indoor FTTH Optical Fiber Patch Cord 1







How to order Optical fiber patch cord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )



FQA :



1. Q: Are you a manufacturer?

A: yes, we are a manufacturer in Shenzhen, China



2. Q: What's your MOQ?

A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher so that the price will be higher than your budget.



3. Q: What's the price?

A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.



4. Q: Can you quote FOB price?

A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with product price for your reference.



We have a very competitive price shipping forwarder. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.



EXW price or CFR price will be better . You can contact us for more solution if you need.



5. Q: How is your quality?

A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.



All the products are 100% test before delivery.



6. Q: What's your lead time?

A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.

For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with an urgent order for you. For more information, you can feel free to contact us.



7. Q: What's your warranty?

A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.



8. Q: What's your packing?

A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing



9. Q: Can you do OEM/ODM?

A: yes, we can. We are a manufacturer, all products accept OEM /ODM. we can sign the Confidentiality Agreement.



10. Q: Can I have a sample?

A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.

For big value products, we can't offer it for free, sample charge and freight repaid first. after you placed an order, the sample charge will be returned.



11. Q: How can I order?

A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.

2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.

3. When you accept the quotation, we will make a Proforma Invoice with our bank account.

4. We will arrange the production for you after we received the payment.

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.

6. We will try our best to meet your requirements for long-term cooperation.



12. Q: What your payment term?

A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.



Packing for reference :
