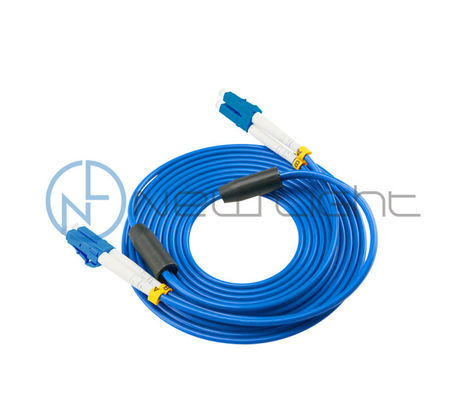

Duplex LC To LC Metal Armoured Optical Fiber Patch Cord for CATV Applications

Brand Name:	New Light
Model Number:	LC-LC duplex
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Duplex Fiber Patch Cord LC To LC CATV Metal Armoured Cable 3.0 Fiber Optic Cable

Connector:

LC -LC

Length:

Customized

Fiber Type:

Duplex

Mode Type:

9/125um

Core Type:

G652D/G6527A1/G657A2

Cable Color:

Blue Color

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Out Jacket Material:

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC Polishing

Real Factory:

Product Name:

Duplex Fiber Patch Cord LC To LC CATV Metal Armoured Cable 3.0 Fiber Optic Cable

Connector:

LC -LC

Length:

Customized

Fiber Type:

Duplex

Mode Type:

9/125um

Core Type:

G652D/G6527A1/G657A2

Cable Color:

Blue Color

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Out Jacket Material:

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC Polishing

Real Factory:

Supply Ability:

1000000

Highlight:

3.0 fiber optic patch cord

LC To LC optical patch cord

Product Description

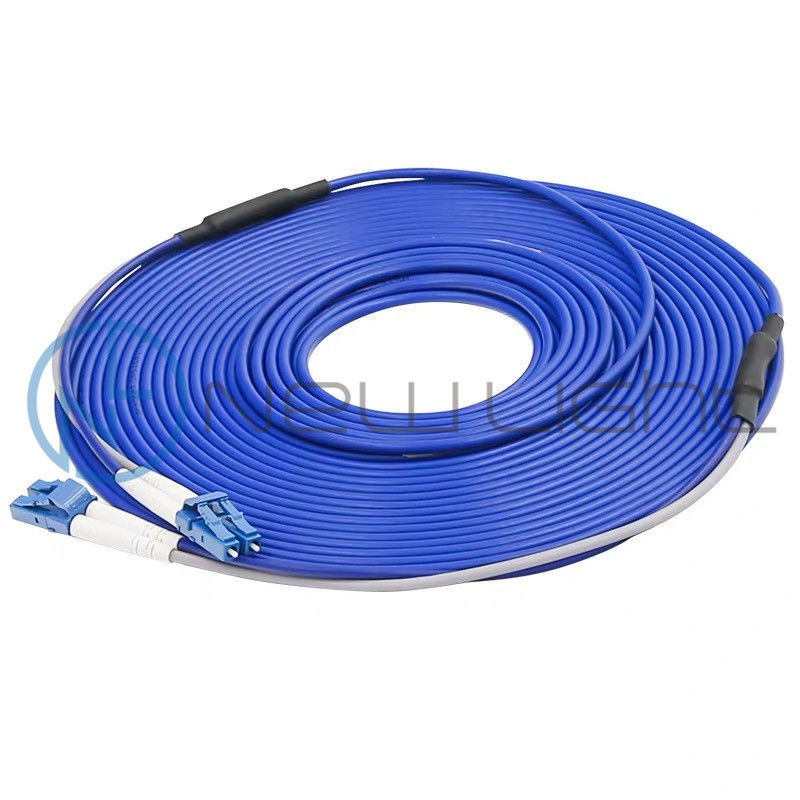

Duplex LC To LC CATV Metal Armoured 3.0 Optical Fiber Patch Cord

This duplex fiber optic patch cord features LC to LC connectors with metal armored construction, providing exceptional durability and performance for demanding industrial applications.

Product Overview

The flexible metal armored optical fiber demonstrates superior lateral pressure resistance, with test results reaching the maximum capacity of conventional optical cable test equipment (8000N/10CM). These indoor and outdoor optical cables offer compact size, lightweight design, and excellent environmental characteristics.

Key Applications

FTTA and FTTH Applications
3G, 4G, 5G Base Stations
Horizontal and Vertical Cabling
BBU, RRU, RRH, LTE Systems
Building Wiring and Equipment Room Connections
Field Operations and Sensor Detection
Fiber to Desktop Installations

Technical Specifications

Parameter	Specification
Product Name	Duplex Fiber Patch Cord LC To LC CATV Metal Armoured Cable 3.0
Mode Type	Single-mode
Cable Count	Duplex
Core Type	G652D/G657A1/G657A2
Cable Color	Blue (Customizable)
Insertion Loss	≤ 0.3dB
Return Loss	UPC≥50 dB, APC≥60dB
Wavelength	1310/1550nm
Core Type	9/125um
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 Years
Delivery Time	3-7 Working Days

Fiber Core Types

Single mode armored cables are available in G652D, G657A1, and G657A2 variants with varying bend resistance capabilities. The bending radius decreases progressively: G652D < G657A1 < G657A2. For applications requiring tight cable routing, G657A2 is recommended.

Configuration Options

Connector Types: FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4
Fiber Counts: Simplex, Duplex, 4-core, 6-core, 8-core, 12-core, 24-core, 48-core, 96-core
Cable Colors: Blue, Grey, Yellow (Custom colors available with 1000m MOQ)
Cable Diameters: 0.9mm, 2.0mm, 3.0mm (Custom diameters available)

Connector Reference

Product Variations

Ordering Information

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single mode (UPC and APC) / Multi mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (Custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Custom lengths available
MPO/MTP Options: Specify method (A/B/C type), gender (male/female), fiber count

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements.

Can you quote FOB price?

We typically ship via air courier. EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What's your lead time?

Regular products: 2-3 working days for up to 5000 pieces. We accommodate urgent orders.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for patch cords and accessories (customer pays shipping).

Packaging Reference
