LC APC 8 Degree Polishing Armoured Fiber Optic Patch Cord with ≤0.3dB Insertion Loss for FTTH FTTB FTTX Networks

Brand Name:	New Light
Model Number:	LC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

LC APC 8 Degree Polishing Armoured Fiber Optic Patch Cord Sc Lc

Connector:

SC UPC- LC APC

Fiber Type:

Simplex

Length:

Any Length

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC And APC

Real Factory:

Application:

FTTH FTTB FTTX Network

Product Name:

LC APC 8 Degree Polishing Armoured Fiber Optic Patch Cord Sc Lc

Connector:

SC UPC- LC APC

Fiber Type:

Simplex

Length:

Any Length

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC And APC

Real Factory:

Application:

FTTH FTTB FTTX Network

Supply Ability:

1000000

Highlight:

8 Degree sc lc fiber patch cord

LC APC fiber optic patch leads

Product Description

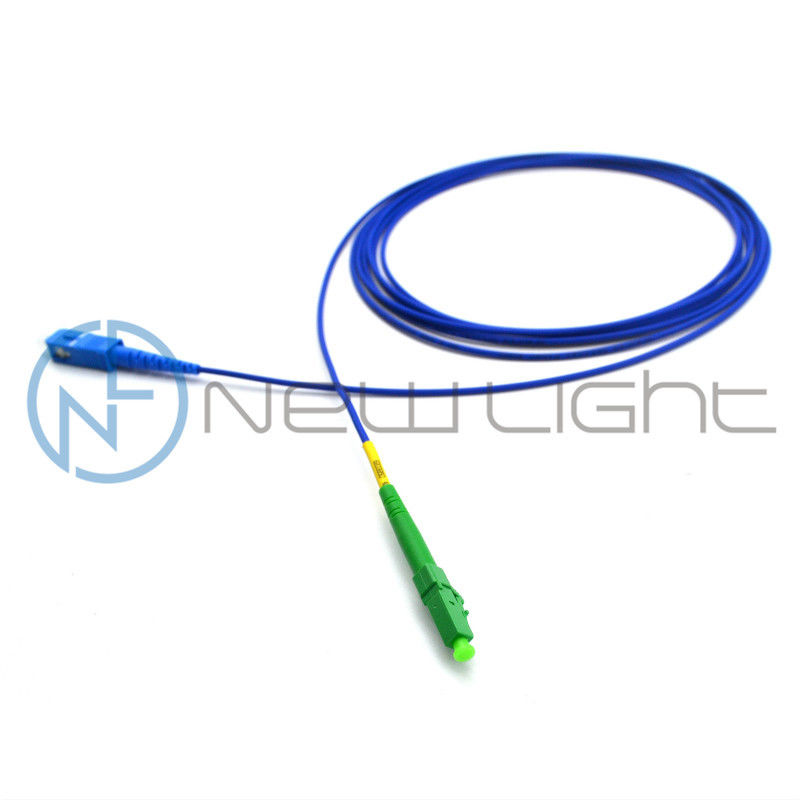

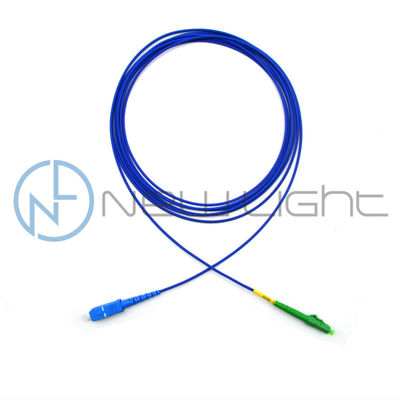

LC APC Armoured 8 Degree Optical Fiber Patch Cord SC/LC

Armored fiber optic patch cords provide robust connectivity solutions for telecommunications infrastructure, long-distance transmission lines, and primary/secondary trunk networks. These durable patch cords are commonly used to interconnect optical network equipment within data centers and building facilities.

Product Specifications

Parameter	Specification
Product Name	LC APC 8 Degree Polishing Armoured Fiber Optic Patch Cord SC/LC
Mode Type	Single-mode
Cable Count	Simplex
Core Type	G652D
Cable Color	Blue
Insertion Loss	≤ 0.3dB
Return Loss	UPC ≥50 dB, APC ≥60dB
Wavelength	1310/1550nm
Core Size	9/125μm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 Years

Configuration Options

Cable Types & Configurations

Available in simplex, duplex, 4-core, 6-core, 8-core, and higher fiber counts
Standard colors: blue, grey, yellow (custom colors available with MOQ ≥1000 meters)
Simplex: 2 connectors total | Duplex: 4 connectors total (2 per side)

Connector Types

FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4, and other standard interfaces

Typical Applications

FTTA and FTTH Deployments
3G, 4G, and 5G Base Stations
Horizontal and Vertical Cable Infrastructure
BBU, RRU, RRH, and LTE Equipment

Ordering Information

Required Specifications for Ordering

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single-mode (UPC and APC) / Multi-mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4-core / 6-core / 8-core / 12-core / 24-core / 48-core / 96-core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Custom lengths available
For MPO/MTP: Specify method (A/B/C type), gender (male/female), and fiber count

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China with extensive production capabilities.

What is your minimum order quantity?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

What is your pricing structure?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements and order volume.

How is product quality ensured?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

Standard lead time is 5-15 working days. We maintain three factories in China and can handle urgent orders efficiently.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements.

Packaging & Shipping

We use international export-standard packaging and can customize packaging with your logo. Delivery options include air freight via DHL, TNT, UPS, FedEx, or sea freight for larger shipments.

Order Process

Submit inquiry with product specifications and quantity
Receive customized quotation with lead time
Confirm order and receive proforma invoice
Production begins after payment confirmation
Shipping confirmation with tracking information

Payment Terms: T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
