Customized length armored fiber optic patch cords with SC connectors and APC polishing, designed for reliable performance in demanding industrial and telecommunications applications.

Cable Construction

Indoor armored cable available in single armor and double armor configurations:

Single-core single-mode indoor armored optical cable (single armor)
Tightly wrapped optical fiber + aramid reinforcement + stainless steel hose + stainless steel braided wire + outer sheath
Outer sheath materials include flame retardant PVC, LSZH, Teflon, and silicone tube

Configuration Options

Fiber count: Simplex, duplex, 4 core, 6 core, 8 core, and custom configurations
Colors: Standard blue, grey, yellow; custom colors available (MOQ: 1000+ meters)
Connector types: FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4

Typical Applications

FTTA and FTTH Applications
3G, 4G, 5G Base Stations
Horizontal and Vertical Cabling
BBU, RRU, RRH, LTE Systems

Technical Specifications

Parameter	Specification
Mode Type	Single-mode
Cable Count	Simplex
Core Type	G657a2
Cable Color	Blue
Insertion Loss	≤ 0.3dB
Return Loss	UPC ≥50 dB, APC ≥60dB
Wavelength	1310/1550nm
Core Size	9/125um
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	5-15 working days (quantity dependent)

Connector Types

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord

Products Details

Home > Products >

Optical Fiber Patch Cord

Simplex SC APC Armored Fiber Optic Patch Cord with Customized Length and Anti-Rat Bite Protection

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

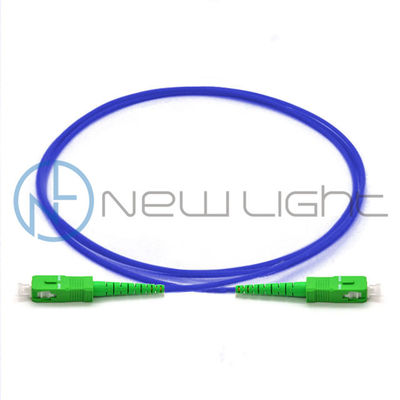

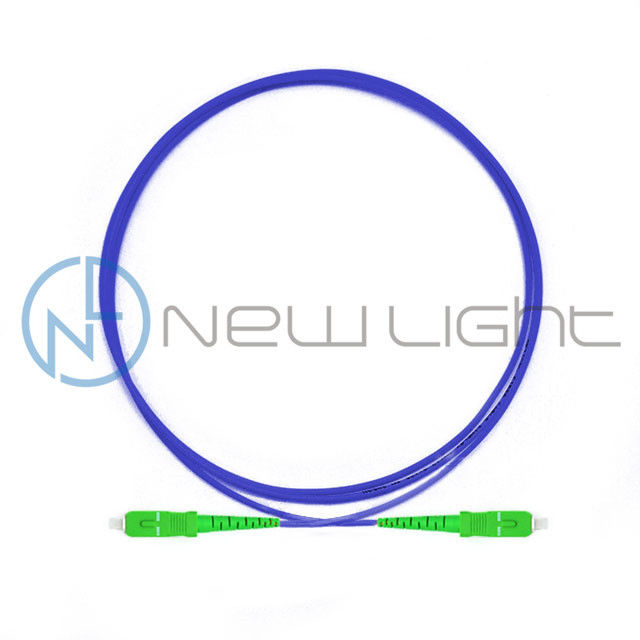

Simplex SC APC Armored Fiber Optic Patch Cord with Customized Length and Anti-Rat Bite Protection

Brand Name:	New Light
Model Number:	SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Model Number:

Product Name:

Simplex SC Customized Length Armored Fiber Optic Patch Cords In APC Polishing

Connector:

SC APC

Fiber Type:

Simplex

Cable Color:

Blue Armored

Sale Point:

Anti-rat Bite

Length:

Customized

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥60dB

Polish:

APC

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Product Name:

Simplex SC Customized Length Armored Fiber Optic Patch Cords In APC Polishing

Connector:

SC APC

Fiber Type:

Simplex

Cable Color:

Blue Armored

Sale Point:

Anti-rat Bite

Length:

Customized

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥60dB

Polish:

APC

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

opp bag + carton box

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

Simplex fiber optic patch cords

APC sc fiber patch cord
