Low Reflection FC APC Fiber Optic Terminator with 1640nm Wavelength and 500MW Max Power for High Stability

Brand Name:	New Light
Model Number:	FC
MOQ:	100
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Product Name:

FC APC Fiber Optical Low ReflectionTerminator Light Weight Fiber Passive Device

Connector Type:

Ferrule Polishing:

APC

CATV Wavelength:

1260-1640nm

Working Temperature:

-40~+75 Degree

Application:

EDFA, DWDM, OADM, CATV

Fiber Link:

FC/APC

Max Power:

500MW

Supply Ability:

100,000 pcs / month

Highlight:

1640nm fiber optic cutting tool

APC fiber optic termination tools

Product Description

Low Reflection FC APC 1640nm Fiber Optic Terminator

Fiber Optical Terminators are designed to terminate unused connector ports in fiber optic systems and eliminate unwanted reflections that can cause bit errors. Available in SC, FC, LC, ST, and MU versions, these terminators are primarily used in DWDM and EDFA fiber system open ends. The high attenuation fiber inside effectively absorbs reflections within a 2cm distance to ensure high stable optical transmission.

Key Features

High attenuation fiber construction
Designed for long-term high power transmission
Suitable for 1260-1640nm bandwidth
Compatible with multiple connector types
Special craftsmanship to ensure reflection requirements
Maximum Power: 500mW
Working temperature: -40°C to +75°C

Applications

EDFA, DWDM, OADM, CATV systems
Optical transmission networks
Fiber to the home (FTTH)
Telecommunications networks

Technical Parameters

Item	UPC	APC
Return Loss	≥50 dB	≥60 dB
Maximum Power	500mW
Repeatability	0.1dB Max.
Temperature Range	-40°C to +75°C
Operation Times	1000

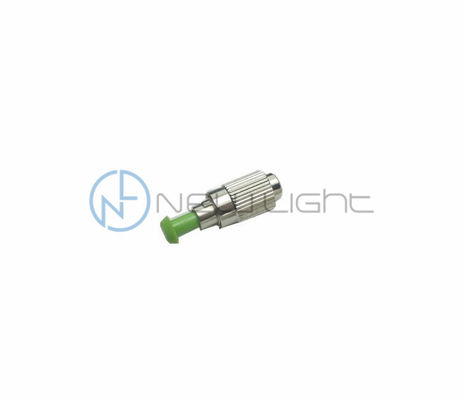

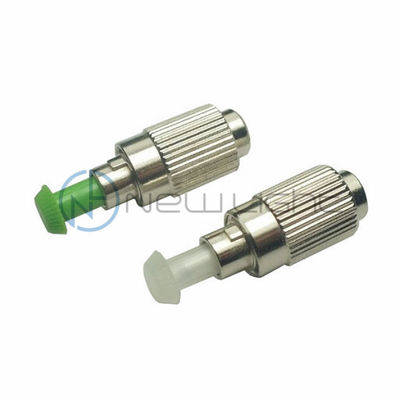

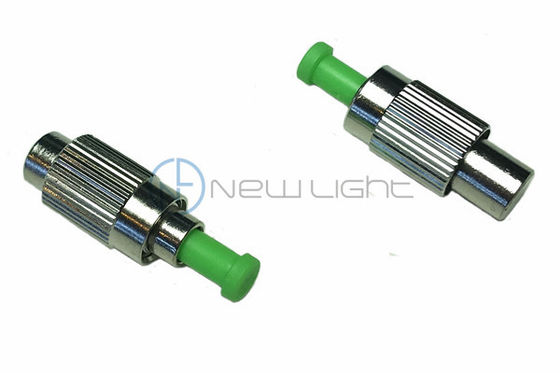

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units due to higher costs. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume, with significant discounts for larger quantities.

Can you quote FOB price?

We can provide FOB quotes, but due to product size and weight, air shipping (DHL, TNT, UPS, FedEx) is typically more practical. We recommend EXW or CFR pricing for most orders.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, we can deliver 5,000 pieces within 2-3 working days. Regular products are typically in stock.

What's your warranty?

Patch cords include a 2-year warranty covering non-artificial damage. For artificial damage, we provide free repairs with customer covering shipping costs.

What's your packing?

We use international export packaging and can customize with your logo upon request.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with customer covering shipping. Higher-value products require sample charges.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with balance due before delivery.

Packing Reference
