Single Mode 1550nm Right Angle SC Fiber Optic Connector for High Performance Networking

Brand Name:	New Light
Model Number:	ST
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

1550nm fiber optic sc connector

1550nm sc fiber optic connector

Product Description

Single Mode Simplex Right Angle SC 1550nm Fiber Optic Connectors

Single Mode Simplex right angle fiber optic SC connectors are designed for reliable networking applications. ST connectors feature a cylindrical design with twist-lock coupling and 2.5mm keyed ferrule, suitable for both short-distance and long-line systems. The bayonet mount and spring-loaded cylindrical ferrule ensure secure connections with easy insertion and removal.

Connector Attributes

Design Features

Low insertion loss
High return loss (minimal reflection at interface)
Easy installation
Cost-effective
High reliability
Low environmental sensitivity
User-friendly operation

Connector Type	Single Mode / Multimode
Color	Blue / Green
Cable	0.9/2.0/3.0 mm

Technical Specifications

Key Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key
Nickel plated brass body

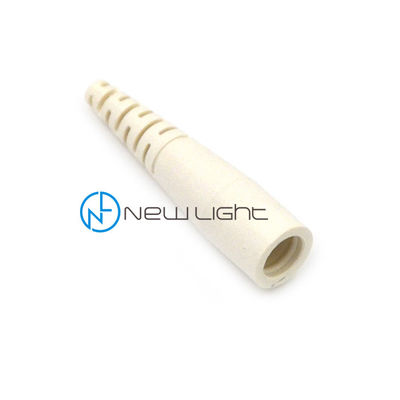

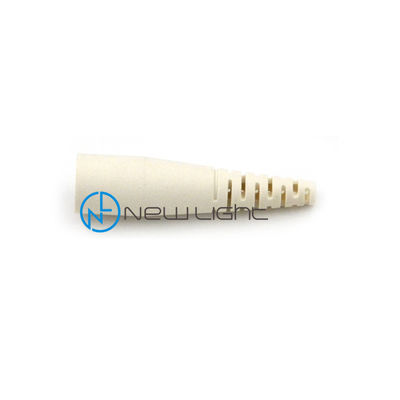

Telcordia style boots
Free-floating ceramic ferrule

Product Name	OEM/ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type	Single Mode / Multi Mode
Cable Diameter	3.0 mm
Insertion Loss	≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥60 dB
Wavelength	1310/1550 nm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (according to quantity)

Additional Connector Options

Connector Type	LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type	Single Mode or Multimode
Cable Type	0.9 / 2.0 / 3.0 mm

Ordering Information

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Custom lengths available
MPO/MTP Connector: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
