Fiber Optic Connectors

1550nm 3.0mm ST Fiber Optic Connector with Low Insertion Loss for Pre Assembly Components

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1550nm 3.0mm ST Fiber Optic Connector with Low Insertion Loss for Pre Assembly Components

Brand Name:	New Light
Model Number:	ST
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

1550nm connector optical fiber

1550nm fibre optic sX connector

Product Description

ST PC SX Pre-assembly Fiber Optic Connectors

ST connectors were among the first connector types widely implemented in fiber optic networking applications. Originally developed by AT&T, ST stands for 'Straight Tip' connector.

The ST connector utilizes a 2.5mm ferrule with a round plastic or metal body. The connector features a reliable "twist-on/twist-off" bayonet-style lock mechanism for secure connections.

Optical fiber connectors provide essential connect/disconnect capability for fiber optic systems. These connectors are typically assembled and polished in manufacturing facilities, though field termination is also possible for applications such as patch panel installations.

Common applications include telephone exchanges, customer premises wiring, outside plant installations, equipment connections, and cable cross-connections. Most optical fiber connectors are spring-loaded to ensure fiber faces press together when mated, eliminating signal losses from air gaps.

Key Features

Low insertion loss
High return loss
Excellent repeatability
Superior interchange performance
Outstanding environmental adaptability
Pre-domed ferrule end surface
Precision anti-rotation key
Nickel plated brass body

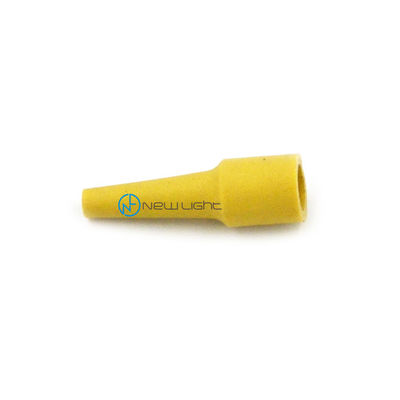

Telcordia style boots
Free-floating ceramic ferrule

Applications

Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication Systems
Optical fiber connected and transmitting equipment
Defense combat readiness systems

Specifications

Product Name	OEM/ODM 3.0mm Fiber Optic ST Connector for Indoor Distribution Patch Cord
Mode Type	Single mode / Multi mode
Cable Diameter	0.9mm / 2.0mm / 3.0mm
Insertion Loss	≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥ 60dB
Wavelength	1310nm / 1550nm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Additional Connector Options

Connector Types	LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Types	Single mode or Multimode
Cable Types	0.9mm / 2.0mm / 3.0mm

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customized to your requirements
MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
