Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

2MM fiber optic st connector

,

0.3dB st type fiber optic connector

Product Description

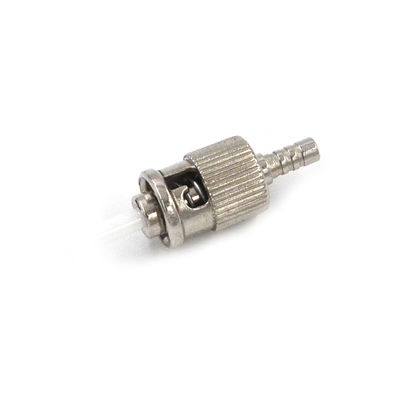

Single Mode ST PC SX 0.3dB Fibre Optic ST Connector

ST PC SX pre-assembly connector components for 2.0mm and 3.0mm fiber optic cables. The ST connector features a quick-release bayonet-style body and spring-loaded ferrule, commonly used in networking applications.

FibreFab manufactures a comprehensive range of ST connectors suitable for various applications, available in singlemode PC and multimode PC configurations. These connectors come with standard boots compatible with 900µm, 2mm, and 3mm cable diameters.

Most optical fiber connectors are spring-loaded, ensuring fiber faces are pressed together when connectors are mated. This glass-to-glass or plastic-to-plastic contact eliminates signal losses caused by air gaps between joined fibers.

Key Features
  • Compliant with IEC 61754-2 and TIA 604-2 standards
  • Low insertion loss and back reflection
  • Bayonet-shaped housing for easy termination
  • Nickel plated brass body construction
  • Zirconia ceramic ferrule with high-end PC finish
  • RoHS and REACH SvHC compliant
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key
  • Telcordia style boots
  • Free-floating ceramic ferrule
Applications
  • Local area networks
  • Data processing networks
  • Distribution applications
  • Premises distribution
  • Test and laboratory equipment
Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body 0
Configuration Options
Connector Type Single Mode / Multimode
Color Blue / Green
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Technical Specifications
Product Name OEM/ODM 3.0mm Fiber Optic ST Connector for Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥ 60 dB
Wavelength 1310nm / 1550nm
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body 1
Additional Connector Types Available
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9mm / 2.0mm / 3.0mm
How to Order
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Customized to your requirements
  8. For MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
Tags:

fiber optic fast connector

fiber optic cable connectors

multimode fiber connectors

Good price online

Products Details

Home > Products >
Fiber Optic Connectors
>
Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
name
  • name
  • name
  • name
  • name

Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
New Light
Certification:
CE / ISO / RoHS
Model Number:
ST
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Minimum Order Quantity:
100
Price:
0.1~100
Packaging Details:
standard export package
Delivery Time:
7 working days
Payment Terms:
T/T,Western Union,MoneyGram,paypal
Supply Ability:
10,000 pcs per month
Highlight:

2MM fiber optic st connector

,

0.3dB st type fiber optic connector

Product Description
Single Mode ST PC SX 0.3dB Fibre Optic ST Connector

ST PC SX pre-assembly connector components for 2.0mm and 3.0mm fiber optic cables. The ST connector features a quick-release bayonet-style body and spring-loaded ferrule, commonly used in networking applications.

FibreFab manufactures a comprehensive range of ST connectors suitable for various applications, available in singlemode PC and multimode PC configurations. These connectors come with standard boots compatible with 900µm, 2mm, and 3mm cable diameters.

Most optical fiber connectors are spring-loaded, ensuring fiber faces are pressed together when connectors are mated. This glass-to-glass or plastic-to-plastic contact eliminates signal losses caused by air gaps between joined fibers.

Key Features
  • Compliant with IEC 61754-2 and TIA 604-2 standards
  • Low insertion loss and back reflection
  • Bayonet-shaped housing for easy termination
  • Nickel plated brass body construction
  • Zirconia ceramic ferrule with high-end PC finish
  • RoHS and REACH SvHC compliant
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key
  • Telcordia style boots
  • Free-floating ceramic ferrule
Applications
  • Local area networks
  • Data processing networks
  • Distribution applications
  • Premises distribution
  • Test and laboratory equipment
Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body 0
Configuration Options
Connector Type Single Mode / Multimode
Color Blue / Green
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Technical Specifications
Product Name OEM/ODM 3.0mm Fiber Optic ST Connector for Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥ 60 dB
Wavelength 1310nm / 1550nm
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Single Mode ST PC SX 0.3dB Fiber Optic Connector with Ceramic Ferrule and Nickel Plated Brass Body 1
Additional Connector Types Available
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9mm / 2.0mm / 3.0mm
How to Order
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Customized to your requirements
  8. For MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
Tags:

fiber optic fast connector

fiber optic cable connectors

multimode fiber connectors
