LC APC SX Pre Assembly 2.0mm Fiber Optic Connector with Low Insertion Loss and High Return Loss

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

APC simplex fiber optic connector

,

2.0mm multimode fiber lc connector

Product Description
LC APC SX Pre Assembly Components 2.0mm Fiber Optic Connectors
The FibreFab LC connector is a small form factor fiber optic connector that reduces space requirements on panels or outlets by 50%. This cost-effective solution simplifies movement, addition, and modification of connections. It features the standard RJ-style telephone connector design with an audible click upon engagement.
APC Connector Technology
APC (Angled Physical Contact) connectors minimize backreflection through a 5° to 15° angle-polish applied to end faces. This specialized polishing technique ensures optimal performance in sensitive optical applications.

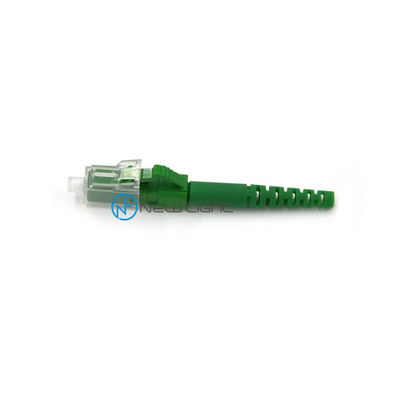

LC APC SX Pre Assembly 2.0mm Fiber Optic Connector with Low Insertion Loss and High Return Loss 0
Important: Angle-polished connectors must only be mated with other angle-polished connectors. Mating with non-angle polished connectors results in very high insertion loss. APC connectors are visually identified by green strain relief boots or green connector bodies and are designated with "/APC" suffix (e.g., LC/APC).
APC connectors typically achieve return loss greater than -65 dB when mated, compared to -55 dB for UPC connections. For unmated connectors, APC maintains -65 dB or greater return loss, while UPC connectors typically measure around 14 dB.
Key Features
  • Compliant with IEC 61754-20 and TIA 604-2 standards
  • Low insertion loss and back reflection
  • Bayonet-shaped housing for easy termination
  • Nickel plated brass body construction
  • Zirconia ceramic ferrule with high-end PC finish
  • RoHS and REACH SvHC compliant
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key
  • Telcordia style boots
  • Free-floating ceramic ferrule

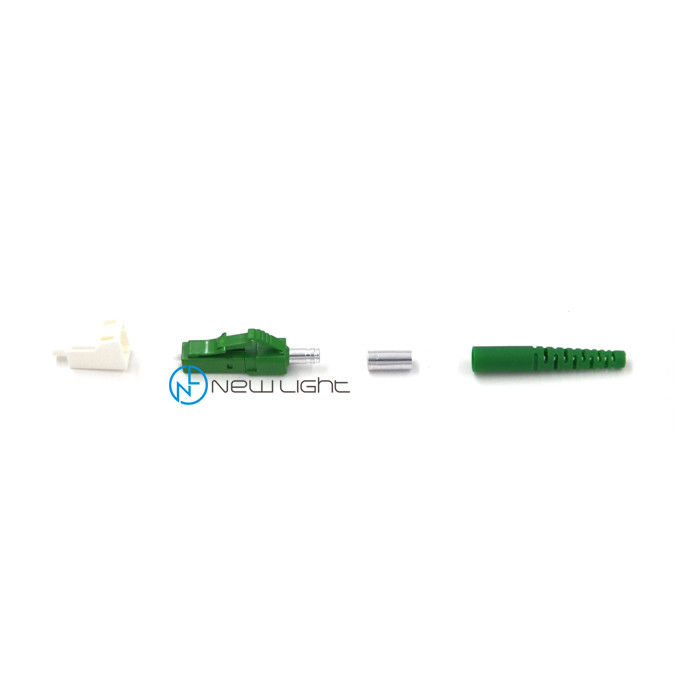

LC APC SX Pre Assembly 2.0mm Fiber Optic Connector with Low Insertion Loss and High Return Loss 1
Applications
  • Local area networks
  • Data processing networks
  • Distribution applications
  • Premises distribution
  • Test and laboratory equipment
Specifications
Connector Type Single Mode / Multimode
Color Blue / Green
Cable Diameter 0.9 / 2.0 / 3.0 mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310/1550
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (depending on quantity)

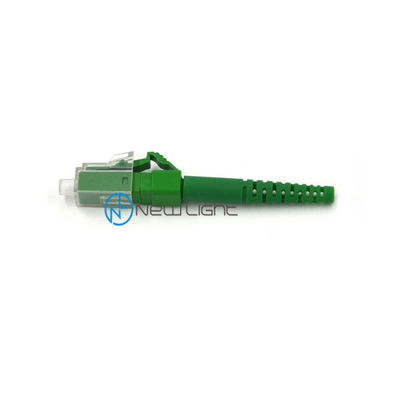

LC APC SX Pre Assembly 2.0mm Fiber Optic Connector with Low Insertion Loss and High Return Loss 2
Additional Connector Options
Connector Types LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Types Single Mode or Multimode
Cable Types 0.9 / 2.0 / 3.0 mm
Ordering Information
When placing an order, please specify the following details:
  • Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  • Mode type: Single mode (UPC and APC) / Multimode (PC)
  • Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  • Coating material: PVC / LSZH
  • Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
  • Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  • Patch cord length: Custom lengths available
  • For MPO/MTP connectors: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
Tags:

fiber optic fast connector

fiber optic cable connectors

multimode fiber connectors
