Product Details:
|
| Material: | Metal | Mode Type: | Single Mode / Multi Mode |
|---|---|---|---|
| Connector Type: | 3.0mm | Insertion Loss: | <0.3dB |
| Certificate: | CE , ISO , RoHS | Return Loss: | PC≥40 UPC≥50 APC≥60 DB |
| Highlight: | APC simplex fiber optic connector,2.0mm multimode fiber lc connector |
||

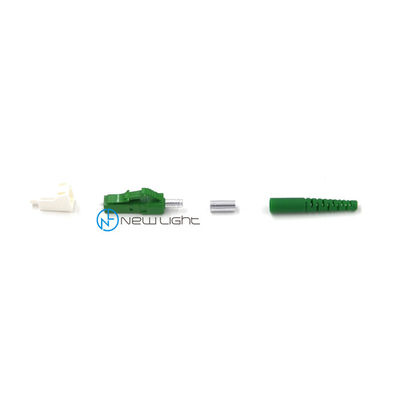

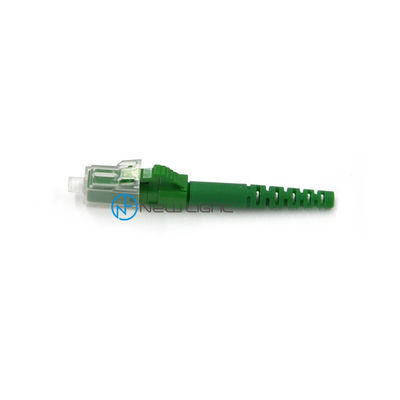

LC APC SX Pre-assembly Connector Components 2.0mm 3.0mm fibre optic LC connector
The FibreFab LC connector is a small form factor fibre optic connector. The LC connector helps to reduce space on panels or outlets by 50%. It is cost effective as it simplifies movement, addition and modification. It uses the standard RJ-style telephone connector which gives an audible click upon engaging.
APC Connector is a type of fiber connector that minimizes backreflection due to a 5° to 15° angle-polish applied to end faces. Like illustrated in the following picture.
Angle-polished connectors should only be mated to other angle-polished connectors. Mating to a non-angle polished connector causes very high insertion loss. Generally angle-polished connectors have higher insertion loss than good quality straight physical contact ones.
“Ultra” quality connectors may achieve comparable back reflection to an angled connector when connected, but an angled connection maintains low back reflection even when the output end of the fiber is disconnected .
Angled-polished connections are distinguished visibly by the use of a green strain relief boot, or a green connector body. The parts are typically identified by adding “/APC” to the name.
For example, an angled FC connector may be designated FC/APC, an angled LC connector may be designated LC/APC, etc.
The value of return loss for mated APC connectors in the field will typically be greater than -65 dB. For a UPC connection, it is normally -55 dB.
When connectors are unmated—such as unused ports in an FTTP distribution frame—the return loss for APC connectors is -65 dB or greater, compared to UPC connectors that will be in the neighborhood of 14 dB.
Features:
► Complies with IEC 61754-20 and TIA 604-2
► Low insertion loss and back reflection
► Bayonet shaped housing for easy termination
► Nickel plated brass body
► Zirconia ceramic ferrule with high end PC finish
► RoHS, REACH SvHC compliant
Applications:
► Local area networks
► Data processing networks
► Distribution application
► Premises distribution
► Test and laboratory equipmen
Ease of use
| connector type | single mode / multimode |
| color | blue / Green |
| cable | 0.9/2.0/3.0 |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Parameter
| products name | OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord |
| mode type | single mode / multi mode |
| cable diameter | 0.9 /2.0 / 3.0 mm |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥60 dB |
| wave length | 1310/1550 |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
more connector for reference
| Connector type | LC / SC / FC / FC / E2000 / MPO /MTRJ /SMA |
| Mode type | single mode or multimode |
| Cable type | 0.9 / 2.0 / 3.0 mm |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
