3M Length High Speed Transmission Single Mode LC LC Fiber Optic Patch Cord

Brand Name:	New Light
Model Number:	LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

3M Length High Speed Transmission Fiber Optic Patch Cord Lc Lc

Length:

3meters

Cable Color:

YELLOW

Connector:

LC -LC

Cable Diameter:

2.0mm

Fiber Type:

9/125um

Insertion Loss:

≤0.25dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥60dB

Polish:

APC

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Product Name:

3M Length High Speed Transmission Fiber Optic Patch Cord Lc Lc

Length:

3meters

Cable Color:

YELLOW

Connector:

LC -LC

Cable Diameter:

2.0mm

Fiber Type:

9/125um

Insertion Loss:

≤0.25dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥60dB

Polish:

APC

Real Factory:

Yes

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Supply Ability:

1000000

Highlight:

2.0mm lc lc fiber patch cord

3M lc lc duplex patch cord

Product Description

High Speed Transmission 3M Fiber Optic Patch Cord LC-LC

This high-performance 3-meter fiber optic patch cord features LC-LC connectors and is designed for reliable high-speed data transmission in demanding industrial and telecommunications applications.

Product Overview

This single-mode duplex LC fiber patch cord utilizes 9/125μm fiber with a yellow PVC jacket. The standard 2.0mm or 3.0mm diameter cables offer flexible deployment options. Connectors include protective clips unless specified otherwise during ordering.

Technical Specifications

Parameter	Specification
Product Name	3M Length High Speed Transmission Fiber Optic Patch Cord LC-LC
Mode Type	Single-mode
Cable Configuration	Duplex
Core Type	G657d
Cable Color	Yellow
Insertion Loss	≤ 0.25dB
Return Loss	UPC ≥50 dB, APC ≥60dB
Wavelength	1310/1550nm
Fiber Core	9/125μm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery

Typical Applications

FTTA and FTTH Applications
3G, 4G, 5G Base Stations
Horizontal and Vertical Cabling
BBU, RRU, RRH, LTE Systems

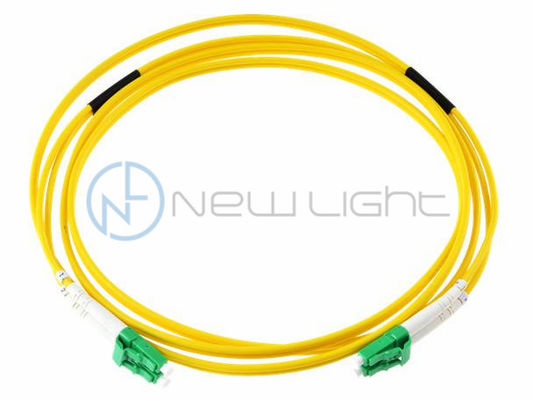

Product Images

Ordering Information

Customize your patch cord by specifying the following parameters:

Connector Type: SC, FC, LC, ST, MPO, MTP, MU, MTRJ, E2000, SMA
Mode Type: Single mode (UPC and APC) / Multi mode (PC)
Cable Diameter: 0.9mm, 2.0mm, 3.0mm (custom diameters available)
Coating Material: PVC or LSZH
Fiber Count: Simplex, duplex, 4-core, 6-core, 8-core, 12-core, 24-core, 48-core, 96-core
Cable Type: G652D, G657A1, G657A2, G655, OM1, OM2, OM3-150, OM3-300, OM4, OM5
Patch Cord Length: Customizable to your requirements

Note for MPO/MTP Orders: Please specify connection method (A/B/C type), gender (male/female), and fiber count (4/8/12/16/24/32 fiber).

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China with extensive production capabilities.

What is your minimum order quantity (MOQ)?

MOQ is 1 piece, though larger quantities receive more competitive pricing.

What is your quality assurance process?

We adhere to IEC and European standards with imported production equipment in near dust-free environments. All products undergo 100% testing before delivery.

What is your lead time?

Standard lead time is 5-15 working days, with expedited options available. We can process 5,000 pieces in 2-3 working days for urgent requirements.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements.

Can I request samples?

Free samples available for patch cords, adaptors, and attenuators (freight prepaid). For high-value products, sample charges apply but are refundable with order placement.

Packaging Example
