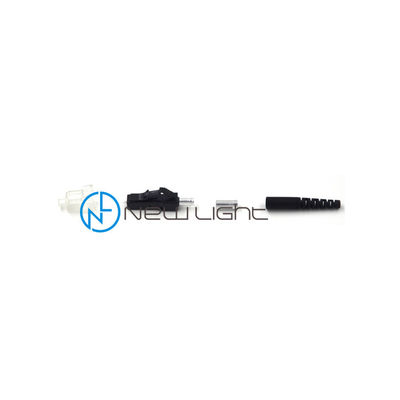

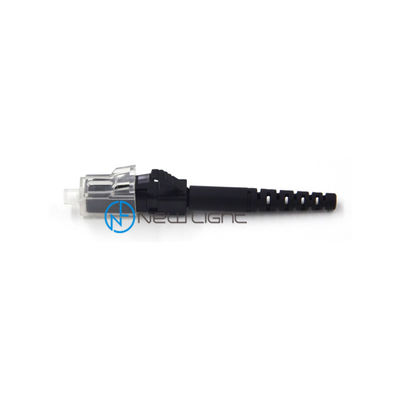

3.0mm LC Fiber Optic Connector with Low Insertion Loss and APC/PC Options for Reliable Connectivity

Brand Name:	New Light
Model Number:	ST
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

2.0mm fiber optic lc connector

Simplex lc fiber optic connector

Product Description

LC PC/APC Simplex/Duplex Fiber Optic Connectors

Precision fiber optic connectors available in 2.0mm and 3.0mm configurations for simplex and duplex applications, supporting both PC and APC polish types.

Product Overview

These LC fiber optic connectors provide reliable mechanical alignment for fiber-optic connections, featuring interconnect sleeves that securely hold ferrules together. Available with flange or flange-free designs to optimize panel space utilization.

Configuration Options

Single-mode and multimode compatibility
Zirconia sleeves (single-mode) or phosphor bronze sleeves (multimode)
0.9mm, 2.0mm, and 3.0mm boot sizes
PC (Physical Contact) and APC (Angled Physical Contact) polish types

APC Connector Technology

APC connectors feature a 5° to 15° angle-polished end face that minimizes back reflection, making them ideal for applications requiring superior signal integrity.

Important: Angle-polished APC connectors must only be mated with other APC connectors. Mating with non-angle polished connectors will result in high insertion loss.

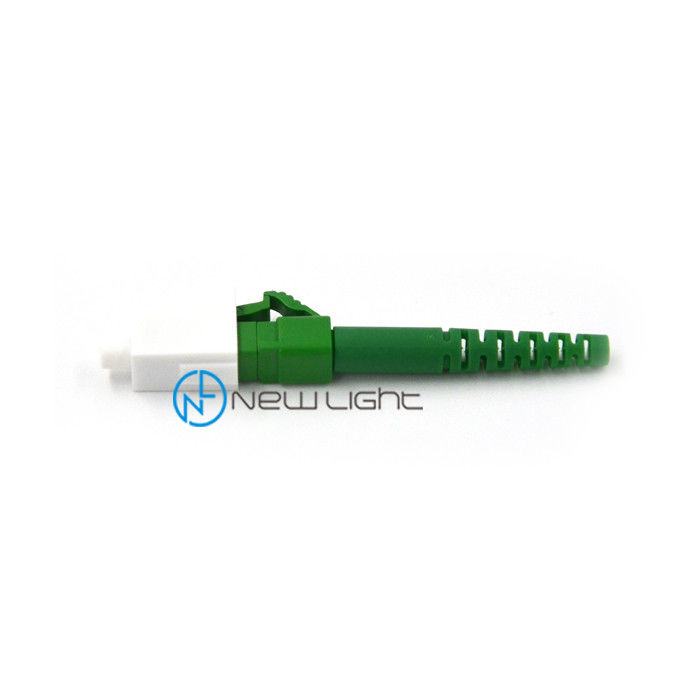

APC connectors are visually identified by green strain relief boots or green connector bodies and are designated with "/APC" suffix (e.g., LC/APC, FC/APC).

Performance Specifications

Return loss (mated APC): Greater than -65 dB
Return loss (mated UPC): Typically -55 dB
Unmated APC return loss: -65 dB or greater
Unmated UPC return loss: Approximately 14 dB

Key Features

Low insertion loss and back reflection loss
Pre-domed ferrule end surface
Precision anti-rotation key
Nickel plated brass body
Telcordia style boots
Free-floating ceramic ferrule
Compliant with ROHS standards
Meets JIS5974 and Bellcore GR-326 standards
Compliant with IEC874-14 & IEC874-19

Technical Parameters

Parameter	Specification
Mode Type	Single mode / Multi mode
Cable Diameter	0.9mm / 2.0mm / 3.0mm
Insertion Loss	≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥ 60 dB
Wavelength	1310nm / 1550nm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Available Connector Types

We offer a comprehensive range of fiber optic connectors to meet diverse application requirements:

Connector Type	Mode Type	Cable Type
LC / SC / FC / ST / E2000 / MPO / MTRJ / SMA	Single mode or multimode	0.9mm / 2.0mm / 3.0mm

Applications

Local area networks
Data processing networks
Distribution applications
Premises distribution
Test and laboratory equipment

Ordering Information

To place an order, please specify the following parameters:

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Custom length as required
MPO/MTP specific: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)

OEM/ODM Services: Custom configurations and private labeling available upon request.
