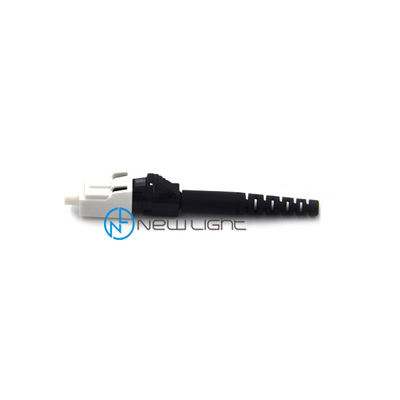

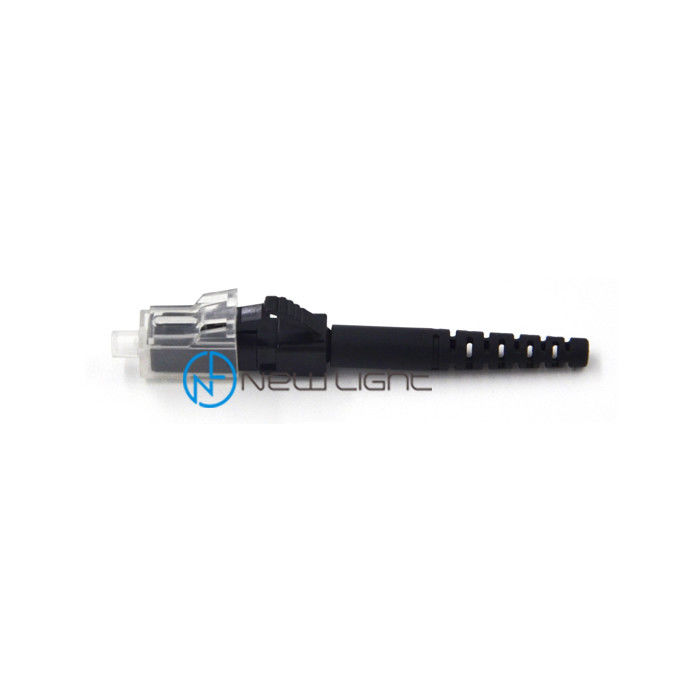

PC Multimode 0.9 / 2.0 / 3.0mm LC Fiber Optic Connector with Low Insertion Loss <0.3dB

Brand Name: New Light
Model Number: ST
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

3.0mm lc duplex connector

,

Simplex lc multimode connector

Product Description
PC Multimode Simplex / Duplex 0.9 / 2.0 / 3.0mm LC Fiber Optic Connector
The LC connector, developed by New Light Optics Technologies, represents an evolutionary approach to achieving SFF (small form factor) connector goals. It utilizes traditional SC duplex connector components with ceramic ferrules and housings scaled down by half for compact performance.
Connector Overview
The LC connector family includes simplex designs and duplex connectors available in both single mode and multimode tolerances, all featuring RJ-style latch mechanisms for secure connections.
PC Multimode 0.9 / 2.0 / 3.0mm LC Fiber Optic Connector with Low Insertion Loss <0.3dB 0
Angled Polish Considerations
Angle-polished connectors (APC) must only mate with other angle-polished connectors to prevent high insertion loss. These connectors feature green strain relief boots or green connector bodies and provide superior return loss performance compared to UPC connectors.
Return loss specifications: APC connectors exceed -65 dB when mated, while UPC connectors typically achieve -55 dB. Unmated APC connectors maintain -65 dB return loss, significantly better than unmated UPC connectors at approximately 14 dB.
Technical Features
  • Single mode and Multimode compatibility
  • Zirconia or Phosphor bronze sleeves
  • Available with or without flanges for space-saving duplex configurations
  • Compliant with JIS5974, Bellcore GR-326, IEC874-14 & IEC874-19 standards
  • All components ROHS compliant
  • Low insertion loss and back reflection loss
  • Multiple boot color options
  • 0.9/2.0/3.0mm boot sizes
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key
  • Nickel plated brass body
  • Telcordia style boots
  • Free-floating ceramic ferrule
PC Multimode 0.9 / 2.0 / 3.0mm LC Fiber Optic Connector with Low Insertion Loss <0.3dB 1
Applications
  • Local area networks
  • Data processing networks
  • Distribution applications
  • Premises distribution
  • Test and laboratory equipment
Specifications
Connector Type Single Mode / Multimode
Color Blue / Green
Cable Diameter 0.9/2.0/3.0 mm
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single mode / Multi mode
Cable Diameter 0.9 / 2.0 / 3.0 mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310/1550
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Additional Connector Options
PC Multimode 0.9 / 2.0 / 3.0mm LC Fiber Optic Connector with Low Insertion Loss <0.3dB 2
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single mode or Multimode
Cable Type 0.9 / 2.0 / 3.0 mm
Ordering Information
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Custom lengths available
  8. MPO/MTP connectors: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
Tags:

fiber optic fast connector

fiber optic cable connectors

multimode fiber connectors
