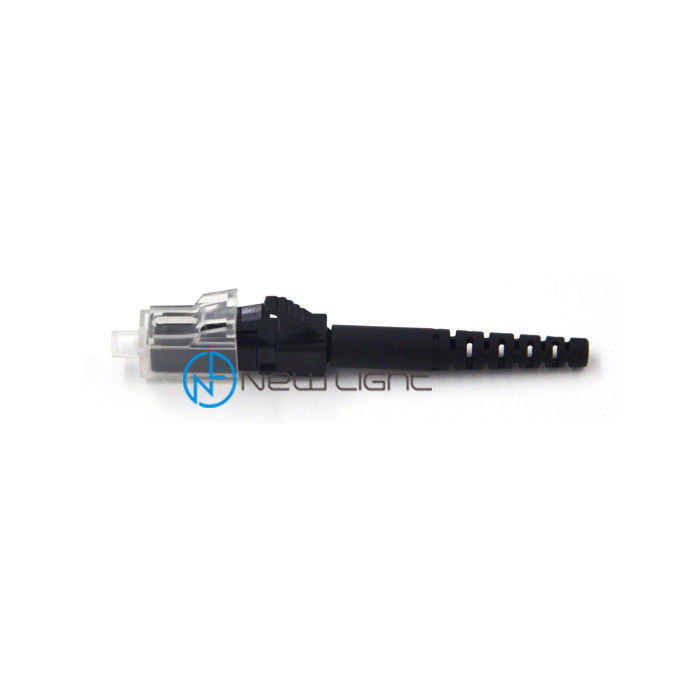

PC Multimode Simplex / Duplex 0.9 / 2.0 / 3.0mm Lc Fiber Optic Connector

0.9 / 2.0 / 3.0mm PC multimode simplex / duplex lc fiber optic connector

LC connector was developed by New Light Optics Technologies and is a more evolutionary approach to achieving the goals of a SFF (small form factor) connector.
LC connector utilizes traditional components of a SC duplex connector having independent ceramic ferrules and housings with the overall size scaled down by one half.
The LC family of connectors includes a stand-alone simplex design; and the duplex connector available in both single mode and multimode tolerances, all designed using the RJ-style latch.
Optical fiber connectors, it is the two end precision optical fiber optic jumper,dock up according to the transmission medium can be divided into common silicon-based optical single-mode, multi-mode jumpers, and other such as plastic for transmission medium of fiber optic jumper cables,By connecting head structure forms can be divided into: FC jumper cables, SC jumpers, ST jumper cables, LC jumper cables,MTRJ jumper cables, MPO jumper cables, MU jumper cables, SMA jumper cables.

Angle-polished connectors should only be mated to other angle-polished connectors. Mating to a non-angle polished connector causes very high insertion loss. Generally angle-polished connectors have higher insertion loss than good quality straight physical contact ones.
“Ultra” quality connectors may achieve comparable back reflection to an angled connector when connected, but an angled connection maintains low back reflection even when the output end of the fiber is disconnected .

Angled-polished connections are distinguished visibly by the use of a green strain relief boot, or a green connector body. The parts are typically identified by adding “/APC” to the name.
For example, an angled FC connector may be designated FC/APC, an angled LC connector may be designated LC/APC, etc.

The value of return loss for mated APC connectors in the field will typically be greater than -65 dB. For a UPC connection, it is normally -55 dB.
When connectors are unmated—such as unused ports in an FTTP distribution frame—the return loss for APC connectors is -65 dB or greater, compared to UPC connectors that will be in the neighborhood of 14 dB.

Features:

Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
Available without flanges or with flange for duplex, saving panel space
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Low insertion loss and back reflection loss
Boots in a variety of colors
0.9/2.0/3.0mm boot

t

Applications:

► Local area networks

► Data processing networks

► Distribution application

► Premises distribution

► Test and laboratory equipmen

Ease of use

Features:

---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule



Parameter

more connector for reference

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
