0.9mm and 3.0mm LC SX Fiber Optic Connector with Low Insertion Loss for LANs WANs

Brand Name:	New Light
Model Number:	LC
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

3.0mm LC To LC Connector

0.9mm LC To LC Connector

0.9mm lc to lc adapter

Product Description

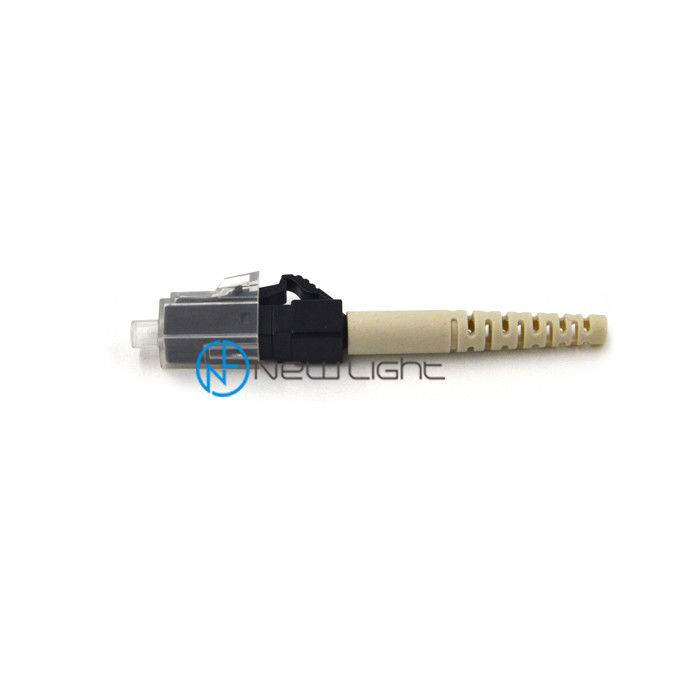

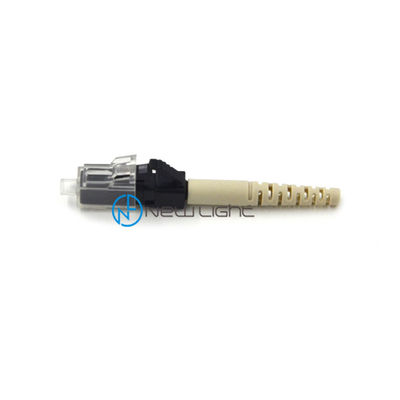

LC SX 0.9mm 3.0mm LC to LC Fiber Optic Connector

Single mode and multimode LC SX connectors available in 0.9mm, 2.0mm, and 3.0mm cable diameters for LC to LC connectivity.

Fiber optic connectors are precision components that align microscopic glass fibers to transmit light pulses. Unlike electrical connectors, they require exact alignment for optimal performance. Key design elements include the ferrule, connector body, and coupling mechanism.

LC connectors feature a mechanical design with interconnect sleeves that securely hold ferrules together. Plastic housing with flange-type construction includes ceramic sleeves for single mode and bronze sleeves for multimode applications.

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Precision Installations
Wide Area Networks (WANs)
Industrial, Medical & Military Applications

Key Features

Low insertion loss and back reflection
One-piece construction with pull-proof design
Free-floating pre-radiused ceramic ferrule
Precision anti-rotation key and corrosion-resistant body
Variety of boot types and colors available

APC Connector Technology

APC (Angled Physical Contact) connectors minimize backreflection through 5° to 15° angle-polished end faces. These connectors must only be mated with other angle-polished connectors to prevent high insertion loss.

APC connectors are identifiable by green strain relief boots or green connector bodies and are designated with "/APC" suffix (e.g., LC/APC). They provide superior return loss performance exceeding -65 dB when mated.

Technical Specifications

Parameter	Specification
Product Name	OEM/ODM 3.0mm Fiber Optic LC Connector
Mode Type	Single Mode / Multi Mode
Cable Diameter	0.9mm / 2.0mm / 3.0mm
Insertion Loss	≤ 0.3dB (low insertion loss ≤ 0.35dB)
Return Loss	≥ 60 dB
Wavelength	1310nm / 1550nm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days

Compatible Connector Types

Available in various connector types including LC, SC, FC, E2000, MPO, MTRJ, and SMA configurations for single mode or multimode applications with 0.9mm, 2.0mm, or 3.0mm cable diameters.

Ordering Information

When ordering, please specify:

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
Cable Diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4-core / 6-core / 8-core / 12-core / 24-core / 48-core / 96-core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Custom lengths available
MPO/MTP Specifications: Method type (A/B/C), gender (male/female), fiber count
