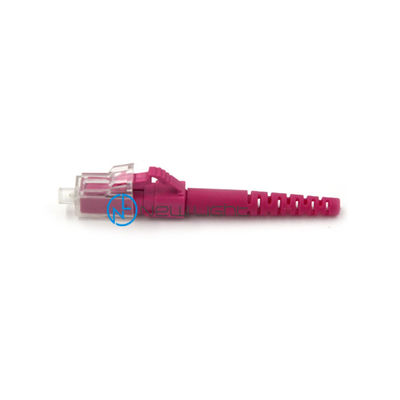

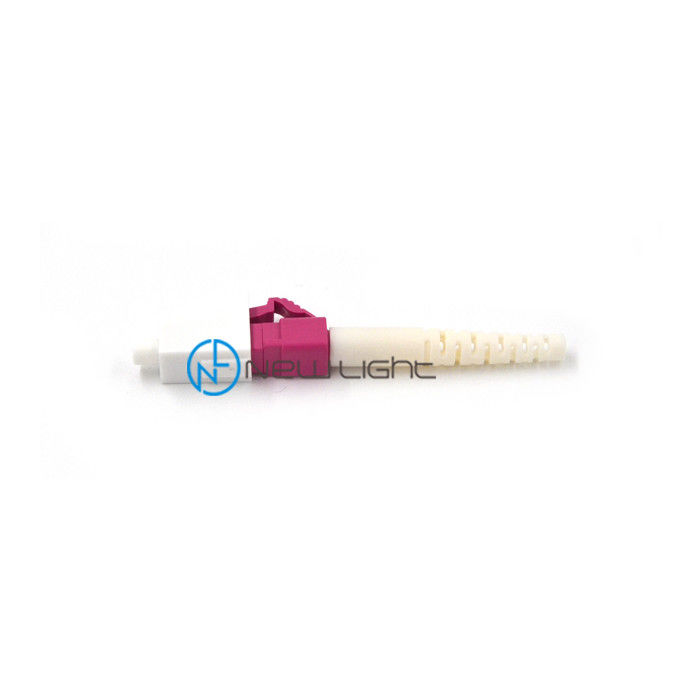

Multimode LC Fiber Connector 3.0mm with Low Insertion Loss for High-Density Applications

Brand Name: New Light
Model Number: LC
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

3.0mm LC Fiber Connector

,

2.0mm LC Fiber Connector

,

3.0mm lc fiber optic connector

Product Description
Multimode LC SX 2.0mm 3.0mm LC Fiber Connector
Simplex/duplex multimode LC SX connector available in 0.9mm, 2.0mm, and 3.0mm sizes. Considered a modern replacement for SC connectors, the LC connector features a push-pull latch mechanism and smaller ferrule, making it ideal for high-density applications in datacoms and networking environments.
Standards Compliance
  • Telcordia GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies
  • IEC 874-1 Generic specification for fiber optic connectors and cables
  • ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
  • Cable flame resistant rate: OFNR or IEC60332-3 standard
Product Features
100% tested on optical performance (Insertion Loss & Return Loss)
Available in Yellow, Orange, Aqua, or Purple (custom colors available)
Cable outer jacket in PVC or Low Smoke Zero Halogen (LSZH)
PC, UPC, APC connector types available
High concentricity ceramic ferrules (2.5mm for FC/ST/SC, 1.25mm for LC/MU)
Compatible with G652D, G657A, OM1, OM2, OM3, and OM4 fibers
Position A/Position B markings
Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes
Applications
  • CATV Systems
  • Active Device Termination
  • Telecommunication Networks
  • Metro Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Test Equipment
  • Precise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military Applications
Technical Features
  • Low insertion loss and back reflection
  • One-piece construction and pull-proof design
  • Free-floating pre-radiused ceramic ferrule
  • Precision anti-rotation key and corrosion resistant body
  • Variety of boot types and colors
APC Connector Information
APC (Angled Physical Contact) connectors minimize backreflection through a 5° to 15° angle-polish applied to end faces. These connectors should only be mated with other angle-polished connectors to prevent high insertion loss.
Multimode LC Fiber Connector 3.0mm with Low Insertion Loss for High-Density Applications 0
Angled-polished connections are identified by green strain relief boots or green connector bodies and are designated with "/APC" suffix (e.g., LC/APC, FC/APC). APC connectors typically achieve return loss greater than -65 dB when mated, compared to -55 dB for UPC connectors.
Additional Specifications
  • Complies with IEC 61754-20 and TIA 604-2
  • Bayonet shaped housing for easy termination
  • Nickel plated brass body
  • Zirconia ceramic ferrule with high end PC finish
  • RoHS, REACH SvHC compliant
Multimode LC Fiber Connector 3.0mm with Low Insertion Loss for High-Density Applications 1
Configuration Options
Connector Type Single Mode / Multimode
Color Blue / Green
Cable 0.9mm / 2.0mm / 3.0mm
Technical Parameters
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310nm / 1550nm
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Multimode LC Fiber Connector 3.0mm with Low Insertion Loss for High-Density Applications 2
Available Connector Types
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9mm / 2.0mm / 3.0mm
Ordering Information
  1. Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
  3. Cable Diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
  4. Coating Material: PVC / LSZH
  5. Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
  6. Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch Cord Length: Custom according to requirements
  8. MPO/MTP Connector: Specify method (A type / B type / C type), male/female, fiber count (4/8/12/16/24/32 fiber)
