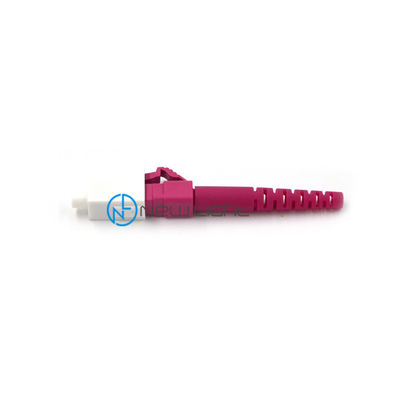

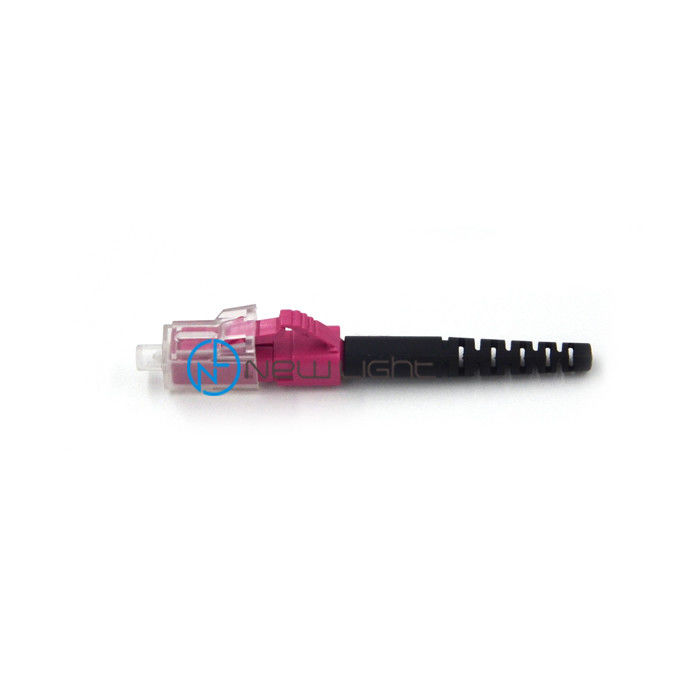

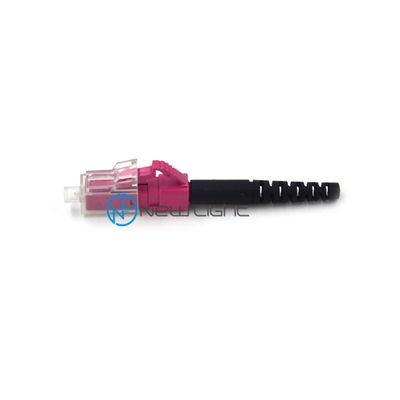

Quick Connect LC Fiber Optic Connector with 1.6mm and 1.8mm Options and Low Insertion Loss

Brand Name:	New Light
Model Number:	LC
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

1.8mm Fiber Optic Connectors

1.6mm Fiber Optic Connectors

1.6mm fiber optic quick connector

Product Description

Quick Connect CATV Fiber Optic Connectors

New Light offers a comprehensive range of fiber optic connectors including FC, SC, ST, LC, MU, MTRJ, and fast connector field assembly solutions. Our LC-LC fiber patch cables feature 2.5mm zirconia ferrules and support various cable diameters including 0.9mm, 1.6mm, 1.8mm, 2.0mm, and 3.0mm.

LC-LC Patch Cable Options

Simplex, duplex, or multi-fiber assemblies
PC, UPC, and APC polish types
Custom fiber optic cable lengths and jacket colors
0.9mm, 1.8mm, 2.0mm, and 3.0mm outer diameter cables
Jacket types: Riser, PVC, Plenum rated, or LSZH (all RoHS compliant)
Various fiber types and wavelengths including 9/125 single-mode fiber (SMF), 50/125 and 62.5/125 multi-mode fiber (MMF)

Standards Compliance

Telcordia GR-326-CORE for single-mode optical connectors and jumper assemblies
IEC 874-1 generic specification for fiber optic connectors and cables
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
Cable flame resistant rate: OFNR or IEC60332-3 standard

Product Features

100% tested on optical performance (Insertion Loss and Return Loss)
Standard colors: Yellow, Orange, Aqua, or Purple (custom colors available)
Cable outer jacket available in PVC or Low Smoke Zero Halogen (LSZH)
PC, UPC, APC connector types available
High concentricity ceramic ferrules: 2.5mm for FC, ST, SC and 1.25mm for LC, MU
Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types
Position A/Position B markings
Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm cable sizes

Applications

CATV systems
Active device termination
Telecommunication networks
Metro networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Precise installations
Wide Area Networks (WANs)
Industrial, medical & military applications

Technical Features

Low insertion loss and back reflection
One-piece construction and pull-proof design
Free-floating pre-radiused ceramic ferrule
Precision anti-rotation key and corrosion resistant body
Variety of boot types and colors

APC Connector Technology

APC (Angled Physical Contact) connectors minimize backreflection through an 8° angle-polish applied to end faces. These connectors feature green strain relief boots or green connector bodies for easy identification and provide return loss greater than -65 dB when mated.

APC connectors maintain superior performance with return loss values exceeding -65 dB for mated connections and unmated ports, significantly outperforming UPC connectors.

Additional Features

Complies with IEC 61754-20 and TIA 604-2 standards
Low insertion loss and back reflection
Bayonet shaped housing for easy termination
Nickel plated brass body
Zirconia ceramic ferrule with high end PC finish
RoHS, REACH SvHC compliant

Specifications

Parameter	Specification
Product Name	OEM/ODM 3.0mm Fiber Optic ST Connector
Mode Type	Single mode / Multi mode
Cable Diameter	0.9mm / 2.0mm / 3.0mm
Insertion Loss	≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥60 dB
Wavelength	1310/1550 nm
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Available Connector Types

Connector Type	Mode Type	Cable Type
LC / SC / FC / E2000 / MPO / MTRJ / SMA	Single mode or Multimode	0.9mm / 2.0mm / 3.0mm

Ordering Information

To place an order, please specify the following details:

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Custom lengths available
For MPO/MTP connectors: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
