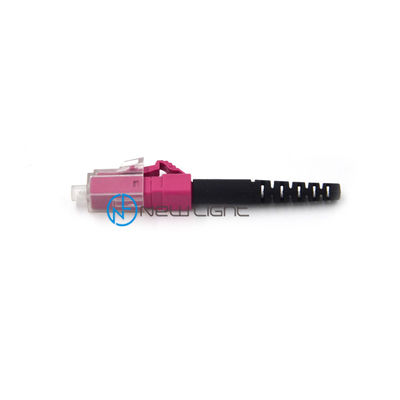

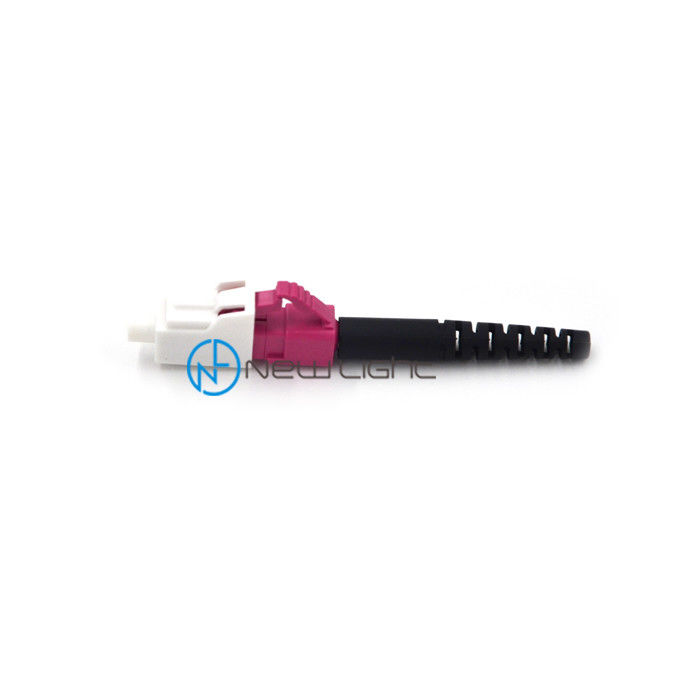

Simplex Duplex LC 2.0mm Fiber Optic Fast Connector with 60dB Return Loss and Low Insertion Loss

Brand Name: New Light
Model Number: LC
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
2.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

60dB Fiber Optic Fast Connectors

,

2.0mm Fiber Optic Fast Connectors

,

60dB lc fiber optic connector

Product Description
Simplex / Duplex LC SX 2.0mm 60dB Fiber Optic Fast Connectors
New Light supplies fiber optic patch cables with various connector types and cable specifications. Our product range includes single mode and multimode fiber patch cables with connector options including LC, FC, SC, ST, MU, MTRJ, and E2000. Duplex fiber cables feature two fiber cores and are available in both multimode and singlemode configurations. Custom patch cables are available in any required length.
Standards Compliance
• Telcordia GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies
• IEC 874-1 Generic specification for fiber optic connectors and cables
• ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
• Cable flame resistant rate: OFNR or IEC60332-3 standard
Product Features
  • 100% tested on optical performance (Insertion Loss and Return Loss)
  • Standard colors: Yellow, Orange, Aqua, or Purple (custom colors available)
  • Cable outer jacket options: PVC or Low Smoke Zero Halogen (LSZH)
  • PC, UPC, and APC connector types available
  • High concentricity ceramic ferrules: 2.5mm for FC, ST, SC and 1.25mm for LC, MU
  • Available in G652D, G657A, OM1, OM2, OM3, and OM4 fiber types
  • Position A/Position B markings
  • Available in 0.9mm, 1.6mm, 2.0mm, and 3.0mm sizes
Applications
  • CATV Systems
  • Active device termination
  • Telecommunication networks
  • Metro networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Precise installations
  • Wide Area Networks (WANs)
  • Industrial, medical & military applications
Technical Features
  • Low insertion loss and back reflection
  • One-piece construction and pull-proof design
  • Free-floating pre-radiused ceramic ferrule
  • Precision anti-rotation key and corrosion resistant body
  • Variety of boot types and colors
APC Connector Information
APC (Angled Physical Contact) connectors minimize backreflection through an 8° angle-polish applied to end faces. These connectors feature green strain relief boots or green connector bodies for identification and are designated with "/APC" suffix (e.g., LC/APC, FC/APC).
Important: Angle-polished connectors must only be mated with other angle-polished connectors. Mating with non-angle polished connectors results in high insertion loss. APC connectors typically achieve return loss greater than -65 dB when mated, compared to -55 dB for UPC connections.
Simplex Duplex LC 2.0mm Fiber Optic Fast Connector with 60dB Return Loss and Low Insertion Loss 0
Additional Specifications
  • Compliant with IEC 61754-20 and TIA 604-2 standards
  • Bayonet shaped housing for easy termination
  • Nickel plated brass body construction
  • Zirconia ceramic ferrule with high-end PC finish
  • RoHS and REACH SvHC compliant
Simplex Duplex LC 2.0mm Fiber Optic Fast Connector with 60dB Return Loss and Low Insertion Loss 1
Product Configuration
Connector Type Single Mode / Multimode
Color Blue / Green
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Technical Parameters
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single Mode / Multi Mode
Cable Diameter 0.9mm / 2.0mm / 3.0mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310nm / 1550nm
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (depending on quantity)
Simplex Duplex LC 2.0mm Fiber Optic Fast Connector with 60dB Return Loss and Low Insertion Loss 2
Available Connector Types
Connector Type LC / SC / FC / E2000 / MPO / MTRJ / SMA
Mode Type Single Mode or Multimode
Cable Type 0.9mm / 2.0mm / 3.0mm
How to Order
Please specify the following when ordering:
  • Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  • Mode type: Single mode (UPC and APC) / Multi mode (PC)
  • Cable diameter: 0.9mm / 2.0mm / 3.0mm (custom diameters available)
  • Coating material: PVC / LSZH
  • Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
  • Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  • Patch cord length: Custom length as required
  • For MPO/MTP connectors: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
