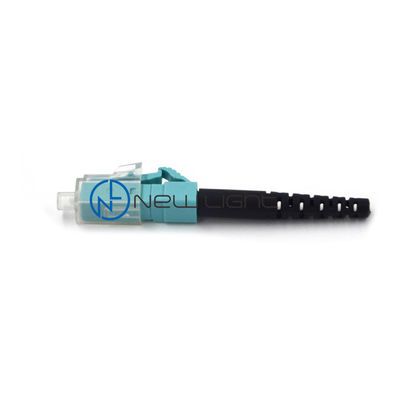

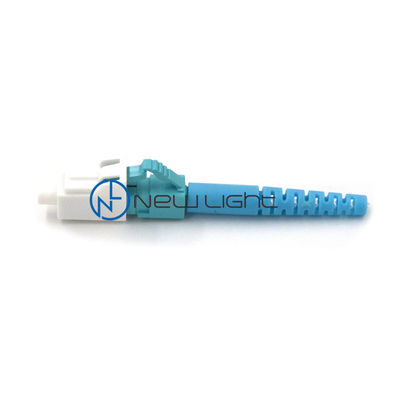

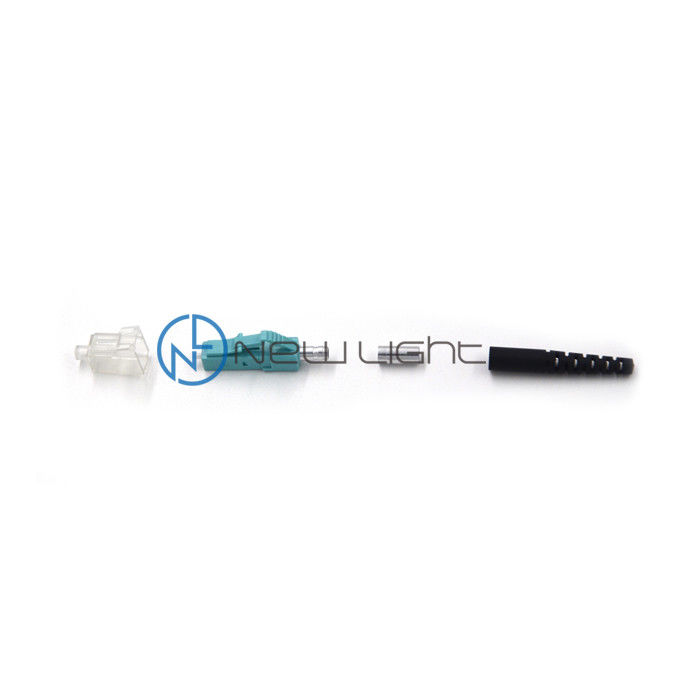

Aqua OM3/OM4 LC Fiber Optic Connector with 0.3dB Insertion Loss and 3.0mm Connector Type

Brand Name: New Light
Model Number: LC
MOQ: 100
Price: 0.1~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Mode Type:
Single Mode / Multi Mode
Connector Type:
3.0mm
Insertion Loss:
<0.3dB
Certificate:
CE , ISO , RoHS
Return Loss:
PC≥40 UPC≥50 APC≥60 DB
Supply Ability:
10,000 pcs per month
Highlight:

3.0mm Fibre Optic Cable Connector

,

0.3dB Fibre Optic Cable Connector

,

3.0mm fiber optic SX connector

Product Description
OM3 / OM4 Aqua LC SX 0.3dB 3.0mm Fibre Optic Cable Connector
High-performance fibre optic connectors designed for demanding LAN and telecommunications applications, available in various configurations to meet specific requirements.
Product Specifications
Cable Options: 0.9mm, 2.0mm, or 3.0mm subunit diameters
Configuration: Simplex or duplex types available
Fiber Types: Singlemode OS1/OS2, G657, G652 (9/125μm), OM1 (62.5/125μm), OM2, OM3, and OM4 (50/125μm)
Connector Types: ST, SC, LC, FC, MTRJ, SMA, E2000, MU
Polishing: PC, UPC, and APC available
Available Configurations
  • Simplex and duplex assemblies
  • Singlemode and multimode options
  • PC, UPC, and APC polishing
  • PVC and LSZH outer sheath
  • 0.9mm, 2.0mm, and 3.0mm cable sizes
  • Hybrid patch cords available upon request
  • Fan-out options (Ribbon type / bundle type)
  • Pigtail and loopback assemblies
  • Customized lengths available
  • 100% tested before shipping
Standards Compliance
  • Telcordia GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies
  • IEC 874-1 Generic specification for fiber optic connectors and cables
  • ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
  • Cable flame resistant rate: OFNR or IEC60332-3 standard
Key Features
  • 100% tested on optical performance (Insertion Loss and Return Loss)
  • Standard colors: Yellow, Orange, Aqua, or Purple (custom colors available)
  • Cable outer jacket: PVC or Low Smoke Zero Halogen (LSZH)
  • PC, UPC, APC connector types available
  • High concentricity ceramic ferrules (2.5mm for FC, ST, SC; 1.25mm for LC and MU)
  • Available in G652D, G657A, OM1, OM2, OM3 and OM4
  • Position A/Position B markings
  • Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes
Applications
  • CATV systems
  • Active device termination
  • Telecommunication networks
  • Metro networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Precise installations
  • Wide Area Networks (WANs)
  • Industrial, medical & military applications
APC Connector Technology
APC (Angled Physical Contact) connectors feature a 5° to 15° angle-polish on end faces to minimize backreflection. These connectors should only be mated with other angle-polished connectors and are distinguished by green strain relief boots or green connector bodies.
Performance Specifications:
Mated APC connectors: Return loss typically greater than -65 dB
Unmated APC connectors: Return loss of -65 dB or greater
UPC connectors: Return loss typically -55 dB when mated, approximately 14 dB when unmated
Aqua OM3/OM4 LC Fiber Optic Connector with 0.3dB Insertion Loss and 3.0mm Connector Type 0
Technical Specifications
Parameter Specification
Product Name OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type Single mode / Multi mode
Cable Diameter 0.9 / 2.0 / 3.0 mm
Insertion Loss ≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss ≥60 dB
Wavelength 1310/1550
Ferrule Material Ceramic
Operating Temperature -40°C to +85°C
OEM/ODM Acceptable
Warranty 3 years after delivery
Delivery Time 2-15 working days (according to quantity)
Additional Connector Options
Aqua OM3/OM4 LC Fiber Optic Connector with 0.3dB Insertion Loss and 3.0mm Connector Type 1
Connector Type Mode Type Cable Type
LC / SC / FC / E2000 / MPO / MTRJ / SMA Single mode or multimode 0.9 / 2.0 / 3.0 mm
Ordering Information
  1. Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  2. Mode type: Single mode (UPC and APC) / Multi mode (PC)
  3. Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  4. Coating material: PVC / LSZH
  5. Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
  6. Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  7. Patch cord length: Custom lengths available
  8. MPO/MTP specifications: Specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
