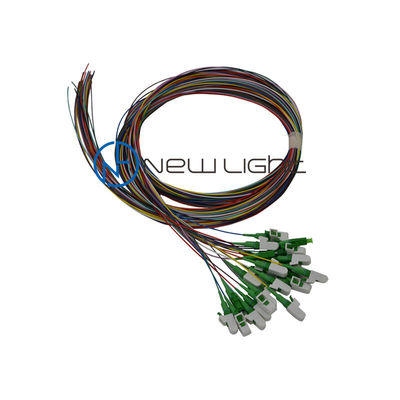

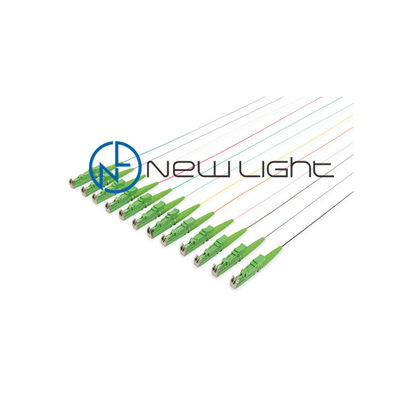

LSZH 12 Core 0.9mm Fiber Optic Pigtail and Jumper Cable for High-Speed Data Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

LSZH 12 Core 0.9mm Fiber Optic Pigtail and Jumper Cable for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

LSZH Distribution Fiber Optic Cable

0.9mm Distribution Fiber Optic Cable

LSZH fiber optic patch cables

Product Description

LSZH Loose Tube 12 Core 0.9mm Distribution Fiber Optic Cable

Product Overview

This 12-core fiber optic pigtail is available in both single mode and multimode versions, fully compatible with NTT-SC products. Both versions feature zirconia ceramic ferrules with pre-polished UPC profile and convex spherical ends for faster polishing, low back reflection, minimal optical loss, and maximum repeatability.

Contact: WHATSAPP 008613534063703

The fiber cable is available in 0.6mm or 0.9mm diameters, in loose tube or tight buffered configurations. Multimode options include OM1, OM2, OM3, and OM4 specifications. Custom 12-core configurations are available upon customer request.

Key Features

LC Fiber Optic Patchcord and Pigtail compatibility
Single mode and Multimode PC or 8° APC/9° APC options
Cable diameters: 0.9mm, 2.0mm, 2.4mm or 3.0mm
Available in simplex or duplex with 4, 6, 8, 12, 24, 48 core configurations
Customized lengths available
Cable colors: green, yellow, orange or custom designs
Cable materials: PVC, Hytrel, LSZH, OFNP, OFNR
ROHS compliant components
IEC standard compatible
GR-326-CORE compliant

Applications

FTTH (Fiber to the Home)
LANs, WANs, CATV, CCTV systems
Premise installations
Data processing networks
Industrial, mechanical and military applications
Test equipment and active device termination

Pigtails are specifically designed for splice applications when terminating outside plant cable. Each pigtail consists of a connector and a special length of fiber cable.

Product Specifications

Product Name	OM4 SC / PC Fiber Optic Pigtail, 1M Fiber Jumper Cables 12 Colors 0.9mm
Model Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0
Connector	SC/LC/FC/ST/MPO
Cable Length	Customized (1, 2, 3... meters)
Polishing	Pre-polished
Material	LSZH/PVC
Form of Sale	OEM/ODM
Use	Connect optical transmitter, receiver, and terminal box
Custom Design	Welcome
Sample Lead Time	1-3 days
Certificate	CE, ROHS
Advantage	Low IL, High RL

Technical Parameters

Parameter	Unit	FC, SC, LC	ST, MU	MT-RJ, MPO	E2000
Insertion Loss (typical)	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
Return Loss	dB	≥ 50	≥ 30	≥ 50	≥ 55
Operating Wavelength	nm	1310, 1550	1300(OM1)850	1310, 1550	1310, 1550
Exchangeability	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating Temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage Temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable Diameter	mm	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0

Application Examples

Frequently Asked Questions

Are you the real manufacturer?
Yes, we are the actual manufacturer with 15 years of industry experience.
What's the MOQ?
The minimum order quantity for fiber optic cable is 1km.
What's delivery time?
Standard delivery time is 5-7 days after order confirmation, depending on order quantity.
How to Store the Optical Fiber Cable Properly?
Store the drum indoors before use, placed sideways not on the end.
Can you supply customized products and logo?
Yes, we provide OEM service. You can send us your specifications.
What's your payment terms?
We accept T/T, L/C, Western Union, D/P etc. 30% advance payment and 70% before shipment.

Payment & Delivery Information

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram

Payment Terms: 30% deposit in advance, 70% balance paid before delivery

Packaging: International standard packaging (OPP bag + Carton Box)

Delivery Time: 2-7 working days after payment received (depending on quantity)

Warranty: 3 years after delivery

Shipping Methods: By air (DHL, TNT, UPS, Fedex), By sea (according to requirements)
