products details

Home > Products >

Fiber Optic Pigtail

12 Core 1.5M LC Fiber Optic Pigtail with 0.3dB Insertion Loss for Telecommunication Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core 1.5M LC Fiber Optic Pigtail with 0.3dB Insertion Loss for Telecommunication Networks

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3dB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

0.3dB LC Fiber Optic Pigtail

1.5M LC Fiber Optic Pigtail

0.3dB fiber optical pigtail

Product Description

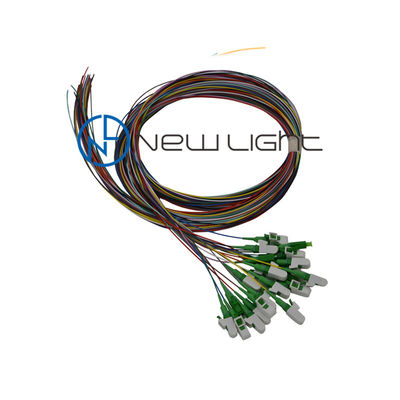

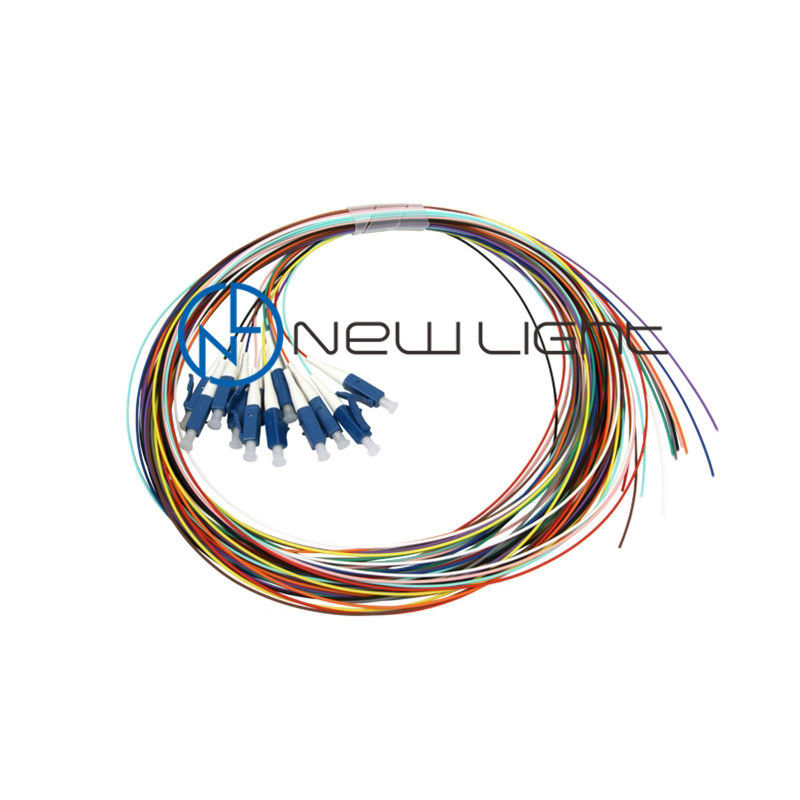

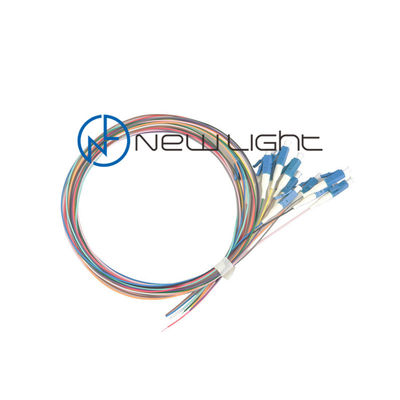

Telecommunication 12 Core 1.5M 0.3dB LC Fiber Optic Pigtail

Product Overview

1.5M tight tube single mode/multimode 12-core LC fiber optic pigtail designed for high-performance telecommunication applications.

Key Features

High Return Loss performance
Low Insertion Loss (≤ 0.3dB)
Excellent reliability and stability
Multiple polishing types: PC, UPC, and APC
Various interface options: FC, SC, ST, LC
Core configurations: 4, 6, 8, 12, 24 cores
IEC standard compatible
ROHS compliant components
GR-326-CORE compliant

Applications

Telecommunication systems
Computer networks
CATV networks
Active device termination
Instrumentation

Contact via WhatsApp: 008613534063703

Product Specifications

Product Name	OM4 SC/PC Fiber Optic Pigtail, 1M Fiber Jumper Cables 12 Colors 0.9mm
Model Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0 mm
Connector	SC/LC/FC/ST/MPO
Cable Length	Customizable (1, 2, 3 meters and beyond)
Material	LSZH/PVC
Certification	CE, ROHS

Technical Parameters

Parameter	Unit	FC, SC, LC	ST, MU	MT-RJ, MPO	E2000
Insertion Loss (typical)	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
Return Loss	dB	≥ 50-60	≥ 30-50	≥ 30-50	≥ 55-75
Operating Temperature	°C	-40 to 75
Storage Temperature	°C	-45 to 85

Application Examples

Frequently Asked Questions

Are you the manufacturer? Yes, we are the real manufacturer with 15 years of experience.
What's the MOQ? Minimum order quantity for fiber optic cable is 1km.
What's the delivery time? Typically 5-7 days after order confirmation, depending on quantity.
How to store optical fiber cable? Store drums indoors sideways, not on end.
Do you offer customization? Yes, we provide OEM service with custom designs and logos.
What are your payment terms? T/T, L/C, Western Union, D/P - 30% advance, 70% before shipment.

Payment & Delivery

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram

Terms: 30% deposit in advance, 70% balance paid before delivery

Packaging: International standard (OPP bag + Carton Box)

Delivery Time: 2-7 working days after payment receipt

Warranty: 3 years after delivery

Shipping: Air (DHL, TNT, UPS, FedEx) or Sea (as required)

Products Details

Home > Products >

Fiber Optic Pigtail

12 Core 1.5M LC Fiber Optic Pigtail with 0.3dB Insertion Loss for Telecommunication Networks

All Category

12 Core 1.5M LC Fiber Optic Pigtail with 0.3dB Insertion Loss for Telecommunication Networks

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

CE , ISO , RoHS

Model Number:

SC/ PC

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3dB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Minimum Order Quantity:

Price:

0.2~10

Packaging Details:

OPP bag + carton box

Delivery Time:

7 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram,paypal

Supply Ability:

1000000

Highlight:

0.3dB LC Fiber Optic Pigtail

1.5M LC Fiber Optic Pigtail

0.3dB fiber optical pigtail

Product Description

Telecommunication 12 Core 1.5M 0.3dB LC Fiber Optic Pigtail

Product Overview

1.5M tight tube single mode/multimode 12-core LC fiber optic pigtail designed for high-performance telecommunication applications.

Key Features

High Return Loss performance
Low Insertion Loss (≤ 0.3dB)
Excellent reliability and stability
Multiple polishing types: PC, UPC, and APC
Various interface options: FC, SC, ST, LC
Core configurations: 4, 6, 8, 12, 24 cores
IEC standard compatible
ROHS compliant components
GR-326-CORE compliant

Applications

Telecommunication systems
Computer networks
CATV networks
Active device termination
Instrumentation

Contact via WhatsApp: 008613534063703

Product Specifications

Product Name	OM4 SC/PC Fiber Optic Pigtail, 1M Fiber Jumper Cables 12 Colors 0.9mm
Model Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0 mm
Connector	SC/LC/FC/ST/MPO
Cable Length	Customizable (1, 2, 3 meters and beyond)
Material	LSZH/PVC
Certification	CE, ROHS

Technical Parameters

Parameter	Unit	FC, SC, LC	ST, MU	MT-RJ, MPO	E2000
Insertion Loss (typical)	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
Return Loss	dB	≥ 50-60	≥ 30-50	≥ 30-50	≥ 55-75
Operating Temperature	°C	-40 to 75
Storage Temperature	°C	-45 to 85

Application Examples

Frequently Asked Questions

Are you the manufacturer? Yes, we are the real manufacturer with 15 years of experience.
What's the MOQ? Minimum order quantity for fiber optic cable is 1km.
What's the delivery time? Typically 5-7 days after order confirmation, depending on quantity.
How to store optical fiber cable? Store drums indoors sideways, not on end.
Do you offer customization? Yes, we provide OEM service with custom designs and logos.
What are your payment terms? T/T, L/C, Western Union, D/P - 30% advance, 70% before shipment.

Payment & Delivery

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram

Terms: 30% deposit in advance, 70% balance paid before delivery

Packaging: International standard (OPP bag + Carton Box)

Delivery Time: 2-7 working days after payment receipt

Warranty: 3 years after delivery

Shipping: Air (DHL, TNT, UPS, FedEx) or Sea (as required)
