Multimode 12 Color 0.9mm Fiber Optic Pigtail for High-Speed Optical Transmission

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

0.9mm Fiber Optic Pigtail

1.5m Fiber Optic Pigtail

0.9mm multimode fiber pigtail

Product Description

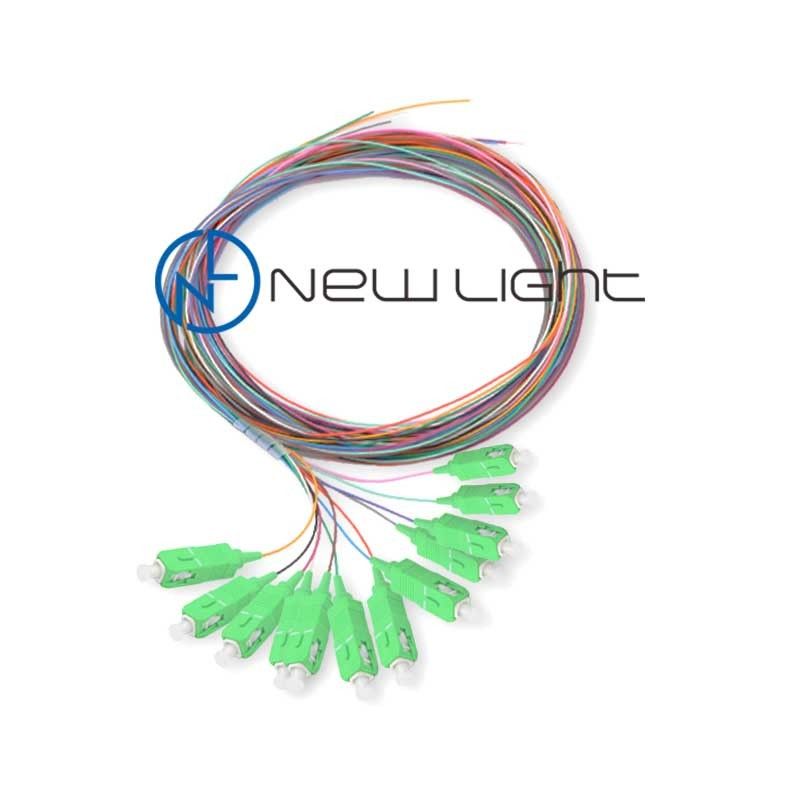

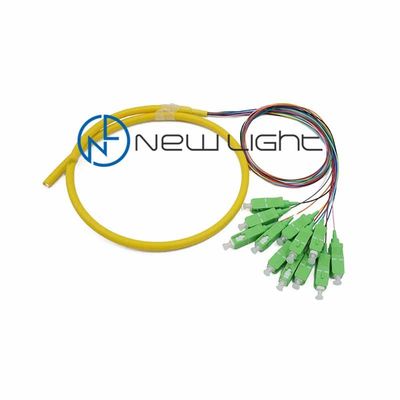

Multimode 12 Color SC 1.5m 0.9mm Fiber Optic Pigtail

This 1.5-meter multimode fiber optic pigtail with 0.9mm diameter and SC connector provides a reliable solution for field communication device installations. Manufactured according to industrial standards, these 12-color pigtails meet stringent mechanical and performance specifications.

Product Features

Low insertion loss and high return loss
Excellent repeatability and interchangeability
Available in PC, UPC, and APC polishing types
Compatible with FC, SC, ST, LC, and MU connectors
Suitable for high-speed, high-capacity optical fiber transmission systems
Available in single mode and multimode configurations
Fiber diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm
Custom lengths and types available per customer requirements
Ferrule end surface pre-domed for optimal performance
Excellent mechanical endurance
Green production compliant with CE and RoHS standards

Available Colors

Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua

Applications

Telecommunication systems
Computer networks
CATV networks
Active device termination
Instrumentation
Splice applications for outside plant cable termination

Product Specifications

Product Name	OM4 SC / PC Fiber Optic Pigtail, 1M Fiber Jumper Cables 12 Colors 0.9mm
Model Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0 mm
Connector	SC/LC/FC/ST/MPO
Cable Length	Customized (1, 2, 3 meters and beyond)
Polishing	Yes, polished
Material	LSZH/PVC
Form of Sale	OEM/ODM
Use	Connect optical transmitter, receiver, and terminal box
Sample Lead Time	1-3 days
Certificate	CE, ROHS
Advantage	Low IL, High RL

Technical Parameters

Parameter	Unit	FC, SC, LC	ST, MU	MT-RJ, MPO	E2000
Insertion loss (typical)	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
Return loss	dB	≥ 50 (SM PC/UPC) ≥ 60 (SM APC) ≥ 30 (MM PC)	≥ 50 (SM PC/UPC) ≥ 30 (MM PC)	≥ 50 (SM PC/UPC) ≥ 30 (MM PC)	≥ 55 (SM PC) ≥ 75 (SM APC)
Operating wavelength	nm	1310, 1550 (SM) 1300(OM1)850 (MM)	1310, 1550 (SM) 1300(OM1)850 (MM)	1310, 1550 (SM) 1300(OM1)850 (MM)	1310, 1550
Exchangeability	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0

Product Applications

Frequently Asked Questions

Are you the real manufacturer?
Yes, we are the manufacturer with 15 years of experience.
What's the MOQ?
The MOQ for Fiber Optic cable is 1km.
What's delivery time?
General delivery time is 5-7 days after order confirmation, depending on quantity.
How to Store the Optical Fiber Cable Properly?
Store the drum indoors before use, placed sideways not on the end.
Can you supply customized products and logo?
Yes, we provide OEM service. You can send us your specifications.
What's your payment terms?
We accept T/T, L/C, Western Union, D/P etc. 30% in advance and 70% before shipment.

Payment Terms and Delivery

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Package: International standard package (OPP bag + Carton Box)
Delivery Time: 2-7 working days after receiving payment (depending on quantity)
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, Fedex) or by sea (according to requirements)

Contact Us: WHATSAPP 008613534063703
