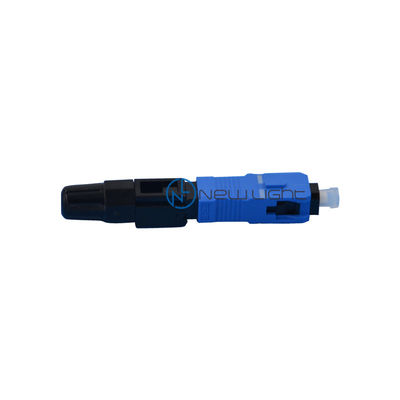

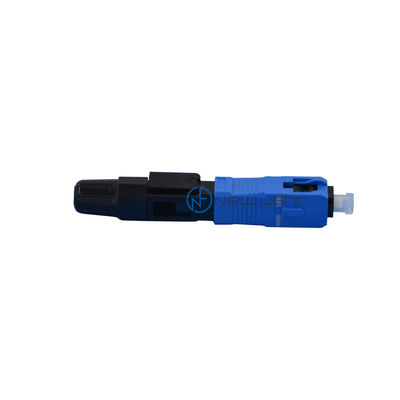

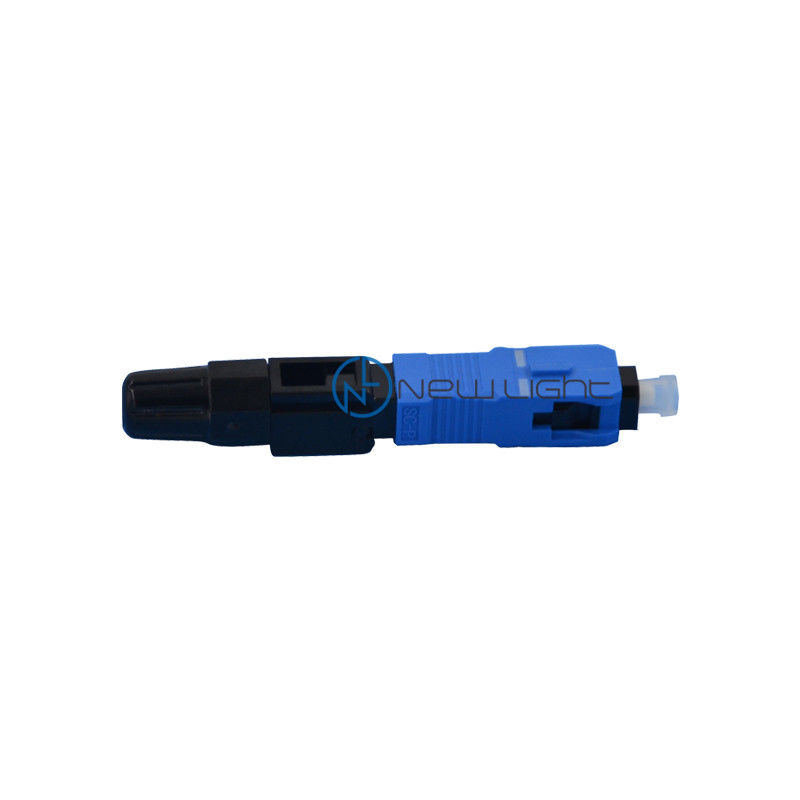

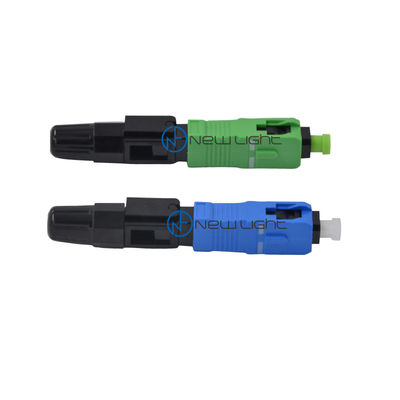

SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing

Brand Name: New Light
Model Number: NLFC001
MOQ: 100
Price: 0.26~0.7
Packaging Details: standard packing
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE , ISO , RoHS
Type:
Quick Assembly Connector
Application:
Field Assembly
Insert Loss:
≤0.3dB
Storage Temperature:
-40℃ - +85℃
Model Number:
SC / APC
Tensile Strength:
>90N
Suitable For Cable:
0.9 / 2.0 / 3.0
Length:
50 / 55/56/58/60mm
Delivery Time:
2-7 Working Days After Received Payment
Certificate:
CE , ISO, RoHS
Payment Term:
30% Deposit , Balance Paid Before Delivery
Highlight:

3.0mm Quick Assembly Connector

,

0.2db Quick Assembly Connector

,

APC Field Installable Fiber Connector

Product Description
Drop Cable SC APC 0.2db 3.0mm Quick Assembly Connector
Features of Field Installable Fiber Optic Connector
  • Low insertion loss and back reflection loss
  • Ferrule end surface predomed
  • Precision anti-rotation key and corrosion resistant body
  • UL-rated plastic housing
  • Boots in a variety of colors
  • Telcordia style boots
  • Free-floating ceramic ferrule
Availability
All components and final products are designed and tested to conform to the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455.
  • The connector can be supplied as a pre-assembled one-piece connector or as connector kit
  • Clips are available for duplex connectors
  • Housing kits without ferrule are available
Specifications
Parameter Single mode (UPC) Single mode (APC)
Insertion loss ≤ 0.2db ≤ 0.2db
Return loss ≥55db ≥65db
Durability ≤ 0.2db typical change, 1000 times mating
Operating Temperature -45 to +85 degree
Ferrule Hole Sizes 125.0+1/-0um, Concentricity:≤1.0um 125.0+1/-0um, Concentricity:≤0.5um
125.3+1/-0um, Concentricity:≤1.0um 125.3+1/-0um, Concentricity:≤0.5um
125.5+1/-0um, Concentricity:≤1.0um 125.5+1/-0um, Concentricity:≤0.5um
126.0+1/-0um, Concentricity:≤1.0um 126.0+1/-0um, Concentricity:≤0.5um
Standards Compliance
All components and final products conform to IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455 standards.
SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 0 SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 1
Packing
SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 2 SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 3
Quality Control
SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 4
Related Products
SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 5 SC APC Quick Assembly Connector with 0.2db Insertion Loss and Corrosion Resistant UL-rated Plastic Housing 6
Frequently Asked Questions
1. Are you the real factory?
Yes we are the real factory with 16 years history
2. What is your fiber brand?
Fiber brands including YOFC FiberHome, Corning fiber
3. What is your main products?
Fiber optic patch panel, fiber MPO&MTP cassette, MPO&MTP cables, Outdoor fiber optic cables, indoor fiber optic cables, FTTH Drop cables ADSS, Indoor armored patch cords fiber cable, Optical patch cords SC LC FC ST MTP MPO optical patch cords, field installable fiber optic connector and more
4. Product quality guarantee period?
20 years Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products
7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set. There is no MOQ required for fiber optic patch cords, as there's stock for normal kinds
8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly and factory price could be offered
9. Payment
For large orders: T/T. For small orders: T/T and Paypal are acceptable
10. Shipping & Delivery
For large orders: by sea (LCL or FCL). For small orders: by sea (LCL) by air or by courier services, any of which is optional
Tags:
