Quick Assembly Connector

0.3dB Insertion Loss Pre-Stubbed 2.0mm FTTH Fiber Quick Connector with >90N Tensile Strength

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

0.3dB Insertion Loss Pre-Stubbed 2.0mm FTTH Fiber Quick Connector with >90N Tensile Strength

Brand Name:	New Light
Model Number:	NLFC002
MOQ:	100
Price:	0.26~0.7
Packaging Details:	standard packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Type:

Fiber Quick Connector

Application:

Field Assembly

Insert Loss:

≤0.3dB

Storage Temperature:

-40℃ - +85℃

Model Number:

SC / UPC

Tensile Strength:

Suitable For Cable:

0.9 / 2.0 / 3.0

Length:

50 / 55/56/58/60mm

Delivery Time:

2-7 Working Days After Received Payment

Certificate:

CE , ISO, RoHS

Payment Term:

30% Deposit , Balance Paid Before Delivery

Highlight:

FTTH Cable Fiber Quick Connector

2.0mm Cable Fiber Quick Connector

0.3dB Pre Stubbed Cable Connector

Product Description

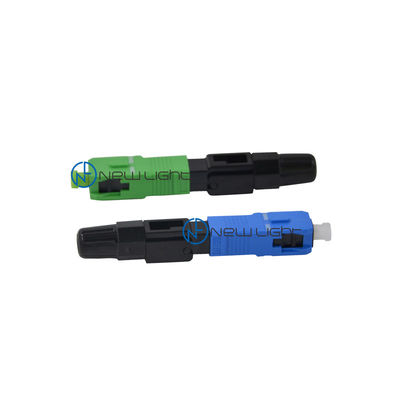

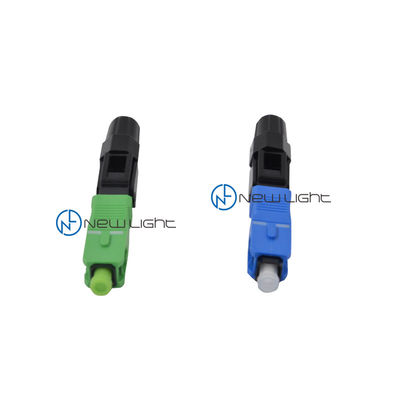

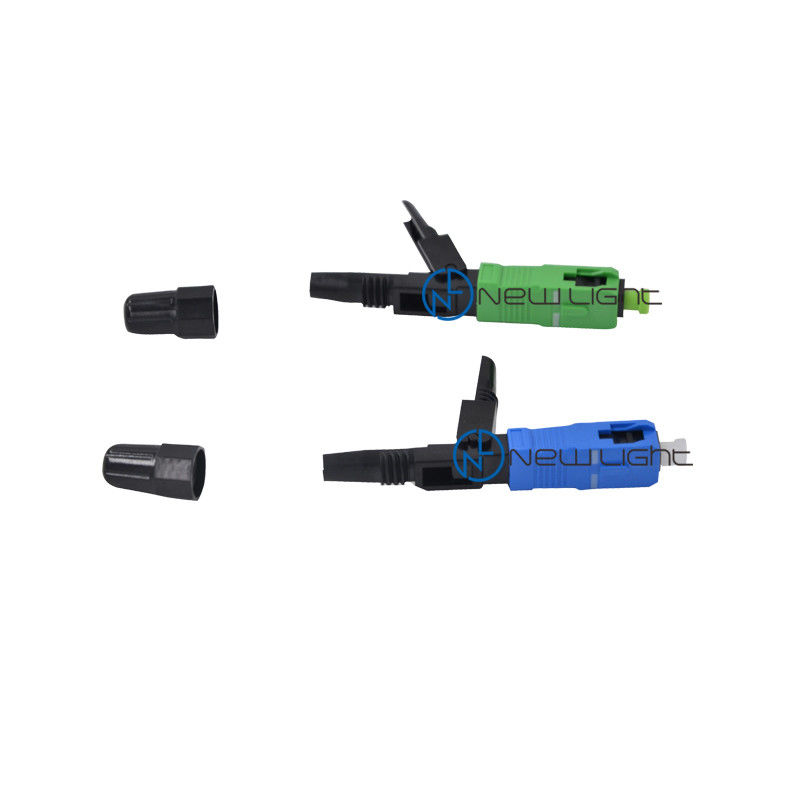

0.3dB Pre Stubbed 2.0mm FTTH Cable Fiber Quick Connector

Features

Pre-stubbed, factory-polished ferrule
No epoxy required
Precision mechanical alignment ensures low loss
Fiber can be reseated
3.0 mm, 2.0 mm and 900 µm boot provided with each connector on the SC and LC connectors only
VFI can be used to confirm fiber is installed properly

Specifications

	Single mode (UPC)	Single mode (APC)
Insertion loss	≤ 0.2db	≤ 0.2db
Return loss	≥55db	≥65db
Durability	≤ 0.2db typical change, 1000 times mating
Operating Temperature	-45 to +85 degree
Ferrule Hole Sizes	125.0+1/-0um, Concertricity:≤1.0um 125.3+1/-0um, Concertricity:≤1.0um 125.5+1/-0um, Concertricity:≤1.0um 126.0+1/-0um, Concertricity:≤1.0um	125.0+1/-0um, Concertricity:≤0.5um 125.3+1/-0um, Concertricity:≤0.5um 125.5+1/-0um, Concertricity:≤0.5um 126.0+1/-0um, Concertricity:≤0.5um

Standards

All components and final products are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455

Packing

Quality Control

More Products

Frequently Asked Questions

1. Are you the real factory?

Yes we are the real factory with 16 years history

2. What is your fiber brand?

Fiber brands including YOFC FiberHome, Corning fiber.

3. What is your main products?

Fiber optic patch panel, fiber MPO&MTP cassette, MPO&MTP cables, Outdoor fiber optic cables, indoor fiber optic cables, FTTH Drop cables ADSS, Indoor armored patch cords fiber cable, Optical patch cords SC LC FC ST MTP MPO optical patch cords, fiber quick connector and so on.

4. Product quality guarantee period?

20 years Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?

Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?

MOQ for Fiber Optic Cable Patch Panel 10 set. There is no MOQ required for fiber optic patch cords, as there's stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now we sell our products to customers directly And factory price could be offered

9. Payment

For large orders: T/T. For small orders: T/T and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL) by air or by courier services, any of which is optional.
