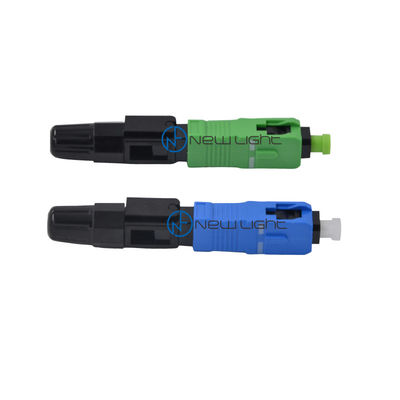

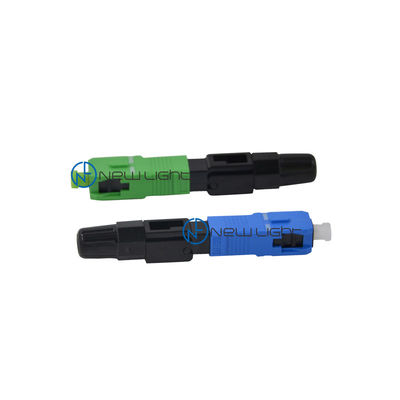

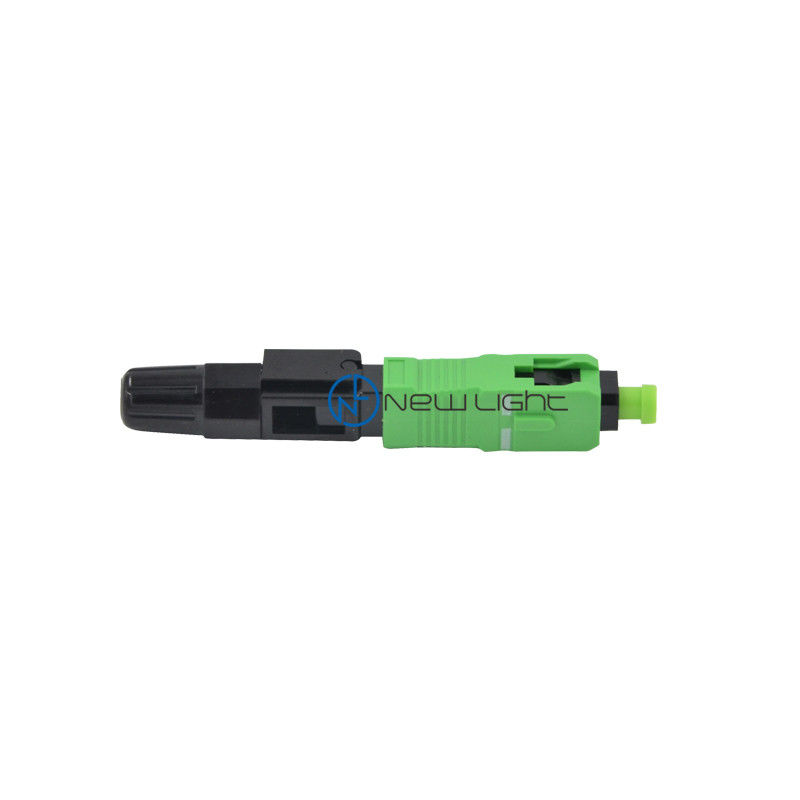

Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation

Brand Name: New Light
Model Number: NLFC002
MOQ: 100
Price: 0.26~0.7
Packaging Details: standard packing
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE , ISO , RoHS
Type:
Fiber Quick Connector
Application:
Field Assembly
Insert Loss:
≤0.3dB
Storage Temperature:
-40℃ - +85℃
Model Number:
SC / UPC
Tensile Strength:
>90N
Suitable For Cable:
0.9 / 2.0 / 3.0
Length:
50 / 55/56/58/60mm
Delivery Time:
2-7 Working Days After Received Payment
Certificate:
CE , ISO, RoHS
Payment Term:
30% Deposit , Balance Paid Before Delivery
Highlight:

UPC Fiber Optic Sc Connector

,

3.0mm Fiber Optic Sc Connector

,

APC Pre Embedded Fiber Connector

Product Description
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector
Features of Fiber Optic SC Connector Termination
  • Can be used as both connector and attenuator
  • Pre-embedded 0.9/2.0/3.0mm fiber optic SC connector termination
  • On-site installation with simple, quick operation (approximately 2 minutes)
  • Pre-embedded optical fiber with pre-polished end face (heat oven processed)
  • No adhesive or polishing process required
  • No hot melt needed - saves power supply
  • High performance and excellent reliability
  • Meets GR-326-CORE standard for mechanical and environmental performance
Specifications of Fiber Optic SC Connector Termination
Parameter Single Mode (UPC) Single Mode (APC)
Insertion loss ≤ 0.2db ≤ 0.2db
Return loss ≥55db ≥65db
Durability ≤ 0.2db typical change, 1000 times mating
Operating Temperature -45 to +85°C
Ferrule Hole Sizes 125.0+1/-0um, Concentricity:≤1.0um
125.3+1/-0um, Concentricity:≤1.0um
125.5+1/-0um, Concentricity:≤1.0um
126.0+1/-0um, Concentricity:≤1.0um 		125.0+1/-0um, Concentricity:≤0.5um
125.3+1/-0um, Concentricity:≤0.5um
125.5+1/-0um, Concentricity:≤0.5um
126.0+1/-0um, Concentricity:≤0.5um
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 0
Standards Compliance

All components and final products are designed and tested to conform to:

  • IEC 60874-7, CECC 86115-801
  • Bellcore/Telcordia GR-326
  • EIA/TIA 604-3A, EIA/TIA 568
  • ISO/IEC 11801
  • Belcore/Telcordia GR-409-CORE
  • IEC 793, IEC 794-1-E1, IEC 794-1-E3
  • UL 1666/901 and EIA/TIA 455
Order Information
  • Connector types: SC/UPC, SC/APC, FC/UPC, FC/APC, ST, LC/UPC, LC/APC
  • Cable types: Drop cable, indoor cable 0.9mm, 2.0mm
  • Connector colors: Blue, Green, Black
  • Fiber types: G652D, G657A1, G657A2
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 1
Packaging
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 2 Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 3
Quality Control
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 4
Related Products
Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 5 Pre Embedded APC UPC 3.0mm Fiber Optic SC Connector for Quick Assembly and Field Installation 6
Frequently Asked Questions
Are you the real factory?
Yes, we are the real factory with 16 years of experience.
What is your fiber brand?
Fiber brands including YOFC FiberHome and Corning fiber.
What is your main products?
Fiber optic patch panel, fiber MPO&MTP cassette, MPO&MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH Drop cables ADSS, indoor armored patch cords fiber cable, optical patch cords SC LC FC ST MTP MPO optical patch cords, and pre-embedded 0.9/2.0/3.0mm fiber optic SC connector termination.
Product quality guarantee period?
20 years guarantee for fiber optic cable.
Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers.
What is your delivery time?
Within 48 hours for normal kinds of fiber optic products.
MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel is 10 sets. There is no MOQ required for fiber optic patch cords as there's stock for normal kinds.
Do you have distributor in other country or domestic?
Until now we sell our products to customers directly and factory price could be offered.
Payment
For large orders: T/T. For small orders: T/T and Paypal are acceptable.
Shipping & Delivery
For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air or by courier services - any of which is optional.
