Male Connector 8 Fiber 3.0mm OM3 MPO Cable Assembly for High-Density Fiber Optic Connections

Brand Name:	New Light
Model Number:	MPO -8*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Product Name:

SS-OP-MPO24-10*DCL-M-15

Connector Type:

MPO- 8*LC

Core Type:

50/125um

Insertion Loss:

Insertion Loss ≤ 0.5dB

Cable Length:

Customized

Fiber Type:

Fiber Count:

8 Fiber

Jacket:

Cable Diameter:

3.0mm

Cable Color:

MPO Type:

Male Type

Supply Ability:

500 pcs per day

Highlight:

OM3 MPO Cable Assembly

3.0mm MPO Cable Assembly

MPO Fiber Breakout Cable

Product Description

Male Connector 8 Fiber 3.0mm OM3 MPO Cable Assembly

Product Overview

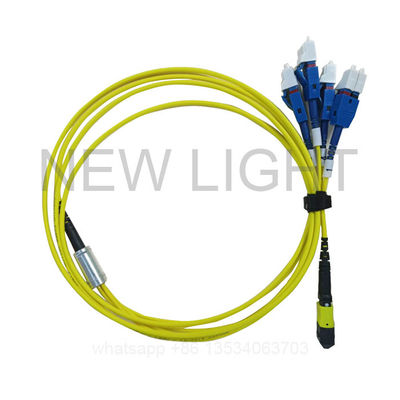

This 8F MPO to LC Breakout Cable is designed for high-density fiber optic connections between MTP/MPO cassettes or equipment with MPO/MTP interfaces. The cable features a male MPO connector with pins for proper mating through MTP couplers.

Key Features

High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Excellent durability and exchangeability
High temperature stability
Available in singlemode and multimode variants

Technical Specifications

Parameter	Specification
Product Name	8F MPO To LC Breakout Cable MM 50/125um Aqua PVC 3.0mm MPO Patch Cable
Mode Type	Multimode
Fiber Count	8 core (4/8/12/16/24/32 core available)
Core Type	50/125um
Cable Color	Aqua (customizable)
Cable Diameter	3.0mm (customizable)
Insertion Loss	≤ 0.5dB
Return Loss	≥25 dB
Wavelength	850/1300nm
Connector Type	Male
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery

Customization Options

Connector type: SC, FC, LC, ST, MPO, MTP, MU, MTRJ, E2000, SMA
Mode type: Single mode (UPC and APC) / Multimode (PC)
Cable diameter: 0.9mm, 2.0mm, 3.0mm (custom diameters available)
Coating material: PVC or LSZH
Fiber count: Simple, duplex, 4-96 cores and beyond
Cable type: G652D, G657A1, G657A2, G655, OM1, OM2, OM3-150, OM3-300, OM4, OM5
MPO/MTP connector options: A/B/C type, male/female, various fiber counts

Frequently Asked Questions

Are you a manufacturer of fiber products?

Yes, we are a manufacturer based in Shenzhen, China specializing in MPO fiber breakout cables, patch cords, pigtails, fiber adapters, attenuators, PLC splitters, WDM devices, and 1U boxes.

What's your minimum order quantity?

MOQ is 1 piece, though larger quantities receive more competitive pricing.

What's the lead time?

Regular products: 2-15 working days depending on quantity. Urgent orders accommodated.

Do you offer samples?

Free samples available for adapters, attenuators, patch cords, and pigtails (customer pays shipping).

Do you support OEM/ODM?

Yes, all products support OEM/ODM with confidentiality agreements available.

Packing Reference

WhatsApp: +8613534063703
