50/125um 3.0mm PVC Jacket MPO to LC Breakout Cable for High-Density Fiber Optic Networks

Brand Name:	New Light
Model Number:	MPO -12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Product Name:

SS-OPMPO12-4*DLCM

Connector Type:

MPO- 8*LC

Core Type:

50/125um

Insertion Loss:

Insertion Loss ≤ 0.5dB

Cable Length:

Customized

Fiber Type:

Fiber Count:

8 FIBER

Jacket:

Cable Diameter:

3.0mm

Cable Color:

MPO Type:

Male Type

Supply Ability:

500 pcs per day

Highlight:

3.0mm Cable MPO Breakout Fibers

PVC Jacket MPO Breakout Fibers

125um Fiber Optic Patch Cords

Product Description

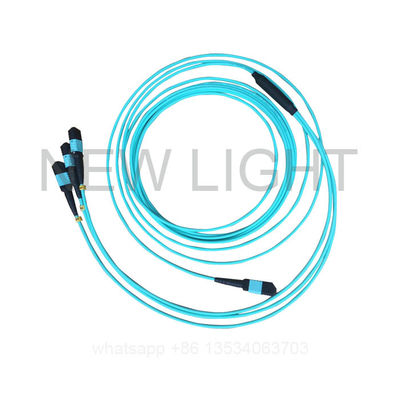

MPO Breakout Fiber Optic Patch Cords

Breakout fibers are engineered to flexibly allocate bandwidth resources to routers. These cables work in conjunction with breakout optical modules to convert MPO interfaces into multiple LC interfaces, streamlining fiber layout and installation.

The breakout functionality is particularly valuable in scenarios where bandwidth resources require uneven allocation between routers at different hierarchy levels. Compared to traditional breakout boxes, breakout fibers offer superior flexibility and extended cabling distance capabilities.

For optimal performance with breakout optical modules (multimode configurations with short transmission distances), use MPO-LC fibers to establish direct connections between boards and optical modules.

Key Features

High fiber density (24 fibers for multimode configurations)
Low insertion loss and reflection loss
Exceptional durability and longevity
Excellent exchangeability between systems
High temperature stability for reliable operation

Important Usage Note

When deploying breakout optical fibers, insert the X1 end into a 40GE QSFP+ optical module and the X2 end into four 10GE interfaces. If the 40GE interface shows as Down while the four 10GE interfaces remain Up, verify the following:

Confirm the 40GE interface supports breakout functionality
Ensure the 40GE interface is configured in breakout state

Technical Specifications

Parameter	Specification
Product Name	8F MPO To LC Breakout Cable MM 50/125um Aqua PVC 3.0mm MPO Patch Cable
Mode Type	Multimode
Cable Count	8 core (configurable: 4/8/12/16/24/32 core)
Core Type	50/125um
Cable Color	Aqua (customizable)
Cable Diameter	3.0mm (customizable)
Insertion Loss	≤ 0.5dB
Return Loss	≥25 dB
Wavelength	850/1300nm
Connector Type	Male
Connector Color	Aqua (Aqua/Magenta/Beige available)
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	2-15 working days (quantity dependent)

MPO-LC Fiber Structure

Customization Options

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single mode (UPC and APC) / Multimode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customized to requirements
MPO/MTP Configuration: Specify method (A/B/C type), gender (male/female), fiber count

Direct Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer of fiber products?

Yes, we are a manufacturer based in Shenzhen, China. Our product range includes MPO fiber breakout cables, patch cords, pigtails, fiber optic adapters, attenuators, PLC splitters, WDM components, and 1U boxes.

What's your MOQ?

Minimum order quantity is 1 piece, though we recommend larger quantities for better pricing efficiency.

What's the price?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements and order volume.

How is your quality?

Our manufacturing follows IEC and European standards in near dust-free environments using imported production and quality control equipment. All products undergo 100% testing before shipment.

What's your lead time?

With three specialized factories in China, we can process 5,000 patch cords within 2-3 working days. Standard products are typically in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords carry a 2-year warranty covering non-artificial damage. For artificial damage, we provide free repairs with customer responsibility for shipping costs.

Can you do OEM/ODM?

Yes, we support both OEM and ODM services and can execute confidentiality agreements as needed.

Packing Reference
