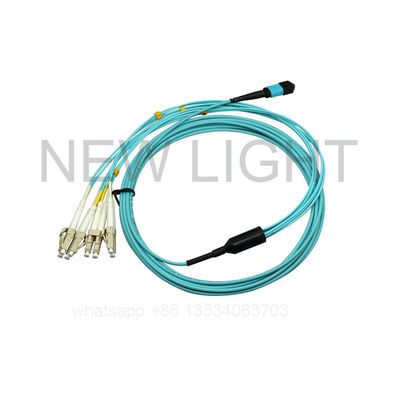

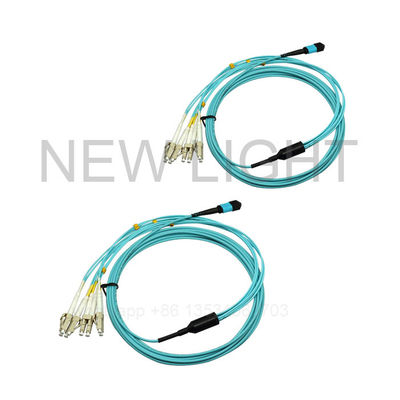

12F Female to Male MTP Trunk Cable with 3.5mm PVC Jacket for OM3 OM4 Compatibility

Brand Name:	New Light
Model Number:	MPO -12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Product Name:

MTP® Femaile To Male Trunk Cable

Connector Type:

MPO- 12*LC

Core Type:

50/125um

Insertion Loss:

Insertion Loss ≤ 0.35dB

Cable Length:

Customized

Fiber Type:

Fiber Count:

12/24 FIBER

Jacket:

Cable Diameter:

3.5mm

Cable Color:

MPO Type:

Male Type

Supply Ability:

500 pcs per day

Highlight:

OM4 MPO MTP Cable

12F MPO MTP Cable

Female To Male MTP Cable

Product Description

PVC Jacket 12F Female To Male 3.5mm OM3 OM4 MPO MTP Cable

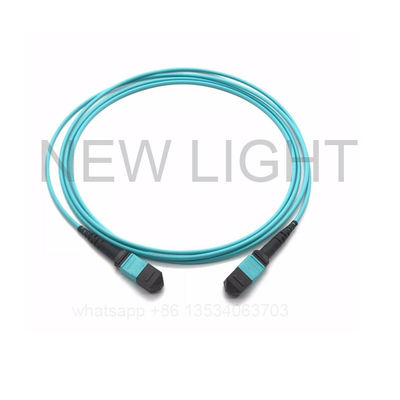

Pre-connector MTP® Trunk Cable Assemblies consist of 12, 24, or 48 fiber LSZH jacketed micro cables terminated at both ends with MTP® Connectors (without pins). These assemblies serve as backbone or horizontal cable interconnections, offering plug-and-play solutions with micro core cable that maximizes bend radius while minimizing cable weight and size.

Factory pre-terminated, tested, and packaged with test reports, MTP® Trunk Cables are available in OM3, OM4, and SM fiber types. Standard lengths include 5, 10, and 25 meters, with custom lengths available upon request. Cables are packed as coils up to 50m long or on reels. OM3 and OM4 cables feature aqua jackets, while SM cables are yellow.

Key Features

High Performance in Insertion Loss & Return Loss
Available in 8, 12, and 24 fiber configurations
Precise dimensional accuracy
100% in-house tested for quality assurance
Customized furcation length for various installation scenarios
Single-fiber connector interfaces available in SC & LC (Simplex or Duplex)
Supports high-speed Ethernet and Fibre Channel applications (OM3, OM4, and SM fibers)

Technical Specifications

Parameter	Specification
Product Name	12F MPO To LC Breakout Cable SM or 50/125um Aqua
Mode Type	Multi-mode
Cable Count	8 core (can be 4/8/12/16/24/32 core)
Core Type	50/125um
Cable Color	Aqua (customizable)
Cable Diameter	3.0/3.5mm (customizable)
Insertion Loss	≤ 0.5dB
Return Loss	≥ 25 dB
Wavelength	850/1300nm
Connector Type	Male
Connector Color	Aqua (Aqua/Magenta/Beige available)
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery
Delivery Time	2-15 working days (based on quantity)

Ordering Information

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi-mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (customizable)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customizable to requirements
MPO/MTP connector specifications: Method (A/B/C type), male/female, fiber count (4/8/12/16/24/32 fiber)

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer of fiber products?

A: Yes, we are a manufacturer in Shenzhen, China. Our main products include MTP® Female to Male Trunk Cable, Patch Cord/Pigtails, Fiber Optical Adapters, Attenuators, PLC Splitters, WDM, 1U Boxes, and more.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX) due to product size. EXW or CFR pricing is preferred. We offer competitive freight solutions for all order sizes.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: With three factories in China, we maintain 2-3 working days for 5,000 patch cords. Regular products are in stock, and we accommodate urgent orders.

Q: What's your warranty?

A: Patch cords include a 2-year warranty for non-artificial damage. We repair artificial damage free of charge (customer pays freight).

Q: What's your packing?

A: We use international export packaging with optional logo printing available.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign Confidentiality Agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Higher-value products require sample charges refundable with orders.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a Proforma Invoice. Production begins after payment confirmation.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. Large orders: 50% deposit, 50% balance before delivery.

Packing Reference
