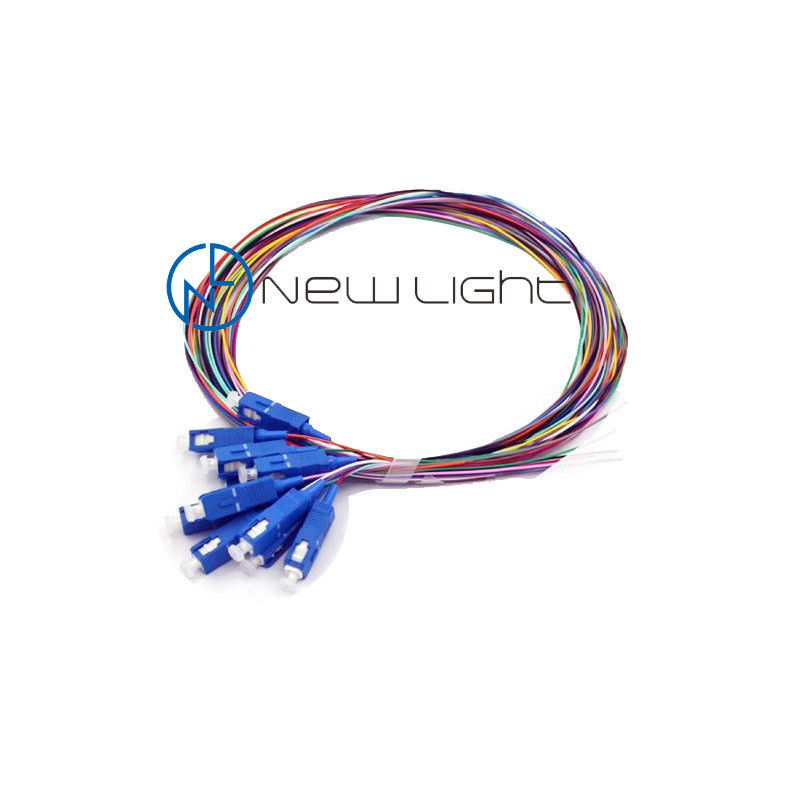

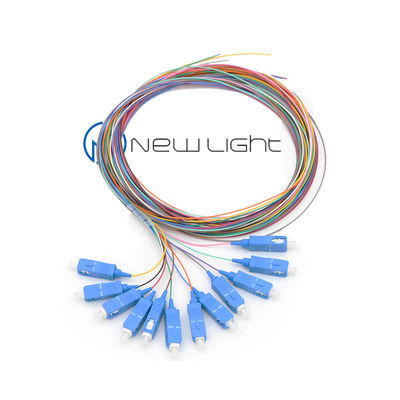

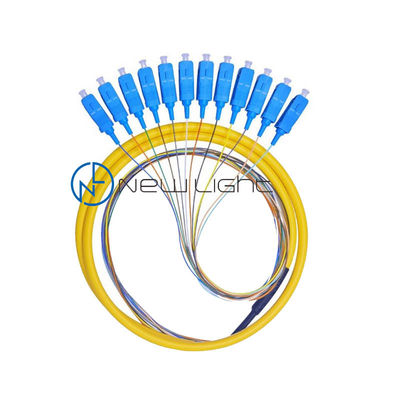

10G Speed 12 Core Loose Buffer Multimode Fiber Optic Pigtail with LC ST SC Connectors

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

Multimode Fiber Pigtail

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

MM ,SM

Cable Color:

Yellow

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

Loose Buffer Multimode Fiber Pigtail

10G LC Multimode Fiber Pigtail

12core Loose Buffer Optic Pigtail

Product Description

10G LC ST SC 12-Core Loose Buffer Multimode Fiber Pigtail

10G LC ST SC 12-core bundle loose buffer multimode fiber pigtail designed for high-speed network installations in LAN enterprise and data center applications.

Multimode fiber is the preferred solution for achieving 10 Gbit/s speeds over distances required by modern network infrastructure. With various multimode fiber types available (OM1, OM2, OM3, OM4, OM5), our technical team can help you select the most suitable option for your specific requirements.

Technical Support: WHATSAPP 008613534063703

Applications

CATV Systems
Telecommunication Networks
Active Device Termination
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Premise Installations
Wide Area Networks (WANs)

Product Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with Telcordia GR-326-CORE standard
Available connector options: LC, SC, FC, ST, MT-RJ, MTP®
RoHS compliant indoor, outdoor (loose tube), indoor/outdoor and ribbon cables

Technical Specifications

Specification	S.M PC	S.M UPC	S.M APC	M.M
Insertion Loss (dB)	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss (dB)	≥50dB	≥55dB	≥60dB	-
Durability (1000 matings)	≤0.20dB
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Cable Diameter (mm)	0.9 / 2.0 / 3.0
Cable Length (m)	1M, 2M, 3M, 5M, Customized

Fiber pigtails are specifically designed for splice applications when terminating outside plant cable. Each pigtail consists of a connector and a specified length of fiber optic cable.

Multimode Fiber Technology

Multimode fiber (MMF) is primarily used for short-distance communication applications, such as within buildings or across campus networks. With a larger core diameter (typically 50 or 62.5 microns), multimode fiber optic cable enables multiple light modes to propagate simultaneously, allowing more data transmission through the core at any given time.

The maximum transmission distance for MMF cable is approximately 550 meters at 10Gbit/s speeds, with extended reach capabilities at lower data rates (up to 2km at 100Mb/s).

Frequently Asked Questions

Are you the real manufacturer?

Yes, we are the actual manufacturer with 15 years of industry experience.

What's the minimum order quantity?

The MOQ for fiber optic cable is 1 kilometer.

What's the delivery time?

Standard delivery time is 5-7 days after order confirmation, depending on order quantity.

How to store optical fiber cable properly?

Store cable drums indoors before use, placing them sideways rather than on end.

Can you supply customized products and logos?

Yes, we provide OEM services. Please send us your specifications and requirements.

What are your payment terms?

We accept T/T, L/C, Western Union, D/P, etc. Standard terms: 30% deposit in advance, 70% balance paid before shipment.

Ordering & Shipping Information

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard packaging (OPP bag + Carton Box)
Delivery Time: 2-7 working days after payment receipt (depending on quantity)
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, FedEx) or by sea (according to requirements)
