OM3 10Gb LC UPC-LC APC Duplex Optical Fiber Patch Cord for FTTB Network

Brand Name:	New Light
Model Number:	LC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Optical Fibre Patch Cords

Connector:

LC UPC- LC APC

Fiber Type:

Duplex

Length:

Any Length

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC And APC

Real Factory:

Application:

FTTH FTTB FTTX Network

Supply Ability:

1000000

Highlight:

FTTB Optical Fibre Patch Cords

OM3 Optical Fibre Patch Cords

UPC Duplex Patch Cord

Product Description

OM3 10Gb Duplex UPC FTTB Optical Fibre Patch Cords

OM3 10Gb 50/125 LC to LC multimode duplex Optical Fibre Patch Cords with LS0H jacketed standard. PVC and Plenum rated cables available upon request.

Product Overview

New Light's Optical Fibre Patch Cords offer factory-controlled performance in various connector types, ISO performance standards, and lengths. Special attention to end-face geometry and fiber core alignment ensures reliability and optimized performance.

Key Benefits

100% Factory Tested – Guaranteed performance
LS0H Jacket Standard – Reduces toxic/corrosive gases emitted during combustion
Multiple Formats Available - Simplex, Duplex, Singlemode, Multi Mode with various connector options

Standards Compliance

ISO/IEC 1108:2008, ANSI/TIA/EIA 568.C.3, ANSI/TIA/EIA-492, TELECOR DIA GR-409, ICEA-5

Product Features

High quality zirconia ferrules
Excellent repeatability and interchangeability
Available connectors: LC, SC, ST, FC, LSH, MTRJ, MU
Flame-retardant, rugged and durable jacket
Clear printing for cable identification
Available fiber types: OS2, OM4, OM3, OM2, OM1, OM5
Factory terminated and tested for insertion loss, return loss and end face

Technical Specifications

Physical Characteristics

Parameter	Description
Connector Types End A	LC/SC/ST/FC/LSH/MU/MTRJ
Connector Types End B	LC/SC/ST/FC/LSH/MU/MTRJ
Polish type	SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC; MMF: UPC-UPC
Connector Ferrule	Zirconia Ceramic
Cable Diameter	Duplex: 2.0/3.0mm; Simplex: 0.9/2.0/3.0mm
Interchangeability	≤ 0.2dB
Minimum Bend Radius	SMF: 10mm; MMF: 7.5mm/15mm

Mechanical Characteristics

Parameter	Description
Fiber type	OS2/OM5/OM4/OM3/OM2/OM1
Fiber count	Duplex / Simplex
Cable Jacket	PVC (Riser/OFNR)/LSZH/Plenum (OFNP)
Jacket Color	OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow
Fiber Grade	OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651

Optical Characteristics

Parameter	Specification
Connector Insertion Loss	LC/SC/ST/FC/LSH/MU/MTRJ ≤ 0.3dB
Connector Return Loss	SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ)
Attenuation at 1310nm	0.36dB/km
Attenuation at 1550nm	0.22dB/km
Attenuation at 850nm	3.0dB/km
Attenuation at 1300nm	1.0dB/km

Environmental Characteristics

Parameter	Specification
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 80°C

Ordering Information

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: single mode (UPC and APC) / multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: customized to requirements
MPO/MTP connector specifications: method (A/B/C type), male/female, fiber count (4/8/12/16/24/32 fiber)

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces due to higher costs.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger quantities.

Q: Can you quote FOB price?

A: We prefer EXW or CFR pricing due to product size. We offer competitive freight solutions.

Q: How is your quality?

A: We follow IEC and European standards with imported equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: 2-3 working days for 5000 pieces. Regular products are in stock for urgent orders.

Q: What's your warranty?

A: 2-year warranty for non-artificial damage. Free repair for artificial damage with customer-paid freight.

Q: What's your packing?

A: International export packaging with optional logo printing available.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. Sample charges apply for high-value products.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice. Production begins after payment confirmation.

Q: What's your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% before delivery.

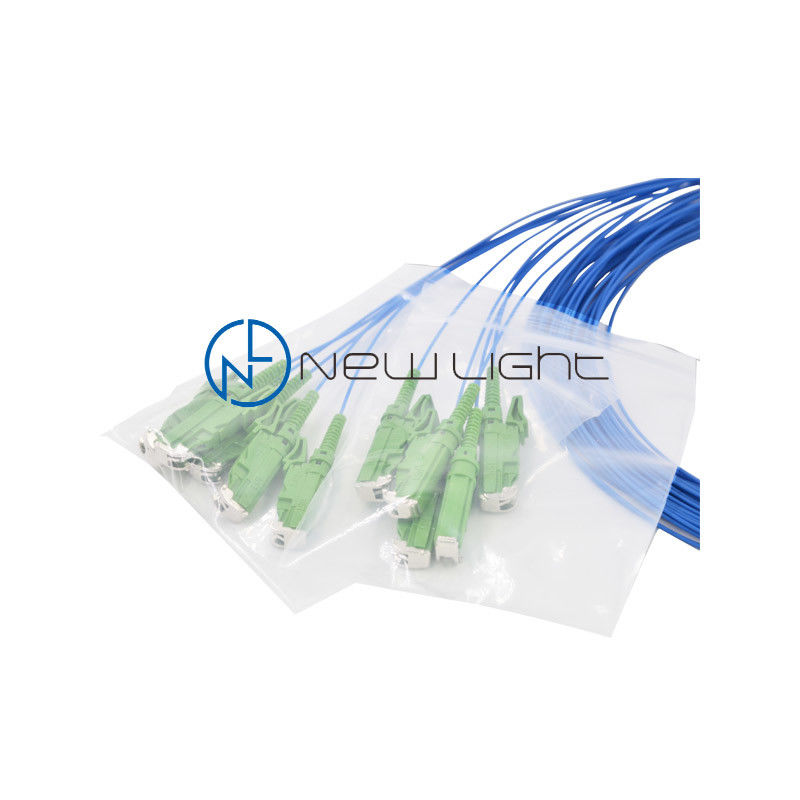

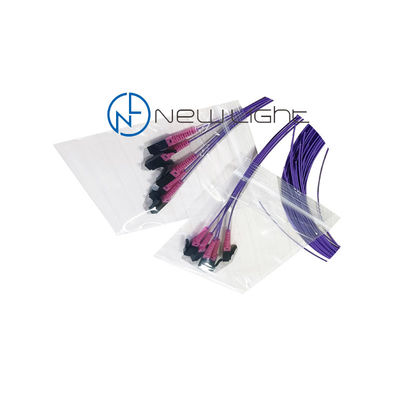

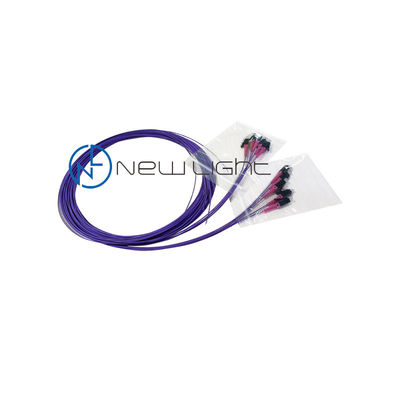

Packaging Reference
