Product Details:
|
Product Name: | Optical Fibre Patch Cords | Connector: | LC UPC- LC APC |
---|---|---|---|
Fiber Type: | Duplex | Length: | Any Length |
Insertion Loss: | ≤0.3dB | Wavelength: | 1310nm / 1550nm |
Quality Control: | 100% Test Before Shipping | Return Loss: | ≥50dB |
Polish: | UPC And APC | Real Factory: | Yes |
Application: | FTTH FTTB FTTX Network | ||
Highlight: | FTTX Fiber Patch Cables,FO Fiber Patch Cables,OS2 Single Mode Optical Cable |

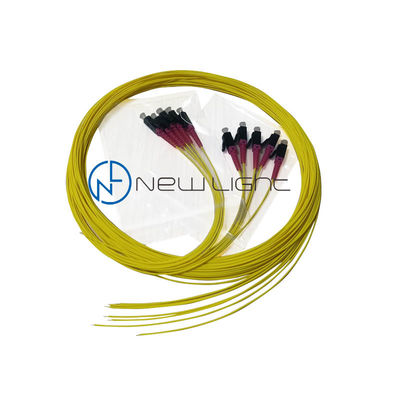

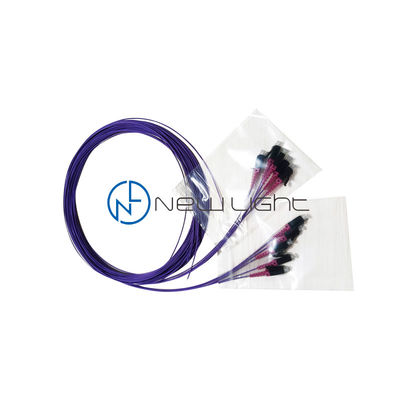

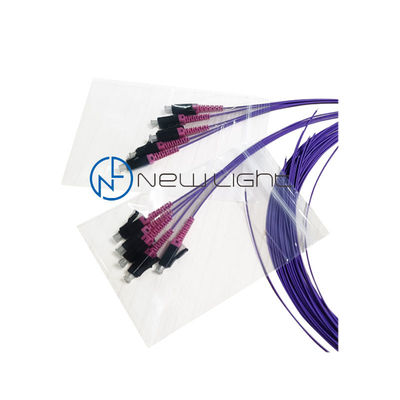

OS2 single mode E9/125 OS2 LC/APC FO Standard Fiber Patch Cables
FO Standard Fiber Patch Cables are used to cross-connect installed cables and connect communications equipment to the cable plant. The choice of patchcords is very important to the performance of the network. Choose patchcords with these criteria:
Fiber type must match the type of fiber in the cable plant. For multimode cable, use only 50/125 patchcords with 50/125 fibers in cables and 62.5/125 patchcords with 62.5/125 fibers in cables. Although there are several types of each size fibers, matching the fiber type exactly is generally not required, e.g you can use OM3 patchcords on OM2 or OM4 cable plants. Singlemode fiber is mostly the same, but some long distance fibers have different mode field diameters and should use patchcords with matching fibers.
The performance of a fiber optic network (and copper networks too) can be undermined the performance of the patchcords used for interconnects and connecting communications equipment. But it's easy to take patchcords for granted. They are inexpensive, often not tested properly if at all, and sometimes treated badly.
Most users buy patchcords in bulk and store them in boxes until they are needed, when they are unpackaged and plugged in. Some users hang them on the sides of the equipment racks. That's not how they should be handled.
Application range of FO Standard Fiber Patch Cables
For indoor use LAN connections
Data Centers Distributor cabinet
Product features of FO Standard Fiber Patch Cables
Outer sheath flame-retardant and halogen-free
High flexibility Cable termination with durable ceramic ferrules
Pre-assembled connectors:
-Low insertion loss
-High return loss
Features of FO Standard Fiber Patch Cables
• High quality zirconia ferrules.
• Good repeatability and interchangeability.
• LC, SC, ST, FC, LSH, MTRJ, MU connectors
are available.
• Flame-retardant, rugged and durable
jacket.
• Printing helps clarify and recognize
different cables.
• OS2, OM4, OM3, OM2, OM1, OM5 are
available.
• Factory terminated and tested for
insertion loss, return loss and end face.
Technical Specification of Optical Fibre Patch Cords
Physical Characteristics | Description |
Connector Types End A | LC/SC/ST/FC/LSH/MU/MTRJ |
Connector Types End B | LC/SC/ST/FC/LSH/MU/MTRJ |
Polish type | SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC; MMF: UPC-UPC |
Connector Ferrule | Zircomia Ceramic |
Cable Diameter | Duplex:2.0/3.0mm ; Simplex:0.9/2.0/3.0mm |
Interchangeability | ≤ 0.2dB |
Minimum Bend Radlus |
SMF: 10mm; MMF: 7.5mm/15mm |
Mechanical Characteristics of fiber optic patch cords
Fiber type | OS2/OM5/OM4/OM3/OM2/OM1 |
Fiber count | Duplex /Simplex |
Cable Jacket | PVC (Riser/OFNR)/LSZH/Plenum (OFNP) |
Jacket Color | OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow |
Fiber Grade | OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651 |
Optical Characteristics of Optical Fibre Patch Cords
Connector Insertion Loss | LC/SC/ST/FC/LSH/MU/MTRJ≤0.3dB |
Connector Return Loss | SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ) |
Attenuation at 1310nm | 0.36dB/km |
Attenuation at 1550nm | 0.22dB/km |
Attenuation at 850nm | 3.0dB/km |
Attenuation at 1300nm | 1.0dB/km |
Environmental Characteristics
Operating Temperature | -20~70℃ |
Storage Temperature | -40~80℃ |
How to order Optical Fibre Patch Cords
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with product price for your reference.
We have a very competitive price shipping forwarder. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with an urgent order for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /ODM. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first. after you placed an order, the sample charge will be returned.
11. Q: How can I order?
A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.
2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make a Proforma Invoice with our bank account.
4. We will arrange the production for you after we received the payment.
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.
6. We will try our best to meet your requirements for long-term cooperation.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
