SC APC Connector Fiber Optic Pigtail with 1310nm Wavelength and Low Insertion Loss for FTTH Networks

Brand Name:	New Light
Model Number:	LC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

FOA Patch Cables

Connector:

SC UPC- LC APC

Fiber Type:

Duplex

Length:

Any Length

Insertion Loss:

≤0.3dB

Wavelength:

1310nm / 1550nm

Quality Control:

100% Test Before Shipping

Return Loss:

≥50dB

Polish:

UPC And APC

Application:

FTTH FTTB FTTX Network

Supply Ability:

1000000

Highlight:

SC APC Fibre Optic Pigtail

OFNP Fibre Optic Pigtail

OFNR Single Mode Patch Cord

Product Description

OS2 Single Mode OFNR OFNP SC APC Fibre Optic Pigtail

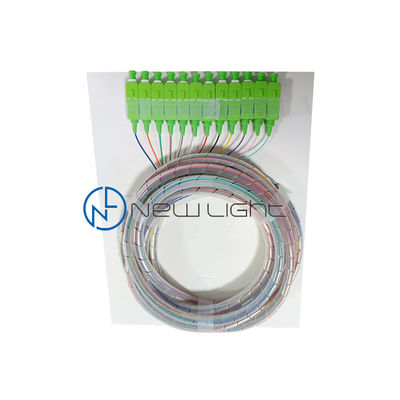

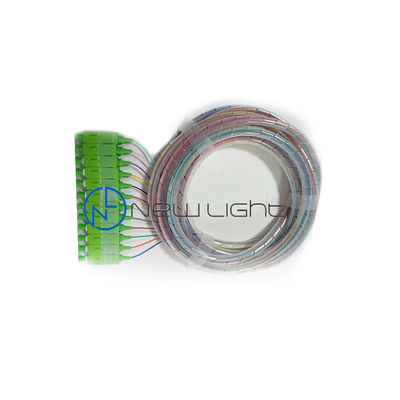

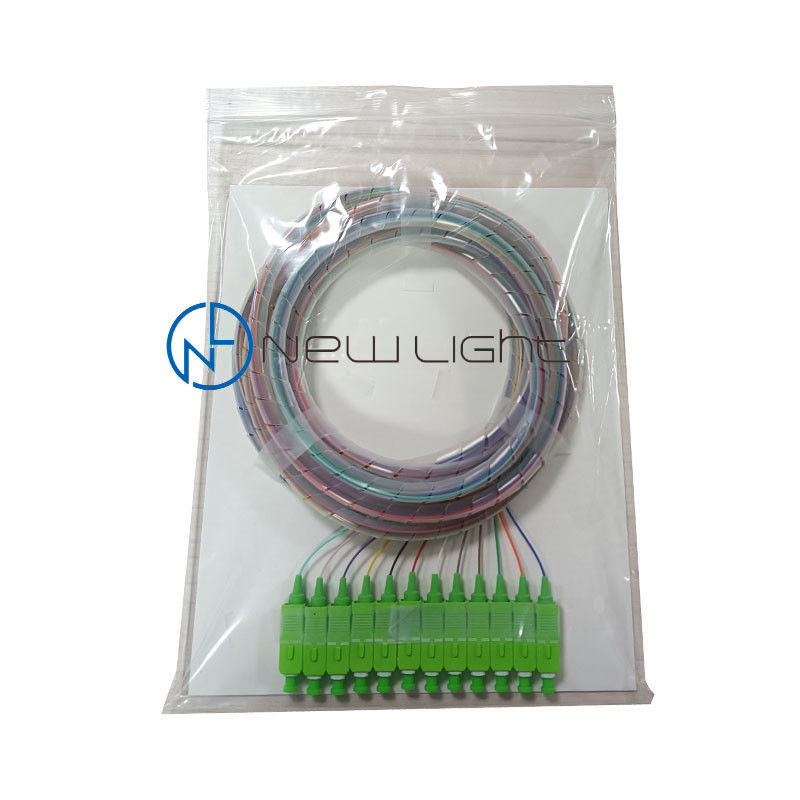

12-color OS2 single mode OFNR/OFNP SC APC fibre optic pigtail designed for professional telecommunications applications. These single mode colored 12-core SC/APC pigtail cables (G652/G655/G657A) are engineered for splice applications when terminating outside plant cable.

Each pigtail consists of a connector and a special length of fiber cable, meeting Telcordia GR-326 Core and ROHS requirements. All OMC pigtails undergo factory inspection and testing, with interferometer data available upon request.

Optimax Connector Technology

Optimax Connectors are the preferred choice for high-speed optical networks including 10-Gigabit Ethernet. This industry-leading solution addresses the challenges of field connectorization for optical fiber networks without requiring epoxy, curing, or polishing.

The unique design incorporates a factory-mounted fiber stub and premium zirconia ceramic ferrule with physical contact (PC) polish for multimode and super physical contact (SPC) polish for singlemode. The superior ferrule construction ensures low loss, low reflectance characteristics and optimal performance for high-bandwidth optical transmissions.

Key Features

Low insertion loss and low back reflection loss
Flexible and easy-to-strip fiber buffering
Identifiable fiber buffer colors under all lighting conditions
Reduces installation time significantly
Prevents incorrect patching by eliminating fiber flipping
Clean and scratch-free end face
Proportional geometric testing applied to normal production
100% interferometer check available upon special request

Compliance Standards

LC Connectors: Comply with IEC standard 61754-20
SC Connectors: Comply with IEC standard 61754-4

Technical Specifications

Physical Characteristics

Parameter	Description
Connector Types End A	LC/SC/ST/FC/LSH/MU/MTRJ
Connector Types End B	LC/SC/ST/FC/LSH/MU/MTRJ
Polish Type	SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC; MMF: UPC-UPC
Connector Ferrule	Zirconia Ceramic
Cable Diameter	Duplex: 2.0/3.0mm; Simplex: 0.9/2.0/3.0mm
Interchangeability	≤ 0.2dB
Minimum Bend Radius	SMF: 10mm; MMF: 7.5mm/15mm

Mechanical Characteristics

Parameter	Description
Fiber Type	OS2/OM5/OM4/OM3/OM2/OM1
Fiber Count	Duplex/Simplex
Cable Jacket	PVC (Riser/OFNR)/LSZH/Plenum (OFNP)
Jacket Color	OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow
Fiber Grade	OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651

Optical Characteristics

Parameter	Specification
Connector Insertion Loss	LC/SC/ST/FC/LSH/MU/MTRJ ≤ 0.3dB
Connector Return Loss	SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ)
Attenuation at 1310nm	0.36dB/km
Attenuation at 1550nm	0.22dB/km
Attenuation at 850nm	3.0dB/km
Attenuation at 1300nm	1.0dB/km

Environmental Characteristics

Parameter	Specification
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 80°C

Ordering Information

When ordering optical fibre patch cords, please specify the following parameters:

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customized to your requirements
MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces due to higher costs. Larger quantities receive more competitive pricing.

Q: What's the price?

A: Pricing depends on quantity. We provide our best pricing after receiving your quantity requirements. Bulk quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX). We recommend providing detailed specifications and quantity for comprehensive pricing including freight. For large quantities, we can provide sea freight options. EXW or CFR pricing is typically more suitable.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment, with 100% testing before delivery.

Q: What's your lead time?

A: We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock, and we accommodate urgent orders.

Q: What's your warranty?

A: Patch cords include a 2-year warranty from delivery for non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

Q: What's your packing?

A: We use international export packaging and can print your logo on packaging upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refunded with order placement.

Q: How can I order?

Contact us with product name, specifications, quantity, and shipping address
We provide pricing and lead time based on your requirements
Upon acceptance, we issue a Proforma Invoice
Production begins after payment receipt
We confirm shipping details and provide tracking after delivery
We prioritize long-term partnership satisfaction

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
